Cable installation 29
Model 3196RC T-DAC User Manual 2 • Hardware installation
Connecting to the T1/E1 WAN ports
An active T1/E1 is not necessary to configure the T-DAC. However, an active T1/E1 connection is required
when mapping iDSL modems to specific time slots in the T1/E1 ports or even for mapping WAN time slots to
other WAN time slots. The factory-set default configuration of the Model 3196RC has the T1/E1 ports disabled.
Note The cable connecting the T1/E1 WAN ports to the RJ-48C termina-
tion jack should be CAT-3 or higher and extend no farther than
1 mile (1.6 km) from the digital services termination.

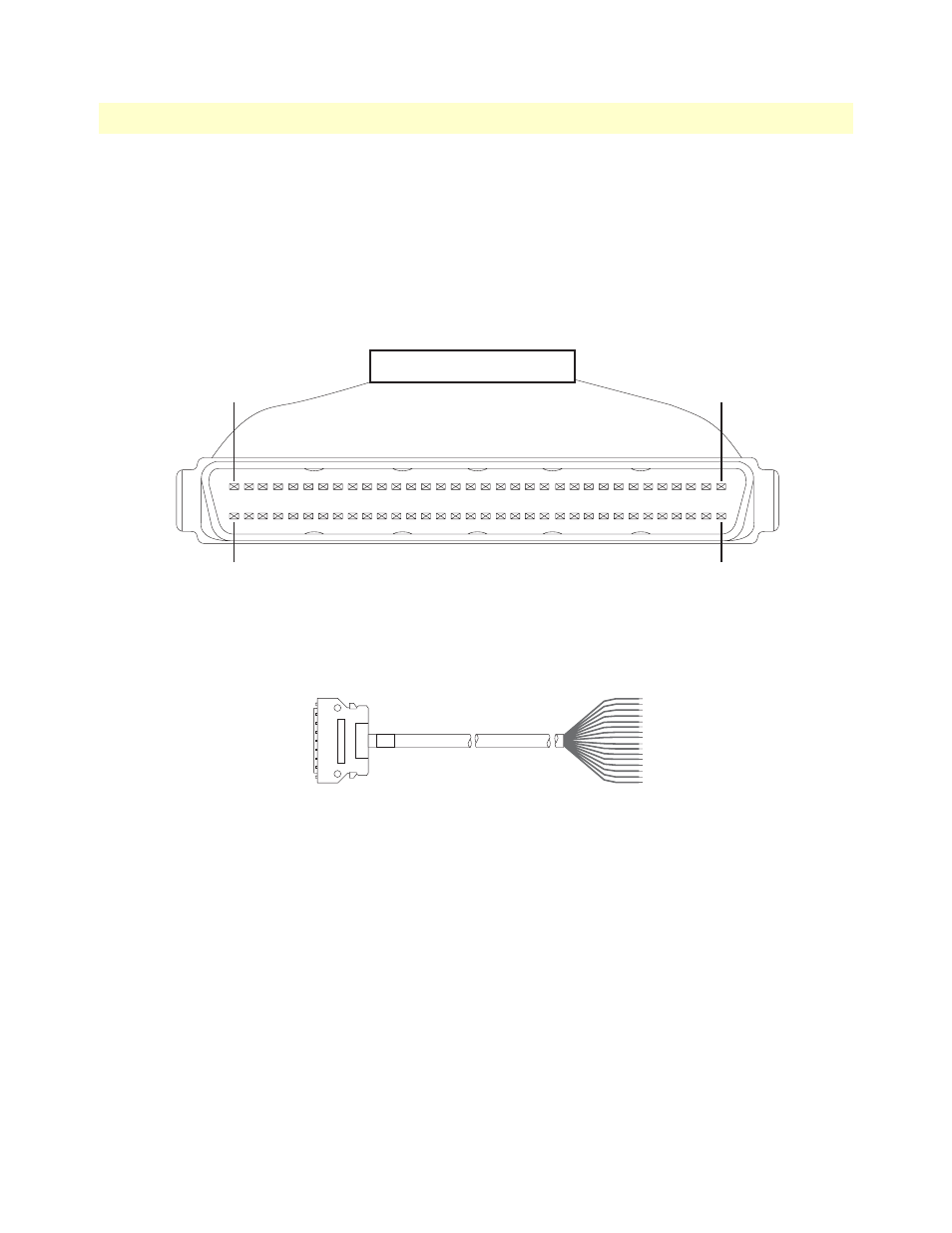

Figure 10. WAN cable‘s 68-pin SCSI connector
1. Connect the 68-pin SCSI connector (see figure 10 ) of the 6-foot WAN cable (see figure 11 ) to the connec-
tor on the rear panel of the Model 3196RC
Figure 11. 68 pin SCSI-to-RJ45 6-foot WAN cable
68
34
AMP 749621-7 (or equivalent)
35
Pin 1
