A---44 Powerware 9330 (10 kVA--40 kVA) Installation and Operation
164201300 REV. G 061502
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVISION: F
4 of 5
111501

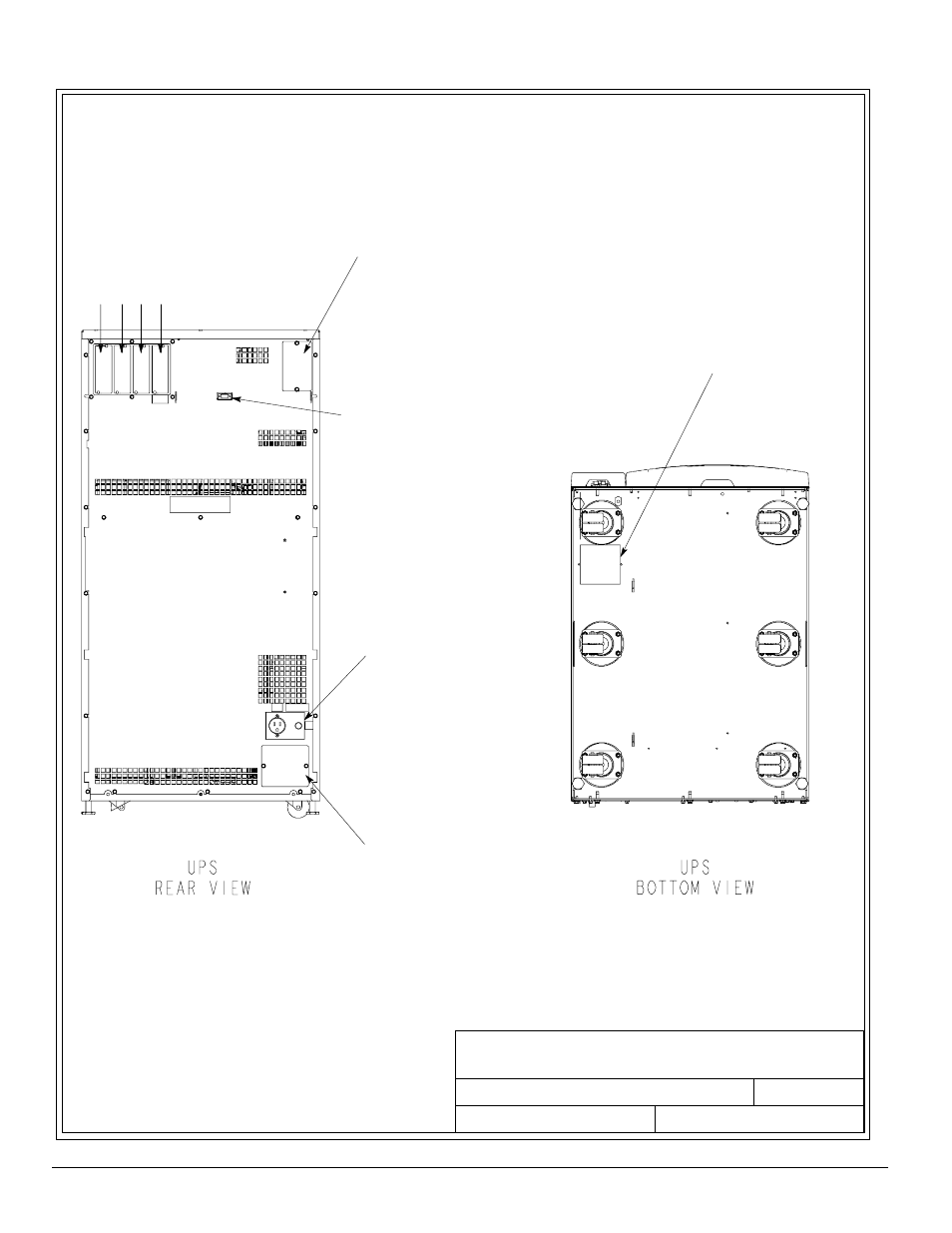

LOCATION OF UPS CABINET TERMINALS
164201300---8
UPS CABINET CUSTOMER INTERFACE TERMINALS
X---SLOT DEVICE
INTERFACE PANELS
BOTTOM ENTRY CONDUIT
LANDING FOR AC INPUT AND
OUTPUT CONNECTIONS
(REMOVE PANEL TO DRILL
OR PUNCH CONDUIT
HOLES.)
X1 X2 X3 X4
CUSTOMER
CONVENIENCE
OUTLET FOR MODEM
120VAC, 0.2 AMP
SERIAL PORT
POWERWARE 9330 (10 kVA--20 kVA)
CUSTOMER INTERFACE
CONDUIT LANDING PLATE
(REMOVE PANEL TO DRILL
OR PUNCH CONDUIT
HOLES.)
REAR ENTRY CONDUIT
LANDING FOR AC INPUT AND
OUTPUT AND REMOTE
BATTERY CONNECTIONS
(REMOVE PANEL TO DRILL
OR PUNCH CONDUIT
HOLES.)
