Front Panel Menus
41 Powerware ® 5140 User’s Guide
:
www.powerware.com
Comm (Communications) Setup
Use this option to set up the UPS for serial communication. Select Serial
Port 1 or Serial Port 2 and then select values for the following options:
:
Baud rate - select 1200, 2400, 4800, 9600, or 19200
:
Data bits - select 7 or 8
:
Stop bits - select 1 or 2
:
Parity - select Odd, Even, None, Mark, or Space
:
Assigned Segs - select the individual load segment to assign or disable
that segment for the selected serial port (see Figure 25).
Select Serial Port 1 or Serial Port 2.
Then select the Assigned Segs option.
This example shows that Serial Port 1
controls Load Segment 3.
Scroll down and select a load segment
to assign or disable the load segments
for the specified serial port.

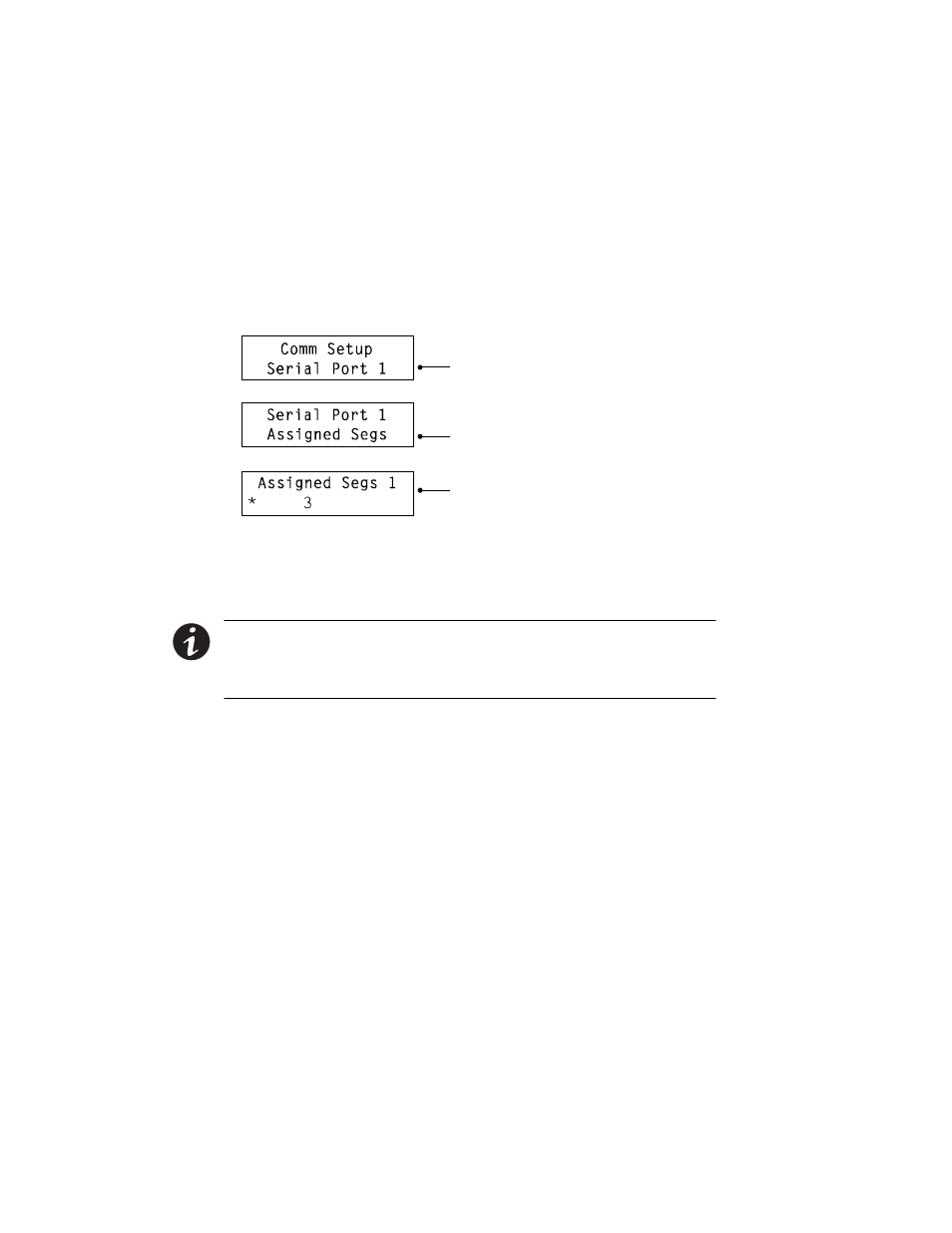

Figure 25. Assigning Load Segments
NOTE All load segments are assigned to both serial ports by factory-default. If you
are using the LanSafe III/FailSafe III power management software, the load segments
must be carefully assigned to prevent the unintentional shutdown of specific load
segments.
