Installation
20
Powerware
®
5140 User’s Guide
:
www.powerware.com
3. Connect the EBM cable to the UPS (see Figure 6). If installing a
second EBM, connect the EBM cable to the first EBM.

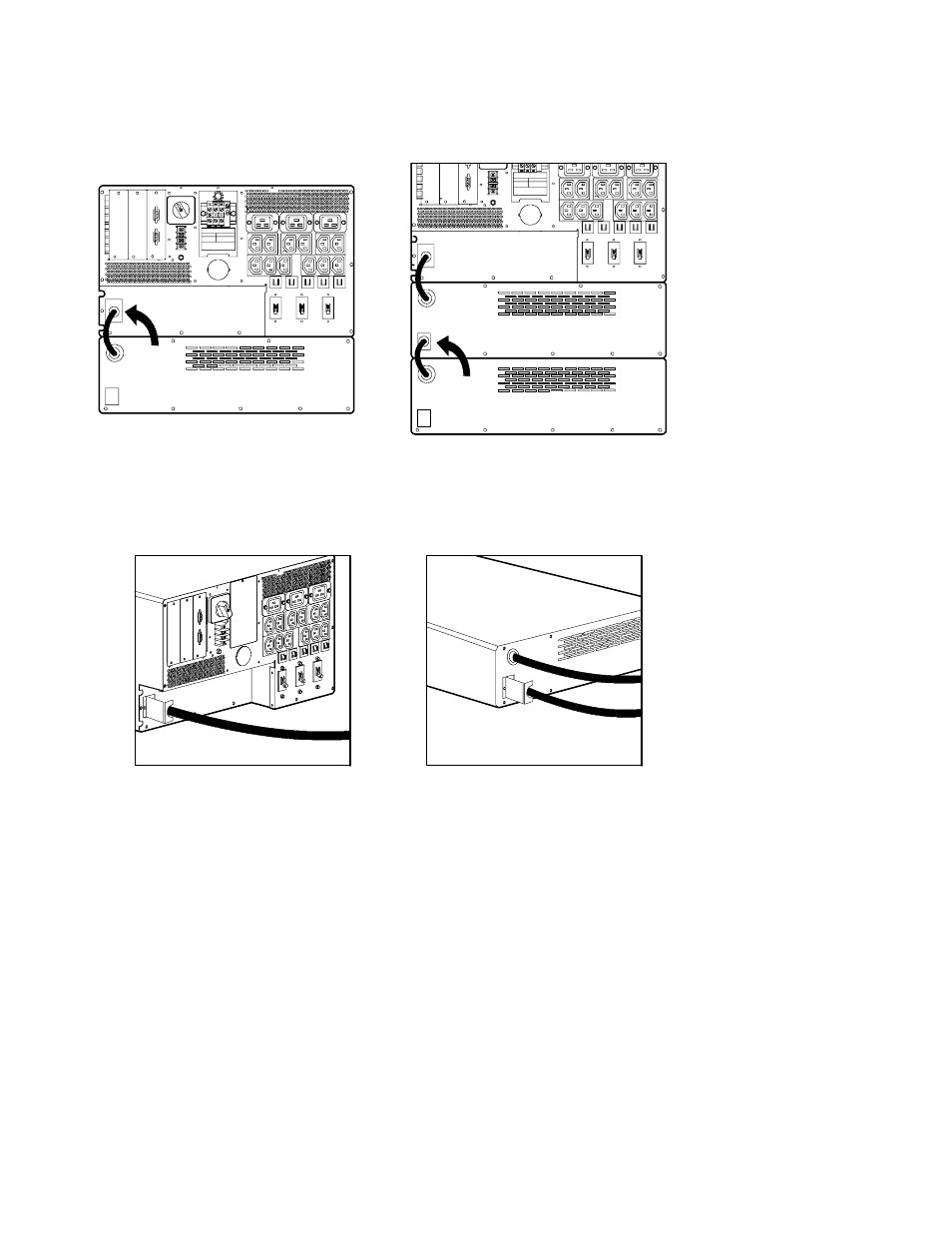

Figure 6. Connecting the EBM Cables
4. Use the screw removed in Step 2 to secure the EBM cable by
attaching the retaining bracket provided in the kit (see
Figure 7).
Figure 7. Securing the EBM Cables
