Powerware 5140 User Manual
Page 29
Installation
21
Powerware
®
5140 User’s Guide
:
www.powerware.com
5. Slide the left battery tray into the chassis. Repeat for the right
battery tray.
6. For each battery tray, remove the battery connector cover.
Remove the cover screw and discard the cover. Reinstall the
screw to secure the sheet metal (see Figure 8).

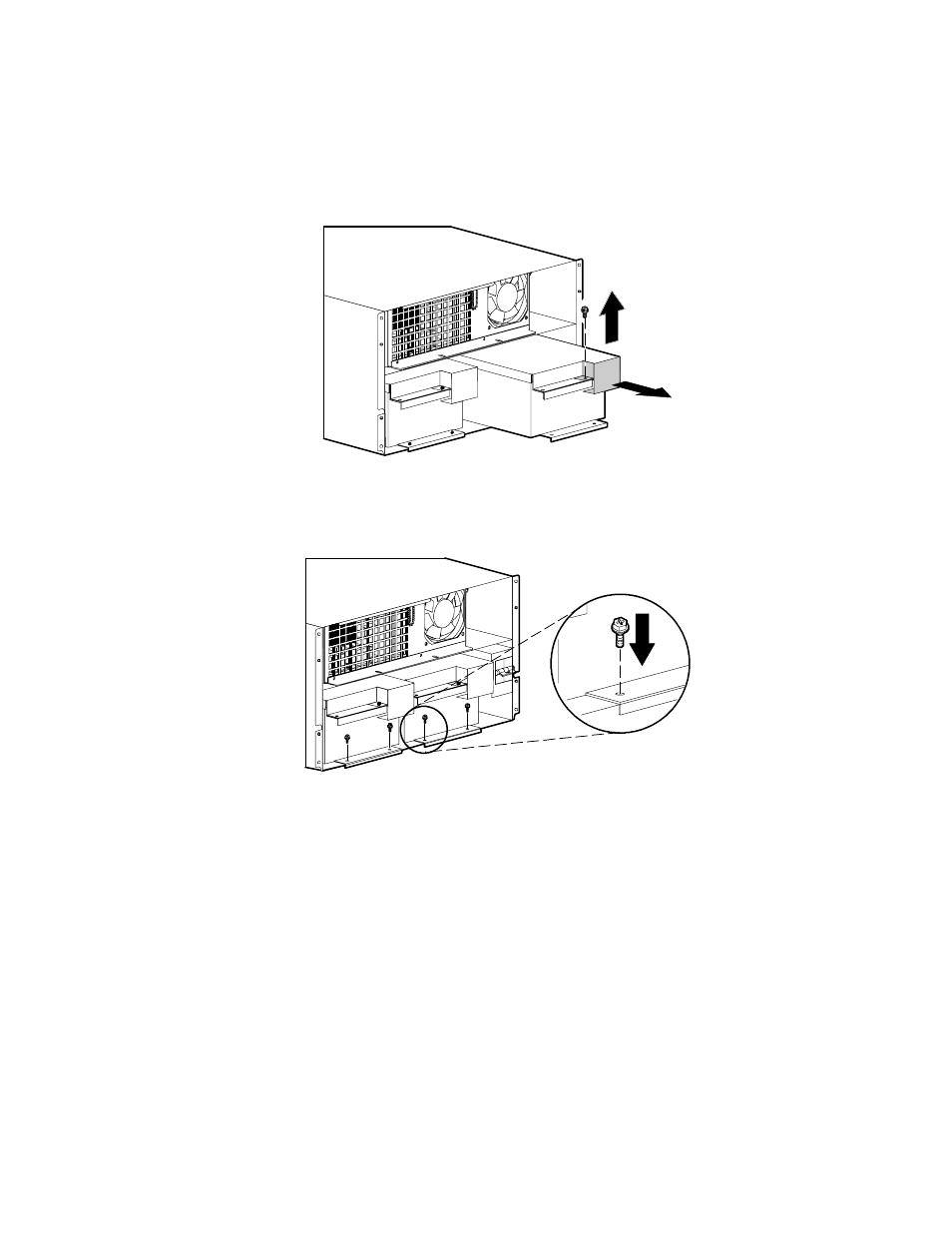

Figure 8. Removing the Battery Connector Covers
7. Secure the battery trays to the chassis with the screws provided
in the kit (see Figure 9).
Figure 9. Securing the Battery Trays
