Powerware 5140 User Manual
Page 36
Installation
28
Powerware
®
5140 User’s Guide
:
www.powerware.com

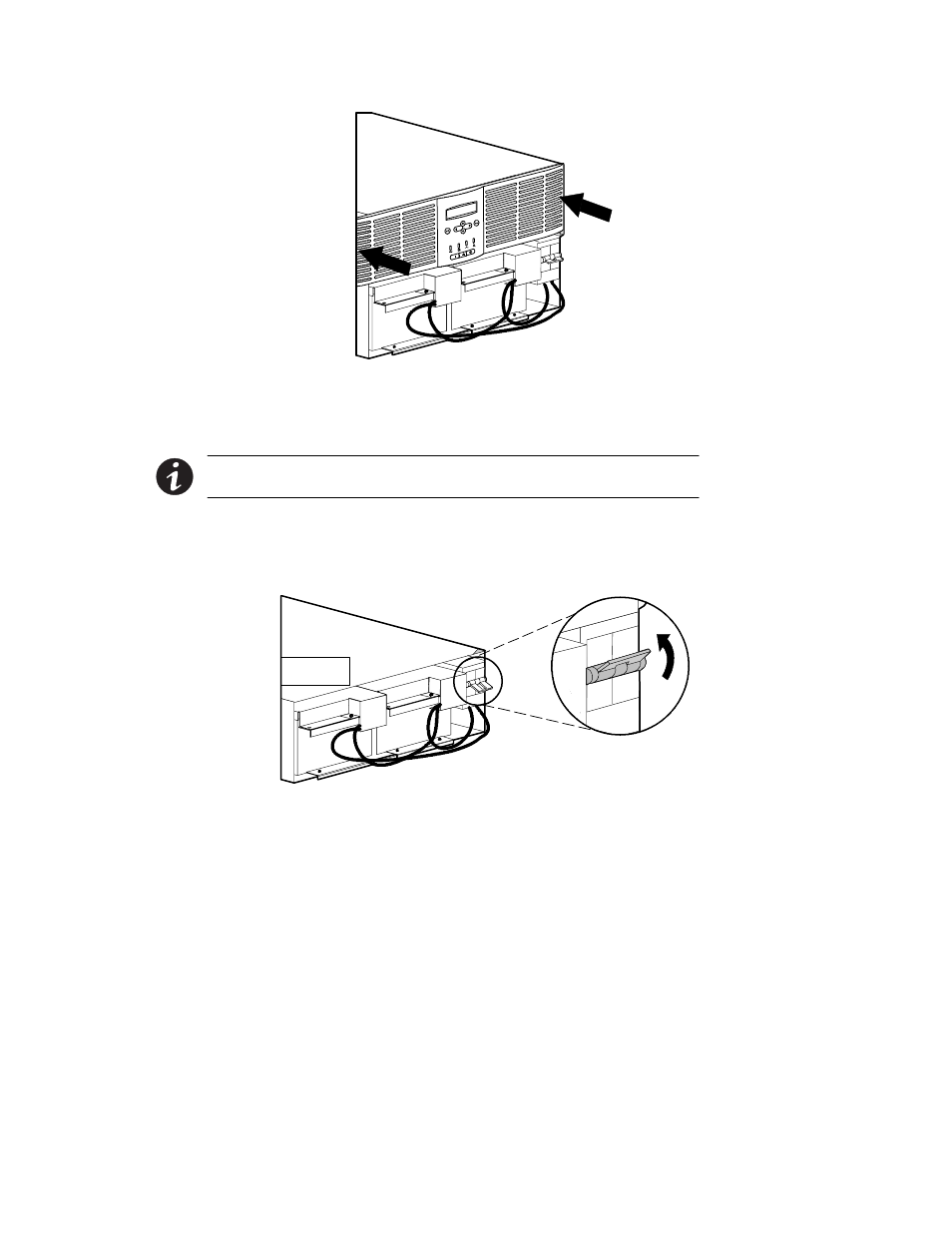

Figure 17. Securing the UPS Front Panel
3. Connect your equipment to the appropriate UPS output
receptacles or the PDU receptacles.
NOTE If you are using the Load Segment feature, see page 43 for more information
on controlling and assigning the load segments.
4. If you installed optional EBMs, continue to Step 5; otherwise,
skip to Step 7.
5. Turn the battery breaker on all EBMs to the ON position.
Figure 18. EBM Battery Breaker
