8. Connect the battery cable to the battery connector on the left
battery tray. Repeat for the right battery tray (see Figure 10).

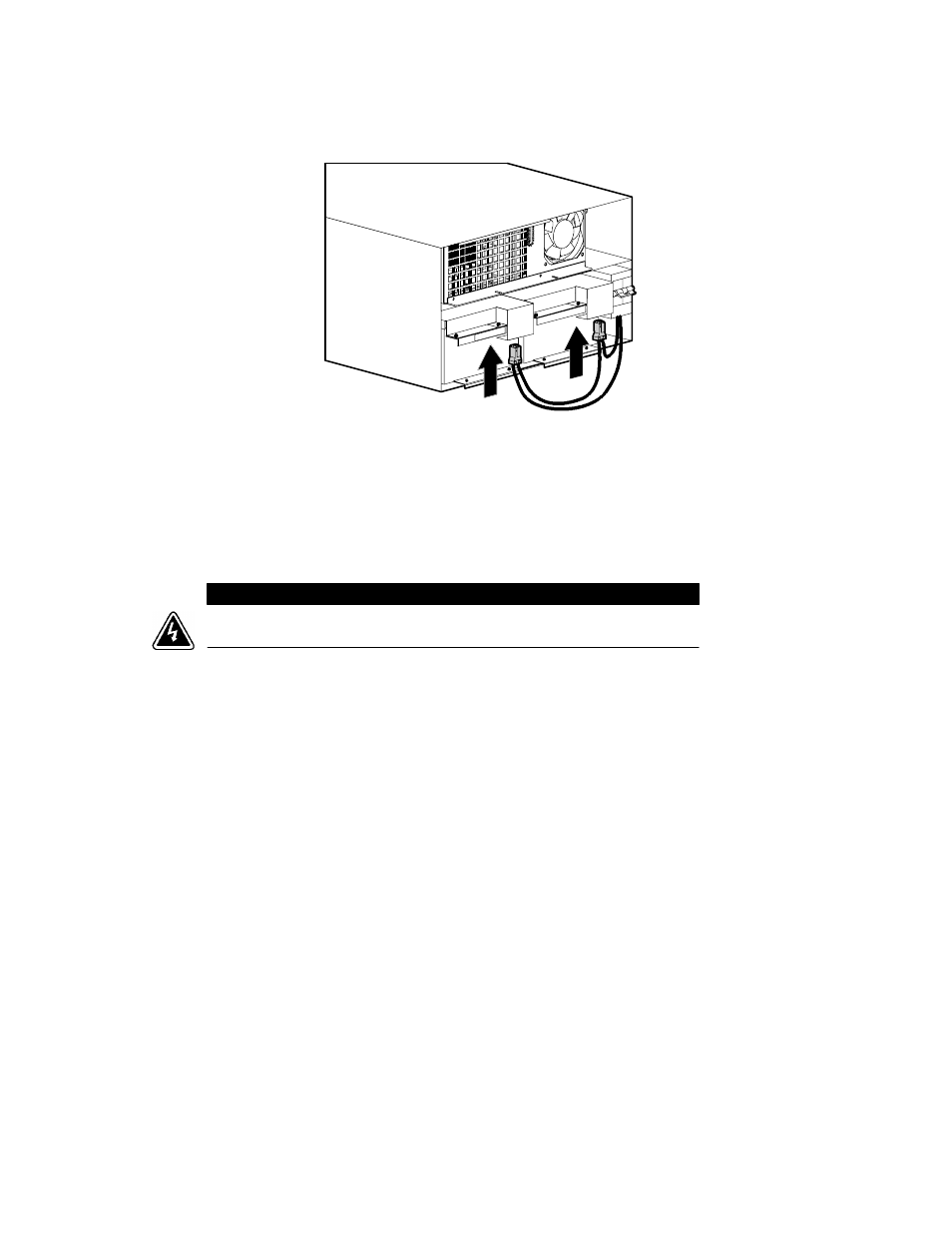

Figure 10. Connecting the Battery Cables
9. Repeat Steps 5 through 8 to install the battery trays in each
EBM chassis.
10. Continue to the following section, “Electrical Installation.”
Electrical Installation
W A R N I N G
Only qualified service personnel (such as a licensed electrician) should perform the
electrical installation. Risk of electrical shock.
The Powerware 5140 requires a dedicated branch circuit that meets the
following requirements:
: 40A circuit with short circuit and overcurrent protection
: 200-240 Vac
: Single-phase
: 50/60 Hz
: Flexible metal conduit is recommended for ease of service and
maintenance
