Installation
24 Powerware ® 5140 User’s Guide
:
www.powerware.com
5. Connect the input and ground wires to the input terminal block
according to the wiring instructions below the terminal block
(see Figure 12).
Ground
Line 2/Neutral
Line 1

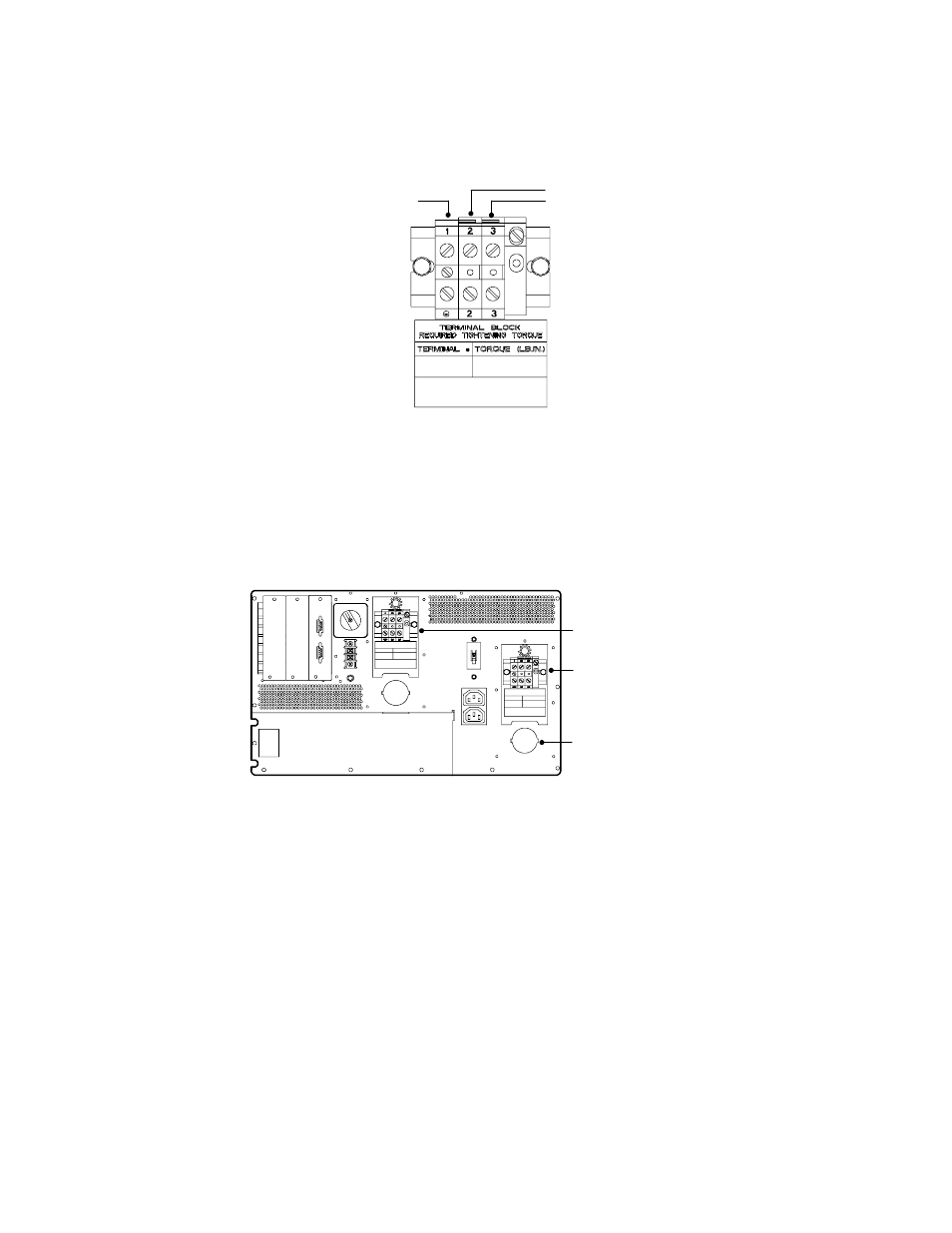

Figure 12. Terminal Block
6. If you have a PW5140 6000 HW model, remove the output
wiring knockout and the terminal block cover (see Figure 13).
Retain the terminal block cover.
Connect the output and ground wires to the output terminal
block according to the wiring instructions below the terminal
block (see Figure 12 and Figure 13).
Output Terminal Block
Output Wiring Access
Knockout
Input Terminal
Block
Figure 13. PW5140 6000 HW Model
7. Replace the terminal block cover(s).
