Installation
17 Powerware ® 5140 User’s Guide
:
www.powerware.com
Installing the Chassis
C A U T I O N
The UPS chassis and battery trays are heavy (see page 54). A minimum of two people
are required to lift the UPS into the rack. Use caution when lifting the modules.
NOTE The UPS and Extended Battery Modules MUST be installed at the bottom of
the rack. If placed in a rack with existing equipment, the rack must be reconfigured to
allow the UPS installation at the bottom of the rack.
After the rails are installed in the rack (refer to the instructions included
with the rail kit), use the following procedure to assemble the UPS.
1. If you are installing an optional EBM, position the chassis in the
bottom of the rack and slide into place.
2. Attach the EBM chassis to the rack using the screws supplied
with the rack (see Figure 2).

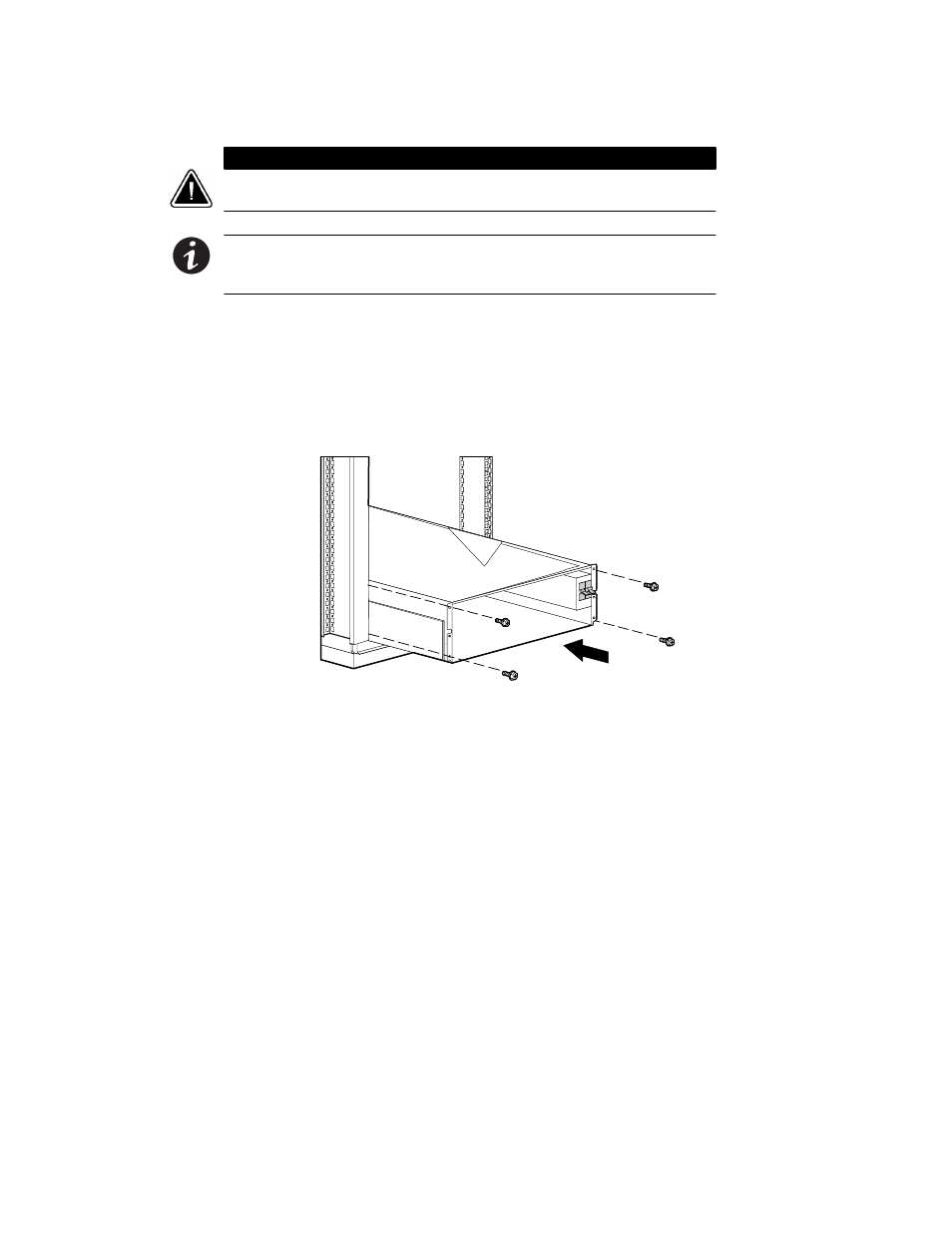

Figure 2. Installing the EBM Chassis
3. Using two people, position the UPS chassis in the bottom of the
rack (or above the optional EBMs) and slide into place.
4. Attach the chassis to the rack using the screws supplied with
the rack (see Figure 3).
