Chapter 7 Managing LANE Services
Cajun M770 ATM Switch Manager User’s Guide 33
1 Select the module you want to manage.
2 Open the Configuration menu and select LANE Resilient LECS Table . The
Resilient LECS Table is displayed.

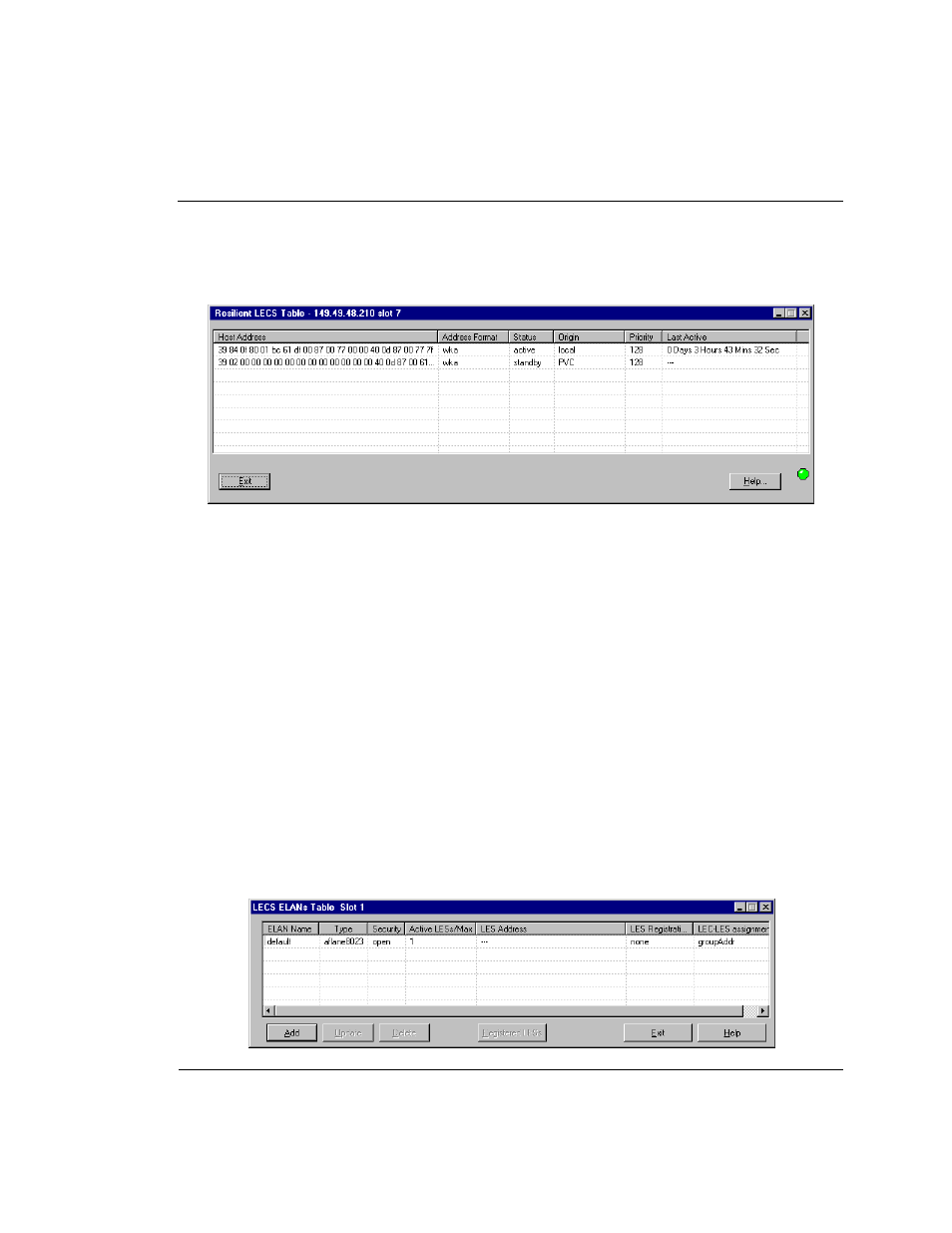

Figure 7.2 Resilient LECS Table
The Resilient LECS Table provides information about the resilient LECSs, such as
their address format, status, and priority.
For a full description of the fields in the Resilient LECS Table, refer to Appendix B,
Configuration Fields.
Configuring the LECS ELANs Table
When a LEC contacts the LECS, it usually specifies the ELAN name or the ELAN
type that it wants to join. The LECS in a Cajun M770 ATM module enables you to
define up to 64 different ELAN names.
If there is a local LECS on the selected module, you must configure an ELAN name in
this table for every ELAN that is to be used in your ATM network.
Viewing the LECS ELANs Table
To view the LECS ELANs Table:
1 Select the module you want to manage.
2 Open the Configuration menu and select LANE LECS ELANs Table . The LECS
ELANs Table is displayed.
Figure 7.3 LECS ELANs Table
