Chapter 3 ATM Switch Configuration
Cajun M770 ATM Switch Manager User’s Guide 13

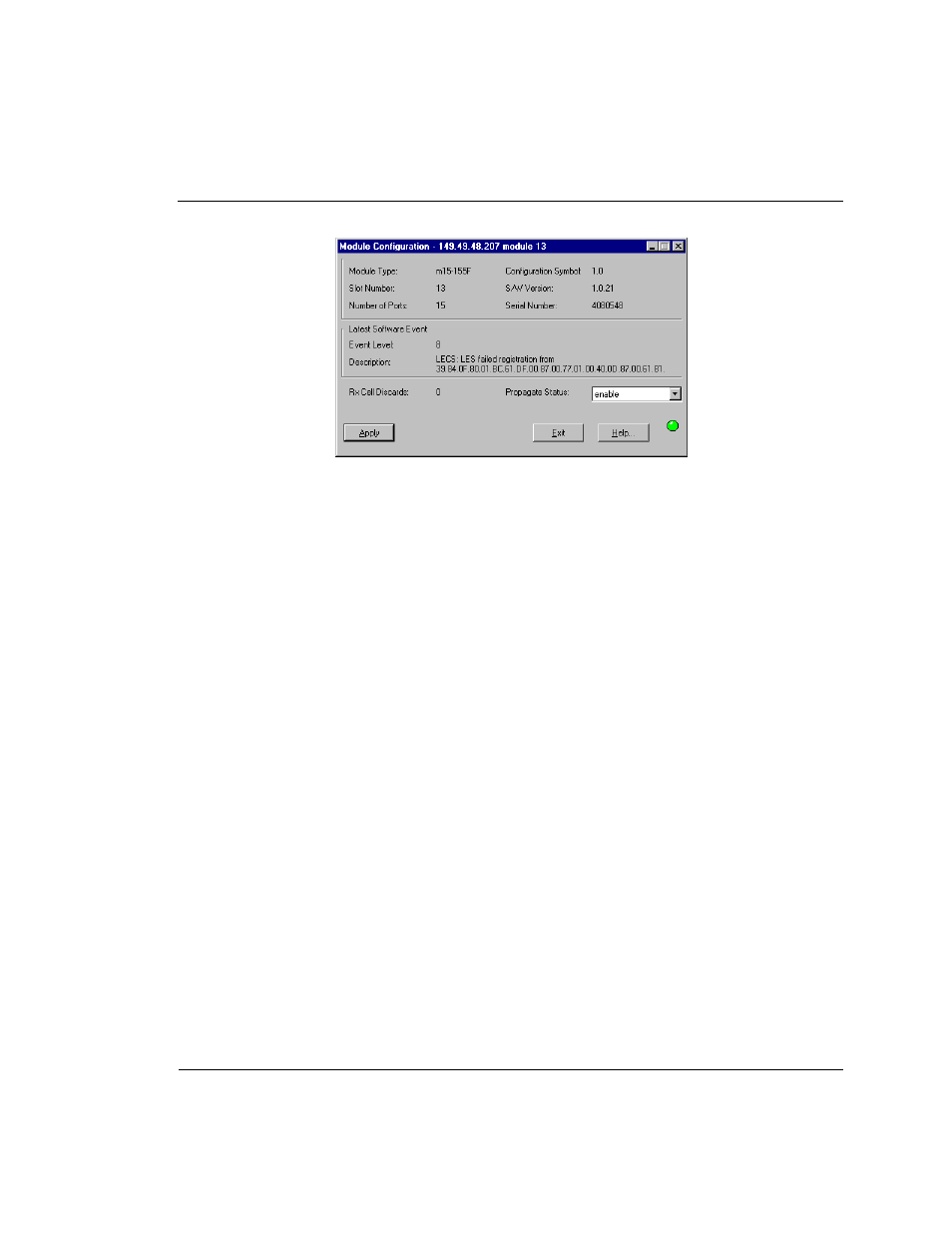

Figure 3.2 Module Configuration
The Module Configuration window provides module information such as the module
type and software version, slot number, serial number, and information about the
module’s configuration.
For a full description of the fields in the Module Configuration window, refer to
Appendix B, Configuration Fields.
Viewing Port Configuration
The Port Configuration dialog box provides you with information specific to a selected
port. To view the configuration of a port:
1 Open the Cajun M770 ATM Switch Zoom View.
2 Select a port by clicking on its symbol.
3 Open the Configuration menu and select Port Configuration.
OR
Double-click a port symbol.
OR
Right-click a port and select Port Configuration . The Port Configuration dialog box
is displayed.
