Chapter 5 Monitoring Performance
Cajun M770 ATM Switch Manager User’s Guide 25

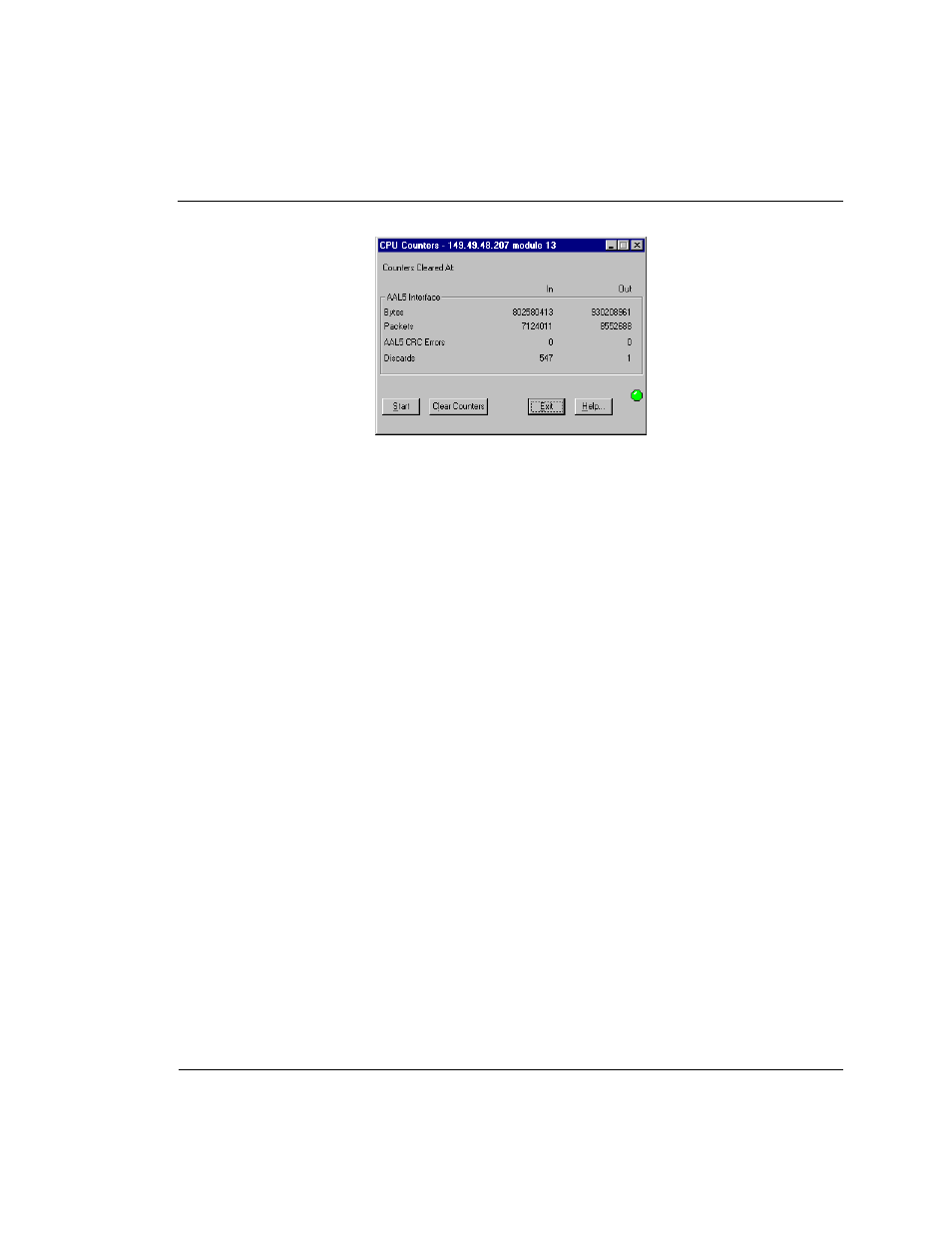

Figure 5.2 CPU Counters Window
CPU Counters are gathered for each selected module. The display is updated
automatically approximately every thirty seconds. To manually update the display, click
Start .
Click Clear Counters to reset all counter values to 0. The exact time you click the Clear
Counters button appears in the Counters Cleared At field. When you click this button,
the counters are not reset on the agent.
For a full description of all CPU counters, refer to Appendix C, Counter Fields.
Viewing VC Counters
The VC Counters table enables you to view at a glance the number of cells received for
each VC on the module’s CPU port or a selected port.
To view VC Counters from Zoom View:
1 Select a module or port to be monitored.
2 Open the Performance menu and select VC Counters .
OR
Right-click a module and select VC Counters . The VC Counters window is
displayed.
