Chapter 6
Managing Switch VCs
30
Cajun M770 ATM Switch Manager User’s Guide
Viewing All VCs on a Port
The Total VCs table displays a list of all traffic going through the VCs on the selected
port. To view a description of all traffic on a port:
1
Select a port to be monitored.
2
Open the
Configuration
menu and select
Port
Total VCs
.
OR
Right-click a port and select
Total VCs
. The Total VCs window appears.

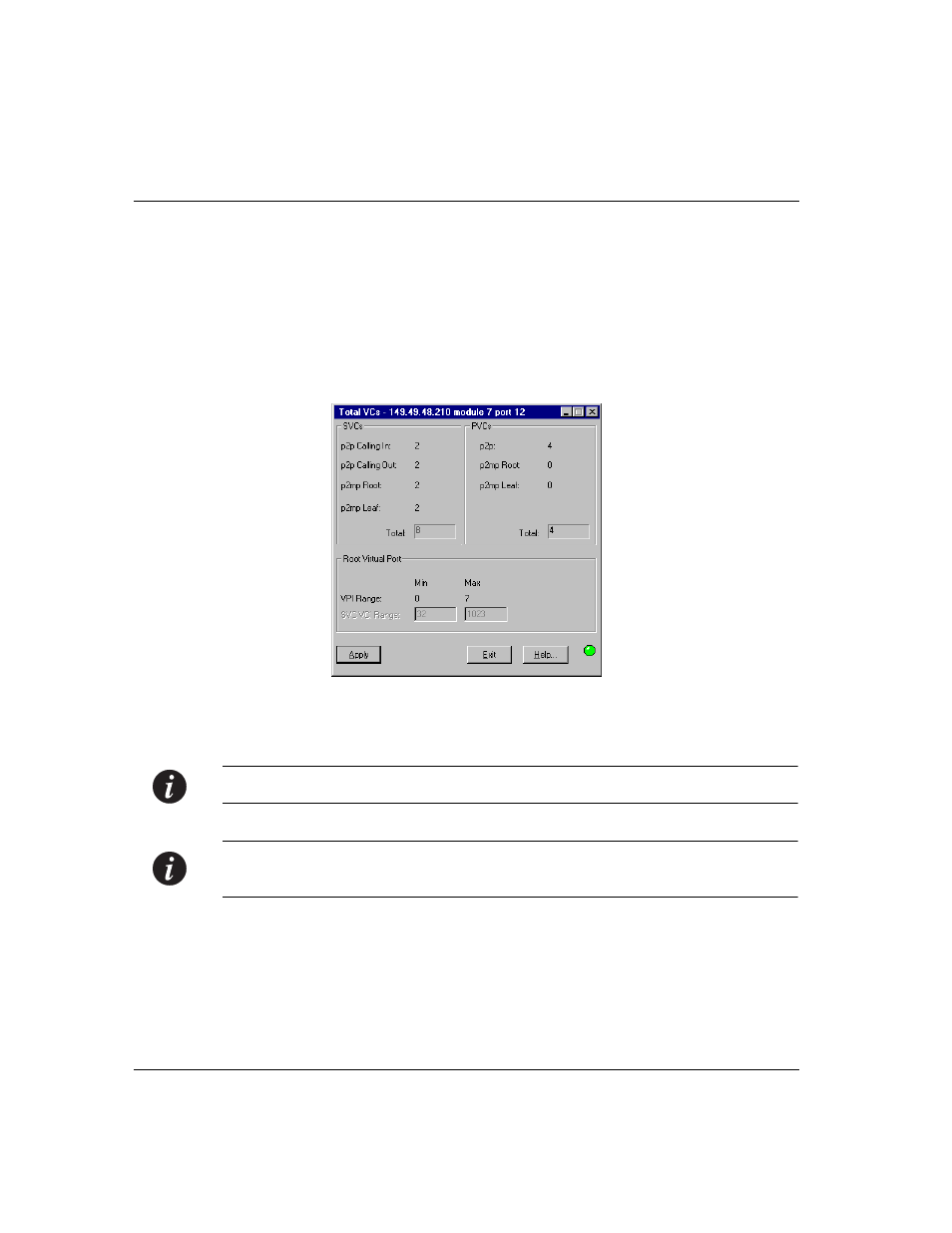

Figure 6.2
Total VCs Window
The Total VCs window provides a list of the total number of VCs including SVCs and
PVCs for the selected port. The Total VCs window also provides a method for editing
the SVC VCI range.
Note:
To edit the SVC VCI range, the virtual port must be disabled.
Note:
The port will always have at least three point-to-point PVCs used for ILMI,
Signalling, and Proprietary LANE.
For a description of the fields in the Total VCs window, refer to Appendix B,
Configuration Fields
