Chapter 5 Monitoring Performance
Cajun M770 ATM Switch Manager User’s Guide 27

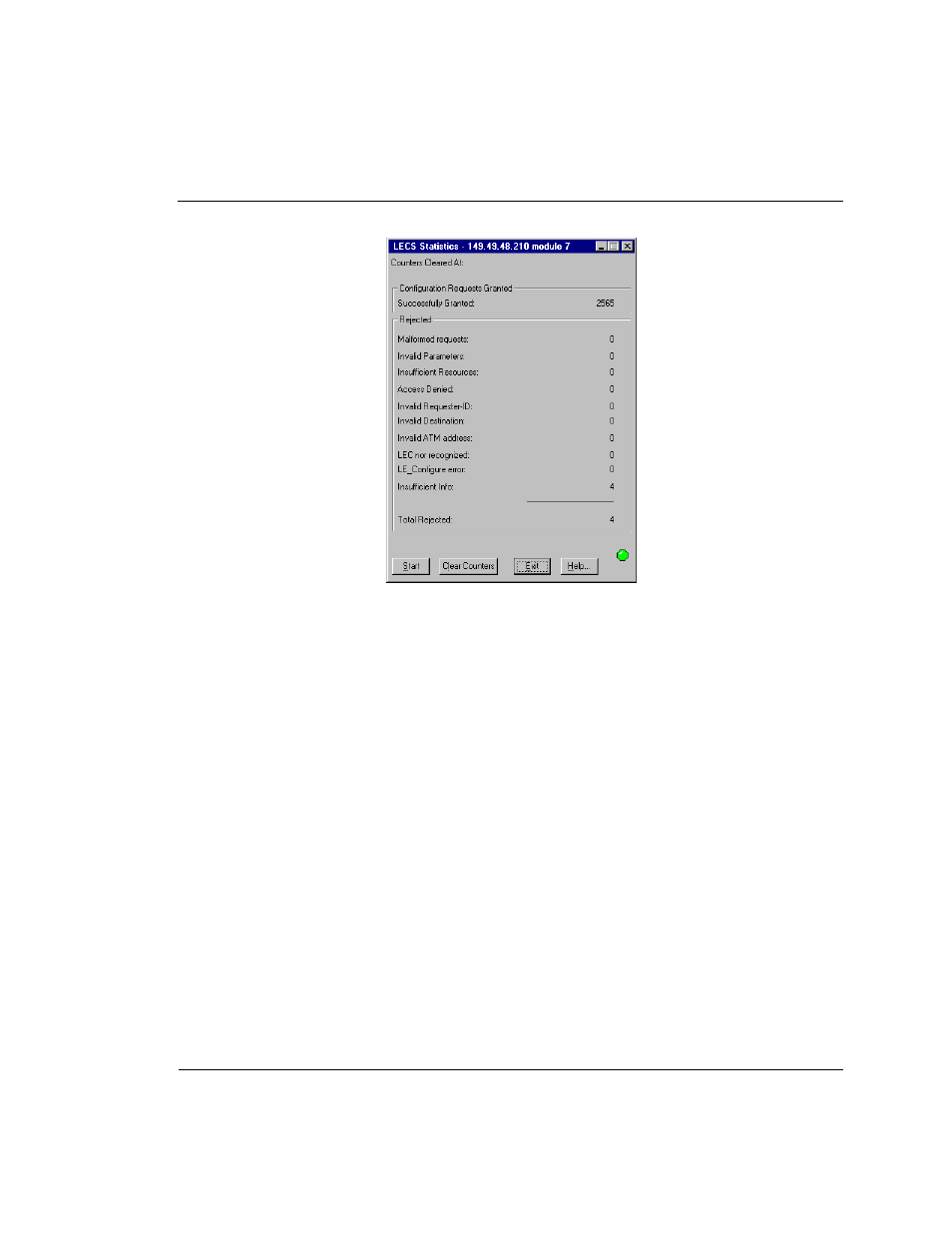

Figure 5.4 LECS Statistics Window
LECS Statistics are gathered for each selected module for which the local LECS is
enabled. The display is updated automatically approximately every thirty seconds. To
manually update the display, click
Start .
Click Clear Counters to reset all counter values to 0. The exact time you click the Clear
Counters button appears in the Counters Cleared At field. When you click this button,
the counters are not reset on the agent.
For a full description of all LECS statistics, refer to Appendix C, Counter Fields.
Viewing Management LEC Counters
The Management LEC Counters window lets you view the amount of traffic flowing
between the management LEC and a chosen module. Counters are displayed for the
following types of traffic:
• Bytes
• Packet information
• Frame error information
• LAN Emulation information
You can also view the total number of bytes that the management LEC receives and
transmits, the number of frames that the management LEC discards, and the number of
SVCs (Switched Virtual Connections) that have failed to be set up.
To view Management LEC Counters:
1 Open the Performance menu and select Mng LEC Counters . The Management
LEC Counters window appears.
