Chapter 2 Agent Configuration
8 Cajun M770 ATM Switch Manager User’s Guide
Viewing the Agent Information Box
Every agent has an Agent Information window that provides details about the agent. To
view the configuration of an agent:
1 Open the Cajun M770 ATM Switch Zoom View.
2 Click .
OR
Open the
Configuration menu and select Agent . The Agent Information window is
displayed.

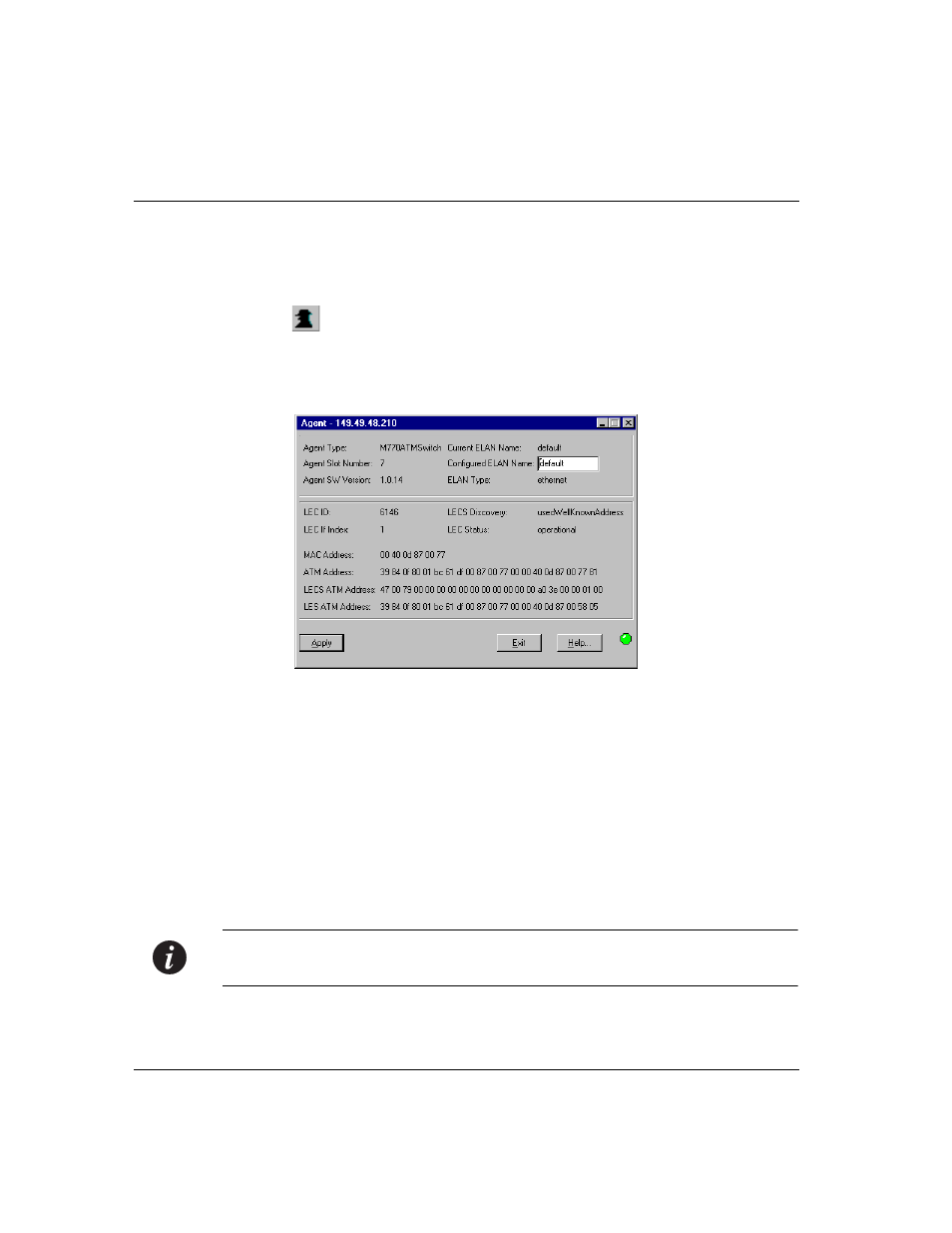

Figure 2.1 Agent Information Window
The Agent Information window provides detailed information about the agent such as
the agent type, the versions of its software, the agent’s addresses, and LEC information.
For a full description of the configuration fields in the Agent Information window, refer
to Appendix B, Configuration Fields.
Designating Managers
Agents send alarms to Manager workstations that are included in the agent's Manager
list. Alarms are not sent to any other network management stations (NMS).
If you wish to properly manage an ATM Switch, your station should be one of its
designated Managers. The Manager can be a Cajun M770 ATM Switch Manager station
or any other SNMP (Simple Network Management Protocol) management console.
Note: Refer to the Cajun M770 ATM Switch User’s Guide for a method of editing the
Managers list using the command line interface.
