W-2WAY ECO-i SYSTEM Unit Specifications
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
7. Wall-Mounted Type (K Type)

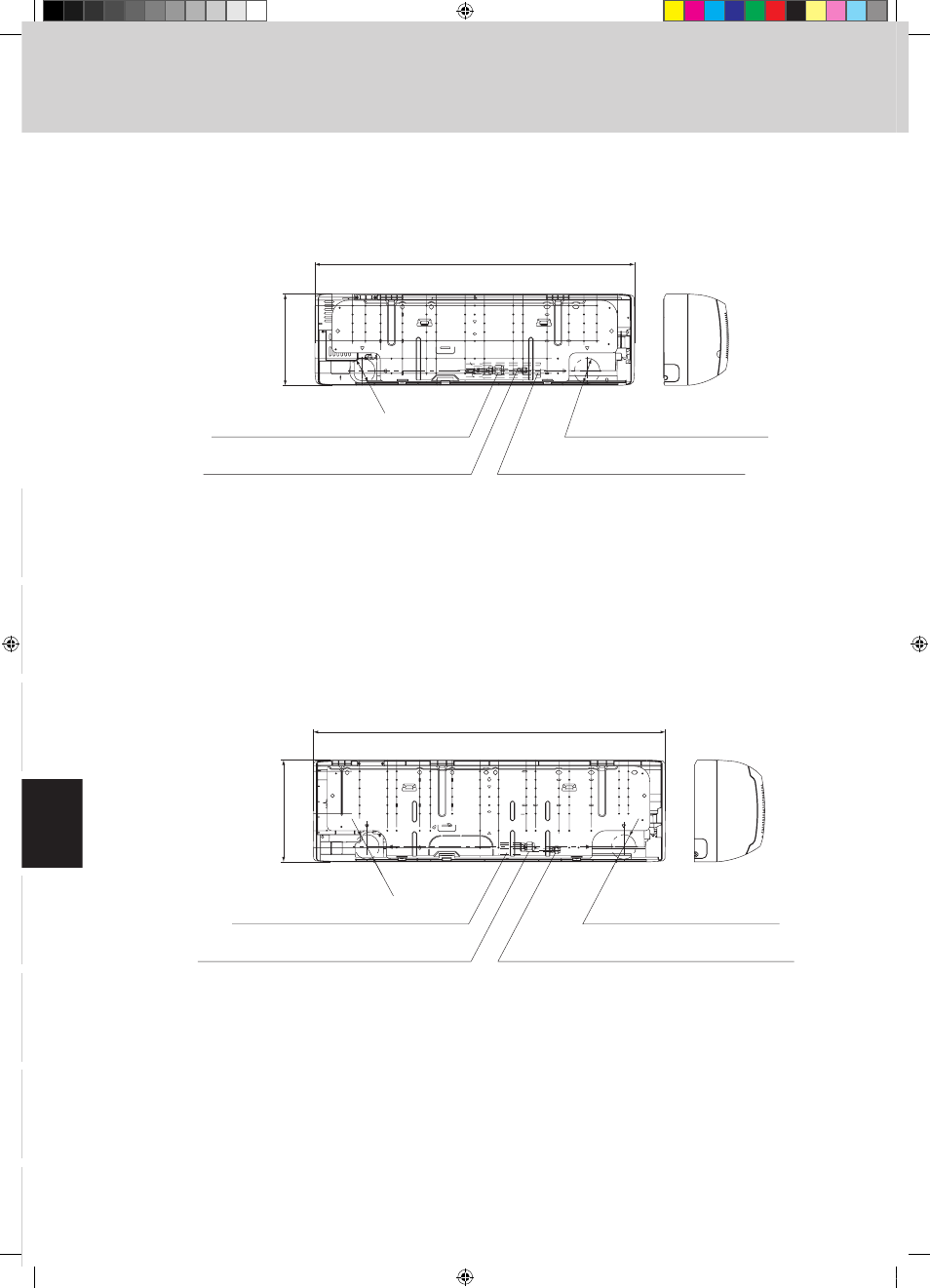

7-3. Dimensional Data
3-5/32
3-5/32
39-11/64
11-7/32
Drain hose VP13 (length: Approx. 17-23/32”)
Drain hose VP13 (length: Approx. 17-23/32”)
Liquid tube ш1/4” ( ш 6.35) (length: Approx. 18-1/2”)
Liquid tube ш3/8” ( ш 9.52) (length: Approx. 22-7/16”)
Drain and wiring port ш3/8” ( ш9.52 )
Drain and wiring port ш3/8” (ш9.52) Gas tube ш1/2” ( ш 12.7) (length: Approx. 15-6/8”)
Gas tube ш5/8” ( ш 15.88) (length: Approx. 19-11/16”)
7, 9, 12, 18 type
24 type
44-7/8
12-63/64
unit : in.
unit : in.
TD831138-02_W-2WAY.indb 76 2007/07/26 14:33:12
