Chapter 2 Locations and Functions of Parts and Controls
2-39
2

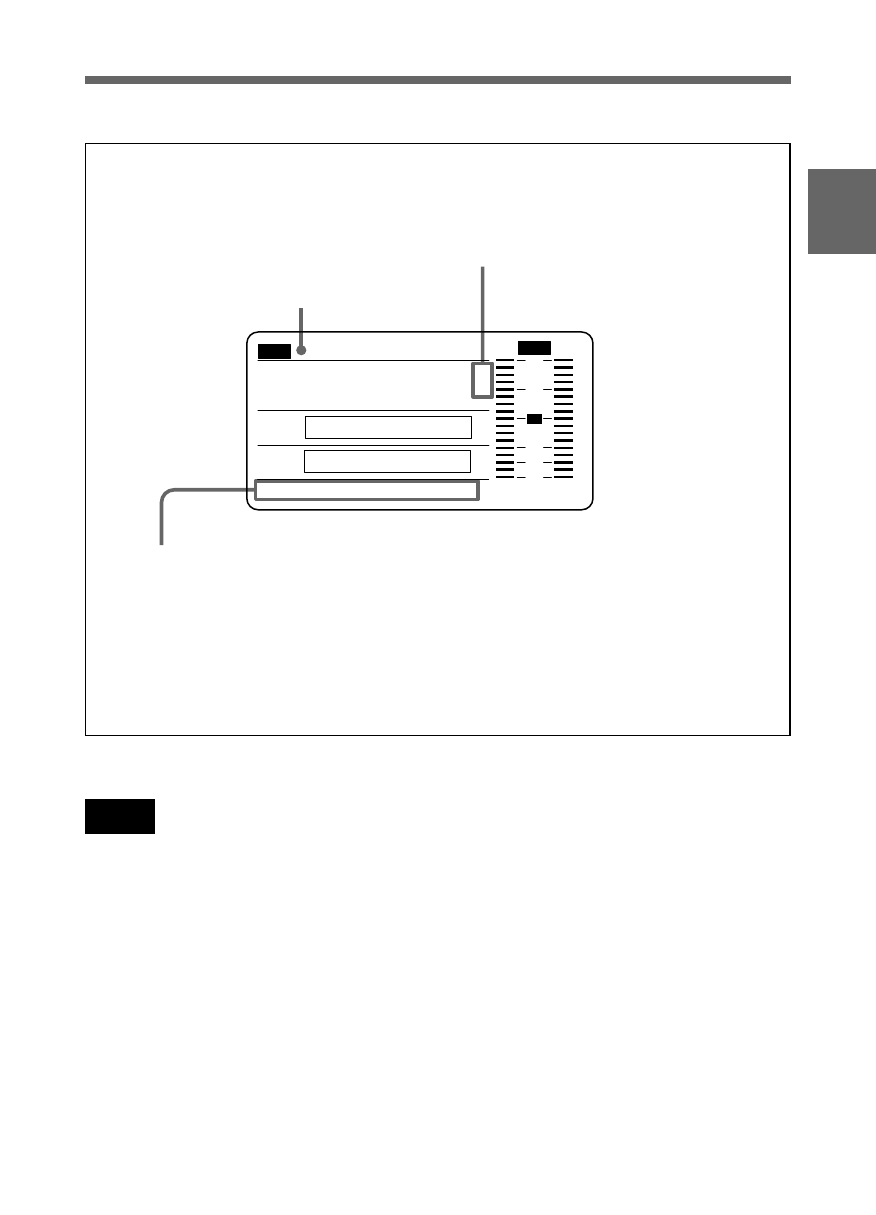

Warning indicators
RF: Lights if the recording heads are clogged.
SERVO: Lights if the servo motor fails.
HUMID: Lights if condensation is on the drum.
SLACK: Lights if the tape is not winding properly.
For more information, see Section 6-3 “Operation Warnings” (page 6-12).
Lights in the self-diagnostic mode (testing
display panel, camera, and VTR).
For more information, see Section 6-3
“Operation Warnings” (page 6-12).
Lights during playback.
VTR operation and status indicators
VTR operation and status indicators
Note
If the tape in the VTR is slacked, an error code appears in the display
section of the display panel.
For more information, refer to “maintenance manual.”
H MIN SEC FRM
40
PEAK dB
OVER EMPH OVER
TAPE E B
V
H
HOLD DIAG PB VITC NDF EXT-LK
RF SERVO HUMID SLACK
00:00:00:00
BATT E x x x x x x x
x x x x x x x
F
1 2
30
10
0
•
20
