Chapter 5 Setting Up the Camcorder
5-17
5
5-3 Mounting the Lens
Follow the procedure below to mount the lens.
For information about using the lens, refer to the lens manual.

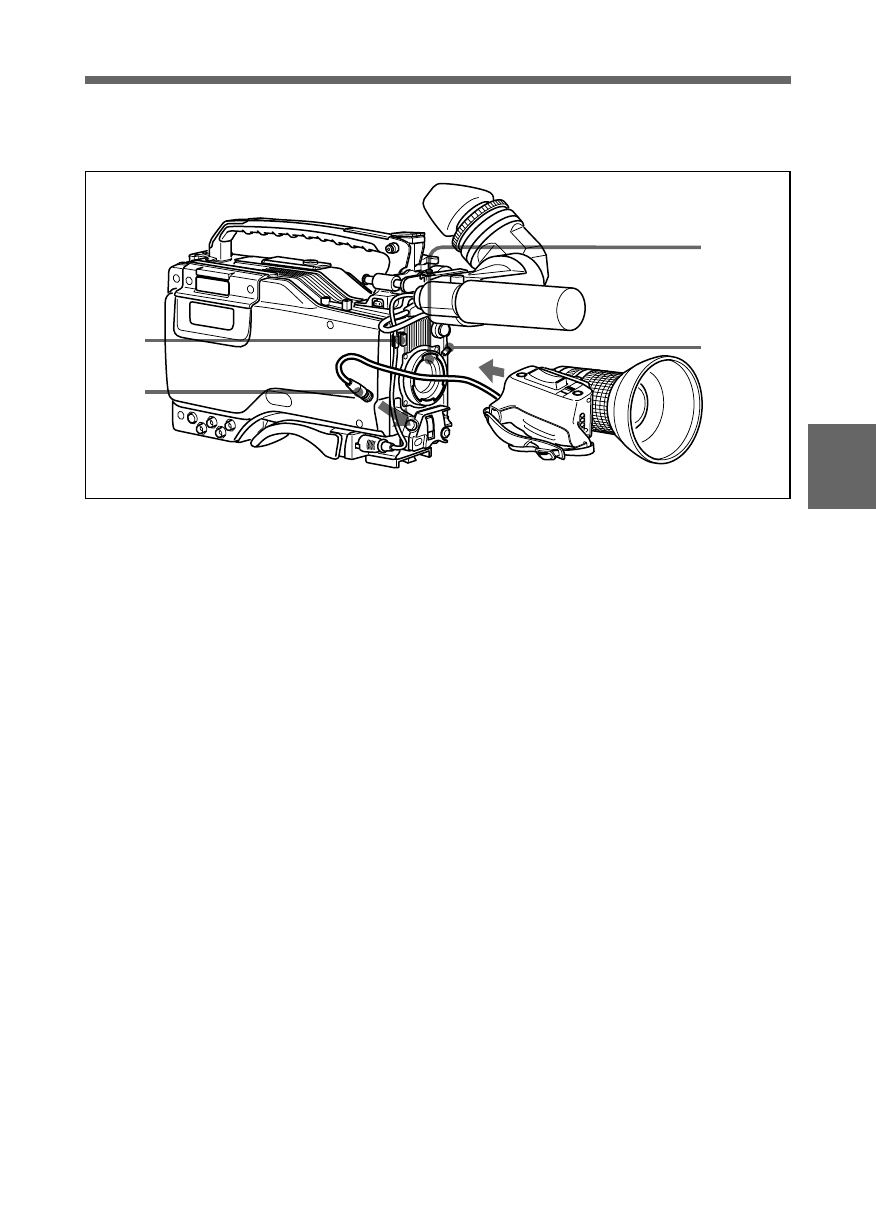

Mounting the lens
1
Push the lens locking lever up and remove the lens mount cap from
the lens mount.
2
Align the center slot in the lens mount with the center pin on the
lens, and insert the lens into the mount.
3
Holding the lens in place, push the lens locking lever down to mount
the lens.
4
Connect the lens cable to the LENS connector.
5
Secure the lens cable with the cable clamps.
1,3
2
4
5
