ASSEMBLY

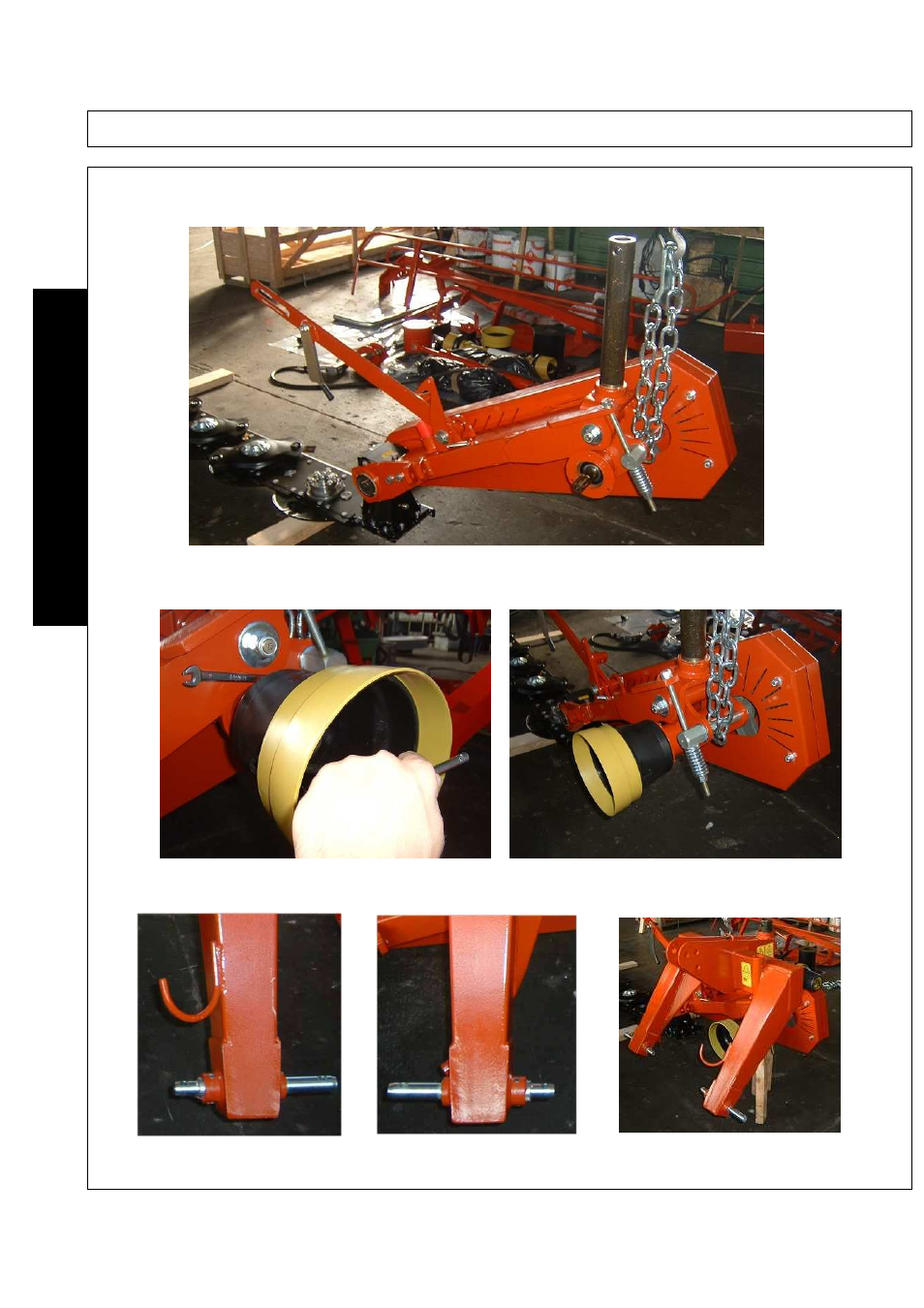

STEP 3. Open the wooden case from the shorter side and hook the machine to the chain hoist through the relative pin. Lift
and move slowly the chain hoist outwards in order to open the mower.
STEP 4 Mount the shaft guard of the PTO shaft. Use 3 hexagon head screws (T.E.) M6x20, 3 self-locking nuts M6 and 3
washers Ø 6.
STEP 5. Mount the 4-holes coupling pin of lift on the left arm of the three point linkage and lock it with no. 2 screws T.E.
M12x45.
