ASSEMBLY

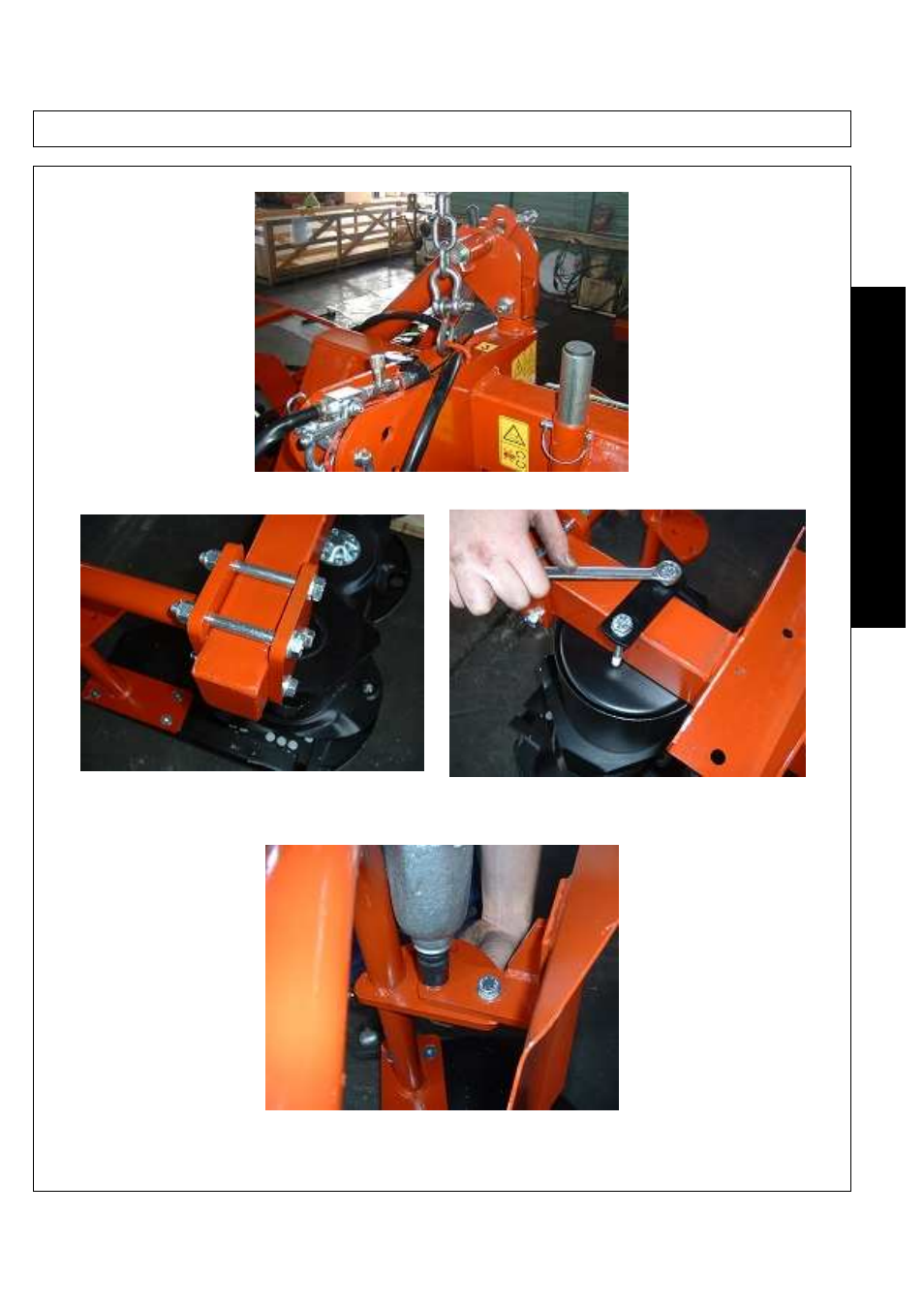

STEP 26. Lower the machine to the ground and hook it to the end-winding cover pin of the three point.
STEP 27. When the machine is on the ground tighten all the previously inserted bolts (Picture 27.1 e 27.2).
Picture 27.1 Picture 27.2
STEP 28. Mount the windrow-former on its bearing with 2 hexagon head screws M12x45, 2 self-locking nuts M12 and 2 flat
washers M12.
A
SSEM
B
L
Y
