OPERATION
Adjustment
Before operating the machine make the necessary adjustments.
Correct adjustment of the machine ensures proper operation of the machine, and helps improve performance and
reduce knives wear.
-

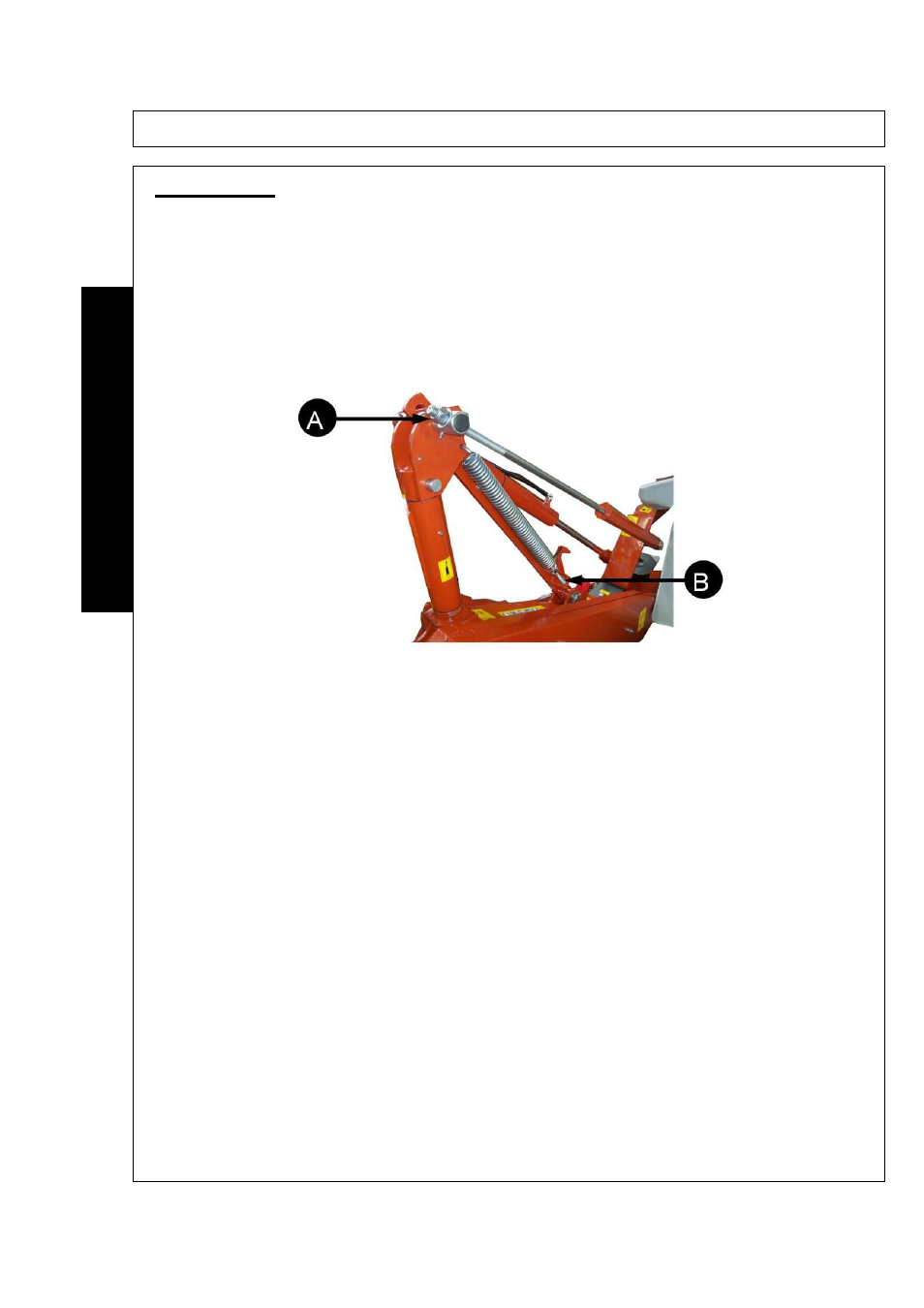

In order to reduce the load of the machine on the ground and for the machine to be parallel to the ground use the
bolts
(A)
as shown in the picture.
-
To adjust lowering of the machine to the working position and work on hilly terrain (with max. between 15° and
20°), use adjustment bolts
(B)
as shown in the picture.
