ASSEMBLY

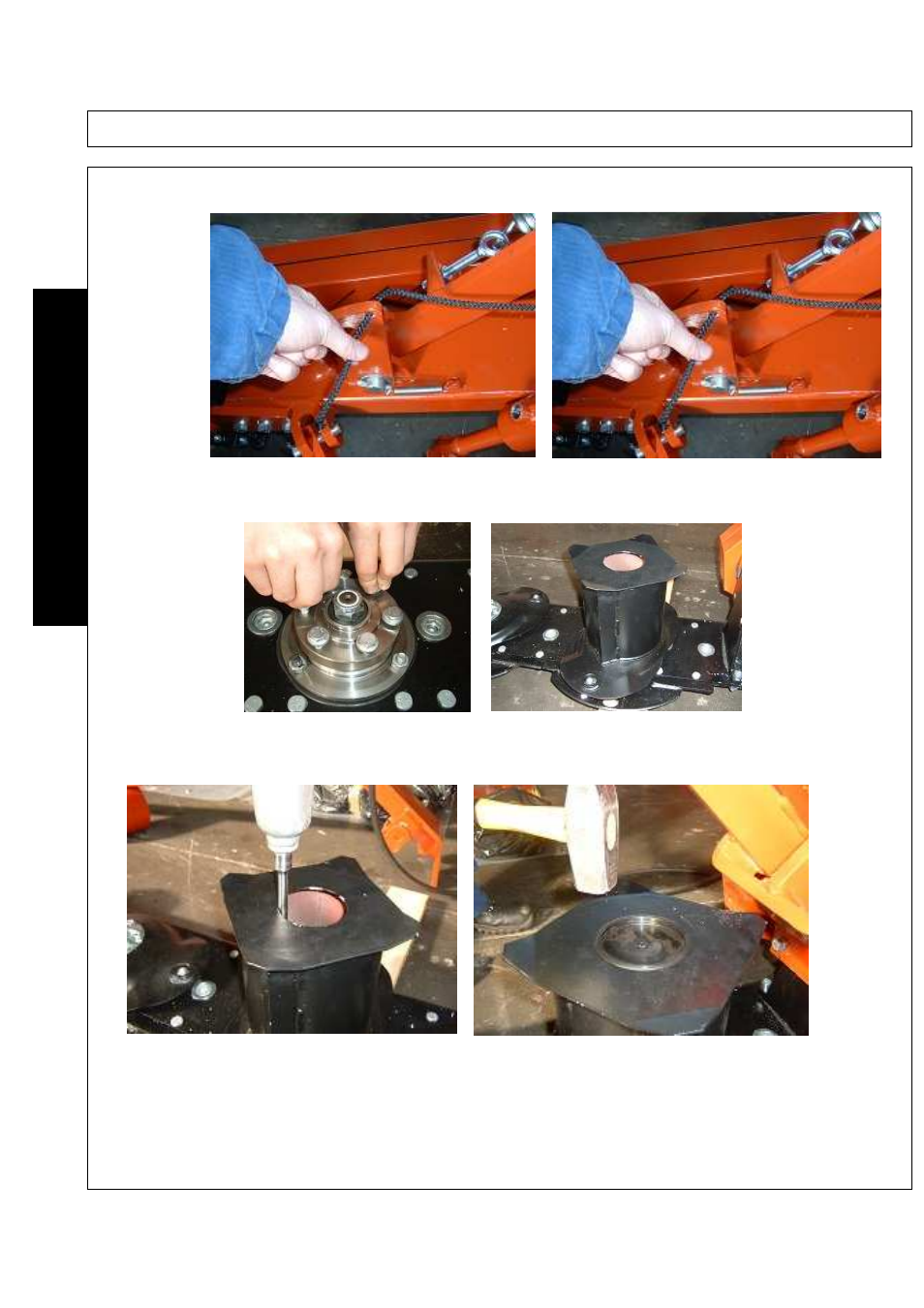

STEP 15. Insert the free end of the rope cord through hole 1 and hole 2 as shown in the Picture. Secure the end with the
rope-clip (Picture 15.2).
Picture 15.1 Picture 15.2
STEP 16. Loosen the disc-holder bolts and insert the conveyor disc that must be in phase with the adjacent disc as shown in
the Picture (Picture 16.2).
Picture 16.1 Picture 16.2
Tighten the disc-holder bolts and close the conveyor from the top with the black plastic tap.
