• When the HDMI Audio Output is set to On, this unit converts the analog audio signals (which are input into the (analog)

AUDIO INs) or the digital audio signals (which are input into the HDMI IN, the OPTICAL or the COAXIAL DIGITAL IN) to the
PCM 2 channel signals and outputs them from the HDMI MONITOR OUT depending on the Audio Mode setting. (For details,
refer to "When selecting the HDMI Audio Output" on page 60 and "When selecting the Audio Mode" on page 71.)

• The digital audio signals (which are input into the OPTICAL or the COAXIAL DIGITAL IN) can be output from the OPTICAL

DIGITAL OUT.

However, the digital audio signals input into the HDMI IN cannot be output from the OPTICAL DIGITAL OUT.

■

Note :

• The audio signals which are input into the EXTERNAL

INs or the USB cannot be output from any AUDIO OUTs.

Continued
■

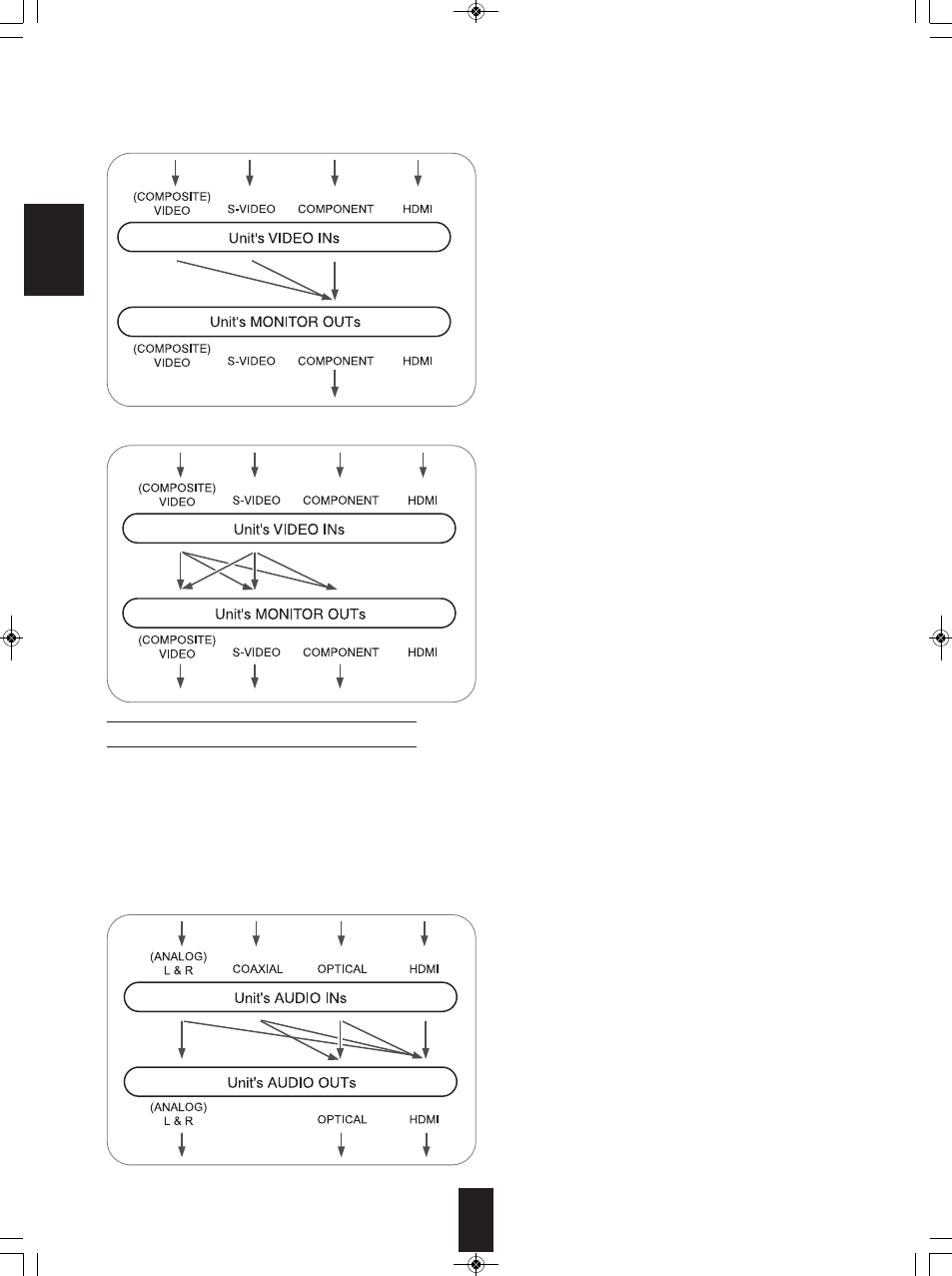

When Monitor Output is set to Component

• The video signals are output from the COMPONENT

MONITOR OUTs only depending on the Video Mode
setting

■

Note : .

• The HDMI video signals cannot be output regardless of

the Video Mode setting.

■

When Monitor Output is set to SC-Video

■

Audio Signal Flow

• The video signals are output from the (composite) VIDEO,

the S-VIDEO and the COMPONENT MONITOR OUTs
depending on the Video Mode setting.

■

Note : .

• The HDMI video signals and the component video signals

cannot be output regardless of the Video Mode setting.

Audio conversion
