• The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording component. For
details, refer to the operating instructions of the component to be connected.
• The jacks of VIDEO 2/VIDEO 3/VIDEO 4 can also be connected to an additional video component such as a cable TV
tuner or satellite system.
• Connect the jacks of VIDEO 3/VIDEO 4 to the video component in the same way.
2.
CONNECTING VIDEO COMPONENTS
E
N
G
L
IS
H
■

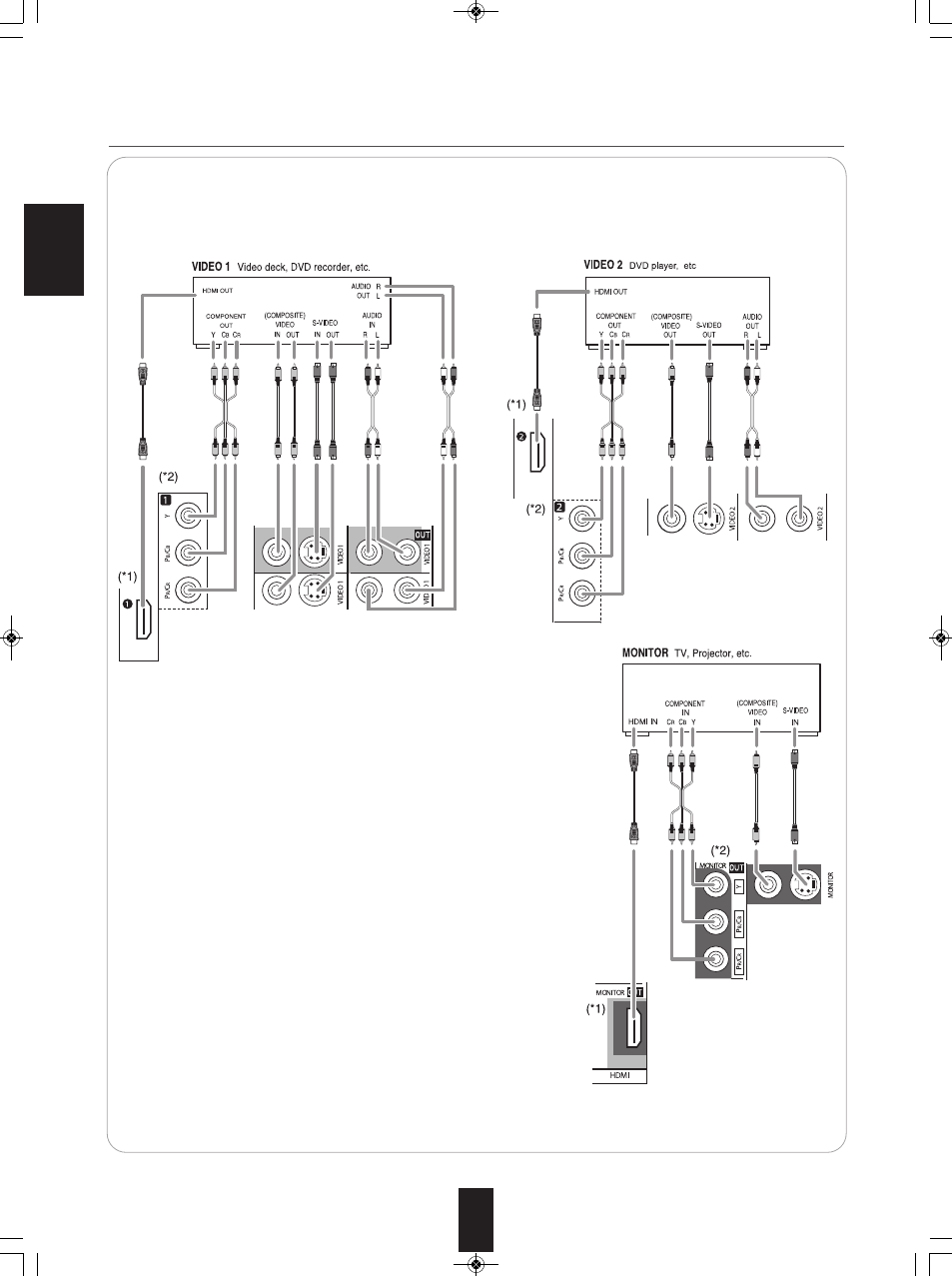

HDMI (High Definition Multimedia Interface) connection : (*1)
• You can connect the source component (DVD player, etc.) to the display
component (TV, projector, etc.) through this receiver with using a
commercially available HDMI cord.
• The HDMI connection can carry uncompressed digital video signals and
digital audio signals.
• The HDMI video stream signals (video signals) are theoretically compatible
with DVI-D. When connecting to a TV monitor, etc., equipped with DVI-D
connector, it is possible to connect using a commercially available HDMI-DVI
converter cord.
Since the HDMI-to-DVI connection cannot carry any audio signals, you should
make audio connections to play the audio signals on the component equipped
with DVI-D connector. (For details, refer to the operating instructions of its.)
• If you connect the HDMI INs to your video components, it is easier to do so
following the default settings.
• If your HDMI connection is different from the default setting, you should assign
the HDMI INs you used with the "When selecting the HDMI Assign" procedure
on page 70.
• The default settings are as follows :
HDMI 1 : VIDEO 1, HDMI 2 : VIDEO 2, HDMI 3 : VIDEO 3, HDMI 4 : VIDEO 4
■
Copyright protection system
• This unit supports HDCP (High-bandwidth Digital Contents Protection),
technology to protect copyright of digital video signals against illegal
duplication. HDCP must also be supported on the components connected to
this unit.
• This unit is HDMI Ver. 1.3 compatible.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI licensing LLC.
