2-57

Remote Control Functions

4. System Controller (SHA-KC64UG)

NOTE

(a) Zone registration using the remote controller (RCS-SH80AG)

(Determination of central address)
In this case, after confirming which indoor unit is connected to the

remote controller and that the air conditioner in the OFF state, you

set the central addresses one at a time.
If the system has no remote controller, connect a remote controller

to the system temporarily. Then follow this procedure.

The indoor unit address must already have been set before performing

zone registration. If necessary, refer to the Installation Manual supplied

with the outdoor unit.
(1) Press the

and

buttons at the same time for more than 4

seconds.

(2) Do not press

button.

(3) Once in this mode, the UNIT No., CODE No., No. of SET DATA and

indications will flash on the display as shown at the right.

In case of group control, “ALL” instead of “UNIT No.” will flash on the

display. Select the main indoor unit address by pressing the

button once.
(4) Set CODE No. to 03 using the

and

(

) buttons.

The CODE No. 03 must be selected to perform zone registration using

the remote controller.
(5) Set the Central address which you want to assign to the indoor unit

address using the and ( ) buttons according to the

zone registration table.

(6) Press the

button. The CODE No. and Central address changes

from flashing to ON state. If you make a mistake, then press the

button and reset the central address.

(7) Press the

button to finish zone registration.

For example, in this case

Indoor unit address:1-8

Central address : 17 (ZONE 2, GROUP 1)

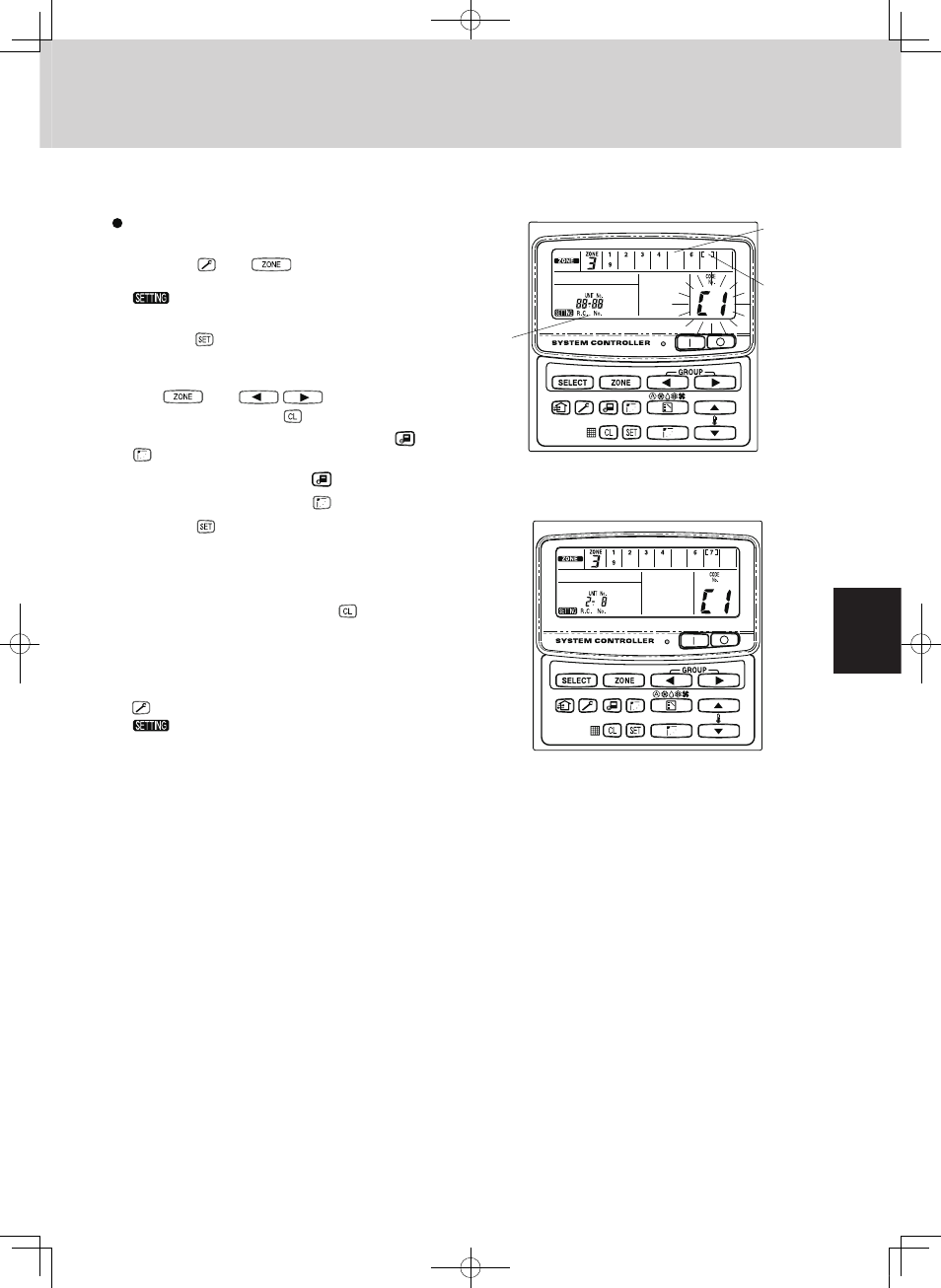

(b) Zone registration using the system controller (SHA-KC64UG)

In this case, you set all central addresses by the

system controller at once manually.

(1) Press the

and

buttons at the same time

for more than 4 seconds.

and CODE No. C1 will flash.

(2) After confirming that CODE No. C1 is displayed,

press the

button. Once in this mode, a change

takes place as shown at the right.

(3) Select the zone and group No. you want to set

with

and

(GROUP) buttons.

If already set, press the

buttons.

(4) Set the unit No. (indoor unit address) with

and

buttons, according to the zone registration table.

R.C. No. ..........................

button

Indoor unit No..................

button

(5) Press the

button.

GROUP No. turns ON and UNIT No. (indoor unit

address) changes from flashing to ON state.

UNIT No. is registered to selected ZONE No. and

GROUP No.

If you make a mistake, press the

button and

reselect the ZONE, GROUP and UNIT No.

(6) Register the other UNIT Nos. in the same way by

following the steps (3) to (5).

(7) Finally, complete the registration by pressing the

button.

flashes for a few minutes, then turns OFF.

Selected

group No. if

no data is

registered.

If no data is

registered,

no number

is displayed.

If data is

registered,

the unit No.

is displayed.

For example, in the case Zone 3, Group No. 7

Unit No. (indoor unit address) 2-8

Unit No. 2-8 is registered to Zone 3, Group No. 7.
