2-42
Remote Control Functions
3. Timer Remote Controller (RCS-TM80BG)

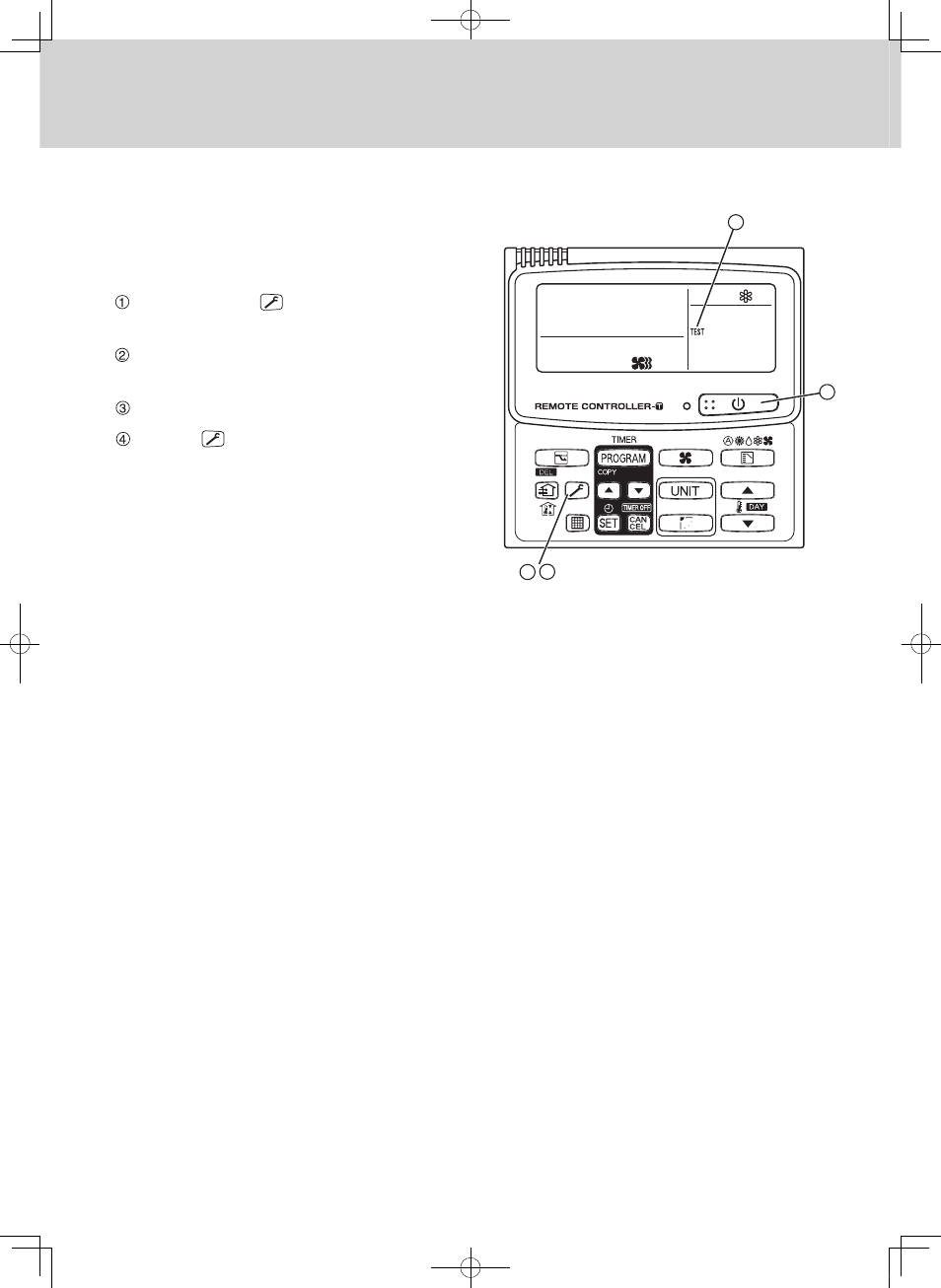

N Test Run Function
Operates the unit with the thermostat forced ON.
Press and hold the button for 4 seconds or
longer.
“Test” appears on the remote controller LCD
display.
Start operation.
Press the button to return to normal remote
controller display.
2
1 4
3
N Calling the Sensor Temperature Display
From the remote controller it is possible to engage
service monitor mode to determine the temperature
at the remote controller, indoor unit, and outdoor unit
sensors.
Refer to the remote controller display.
Press and hold the (CANCEL) and
(TEST/CHK) buttons simultaneously for 4 sec-
onds or longer to engage service monitor mode.
The service monitor illuminates. Initially, the main
indoor unit No., and the temperature for item
code , are displayed.
Press the temperature setting /
buttons to change the sensor number (item code)
to the sensor you wish to monitor. The sensor
numbers are listed on table 1 (below).
Press the (UNIT SELECT) button and
change to the indoor unit that you wish to monitor.
The sensor temperatures of the indoor units
under group control and the corresponding out-
door unit are monitored.
Press the (TEST/CHK) button to return to
normal display.
Display shows a discharge temperature of 85°C
at unit No. 1-1
4
3
2
1
Indoor
Unit
Data
Outdoor
Unit
Data
Item code Data name
00
01
02
03
04
05
0A
0b
0C
0d
0E
11
Room temperature (control in effect) *
Room temperature (remote controller)
Indoor suction temperature
Indoor heat exchanger temperature (E1)
–
Indoor heat exchanger temperature (E3)
06 Discharge Air temperature (BL)
08 Position of Indoor unit Motor Operated Valve (MOV)
Discharge temperature (TD)
–
–
Suction temperature (TS)
Outdoor heat exchanger temperature (C1)
Outdoor Air temperature (TO)
* Main unit only in the case of group control
Table 1
Sensor Temperature Display
Procedure:
Returns to normal display.
1 2 3 4
1 4 3
2
NOTE
The temperature on the remote controller is
displayed in Celsius (C).
Please note that you will not mistakenly read it in
Fahrenheit (F) on the display.
Returns to normal display.
