2-138
Remote Control Functions
8. Remote Sensor (ART-K45AGB)

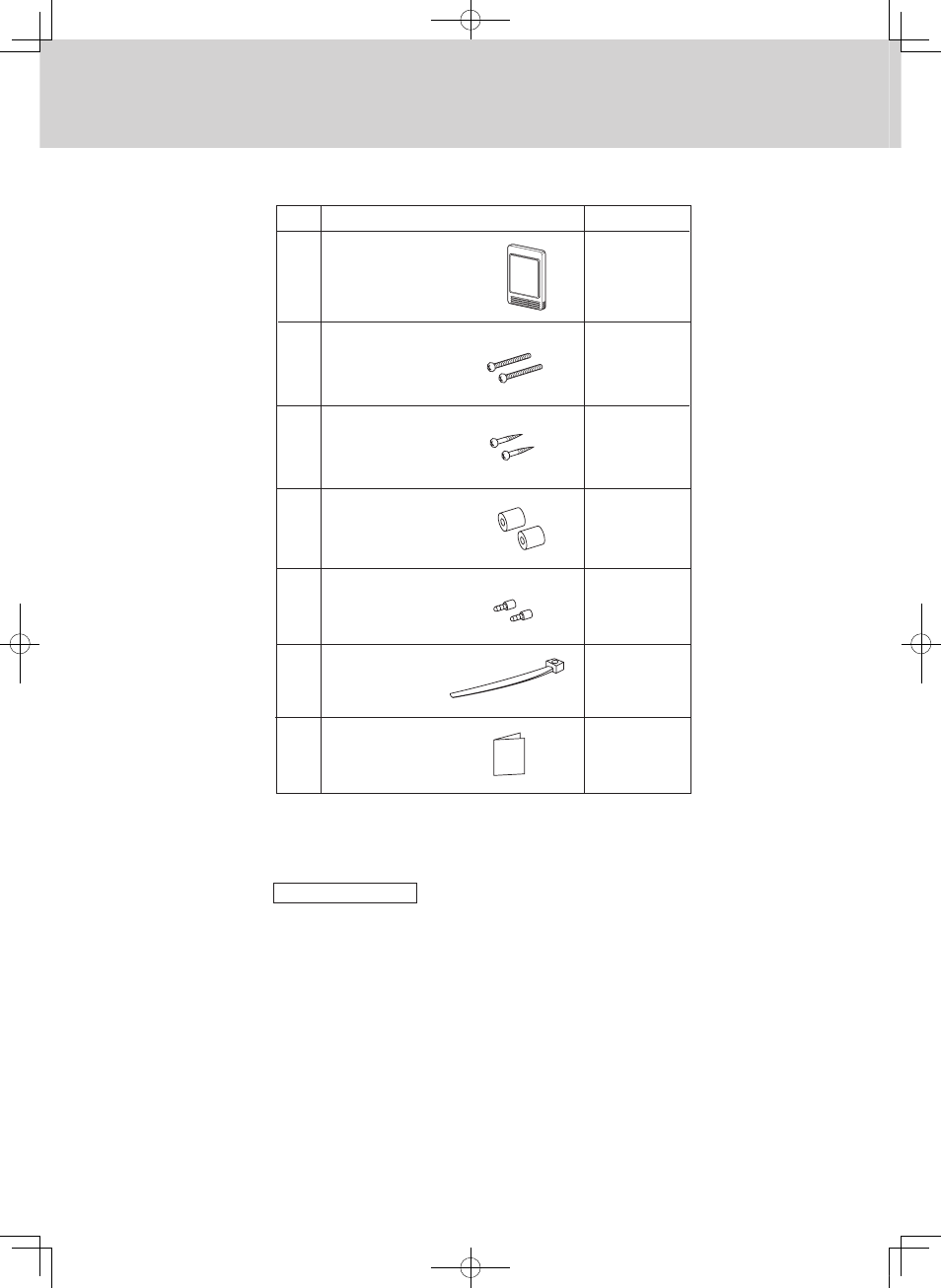

1. Parts supplied with remote sensor
No. Qty
1
2 2
3 2
Machine screws
M4 × 25
(mm)
4 2
5 2
7
6
1
1
1
Spacers
Wire joints
Remote
Installation manual
(comes with 7 - 7/8" wire)
2. Remote sensor installation guidelines
Place of installation
• Mount the remote sensor at a height of 3 - 9/32 to 4 - 59/64 ft. above the floor
where it can sense the average temperature of the room.
• Do not mount the remote sensor in a place exposed to direct sunlight or a place
exposed to outside air such as near a window.
• Do not mount the remote sensor behind an object so that it is separated from the
air circulation of the room.
• Mount the remote sensor within the room being air conditioned.
• The remote sensor must be mounted on the wall or other surface vertically.
Supplied parts
Clamp
Wood screws
1. Insert a screwdriver or the like in the groove on the lower side of the remote
sensor body to pry off the back case. (See Fig. 2-7)
2. Use the 2 supplied M4 machine screws to secure the remote sensor back case.
Prior to mounting, clear the cutouts in the back case corresponding to the
holes in the wall box using a screwdriver or the like. Use the spacers and take
care not to tighten the screws excessively. If the back case will not seat well,
cut the spacers to a suitable thickness.
3. Connect locally supplied 2 core lead wires to the lead wires from the remote
sensor. (See “How to wire the remot e sensor.”)
When connecting the locally supplied 2 core lead wires to the terminal
block, check the terminal numbers in the indoor unit to make sure that
the wires are correctly connected. (See Fig. 2-8)
(The remote sensor is damaged if 208 / 230V AC is applied.)
4. Fit the remote sensor to the tabs of the back case and mount it.
(Fig. 2-7)
3. How to install the remote sensor
< NOTE 1 > Do not twist the remote sensor wiring with the power wiring or run
it in the same metal conduit, because this may cause malfunction.
< NOTE 2 > Install the remote sensor away from sources of electrical noise.
< NOTE 3 > Install a noise filter or take other appropriate action if electrical
noise affects the power supply circuit of the unit.
• Use an electric junction box (supplied locally) (See Fig. 2-6) for flush mounting of
the remote sensor.
(Fig. 2-6)
Simplified remote controller
Under case (back case) Spacer
Machine screws
M4
s 25 (2) (mm)
Electric junction box
for one box (no cover)
Wall
