Getting Started
Connecting the Speakers
After connecting the front, center and rear speakers, and/or a
subwoofer, set the speaker setting information properly to obtain the
best possible Surround effect. For details, see page 15.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.

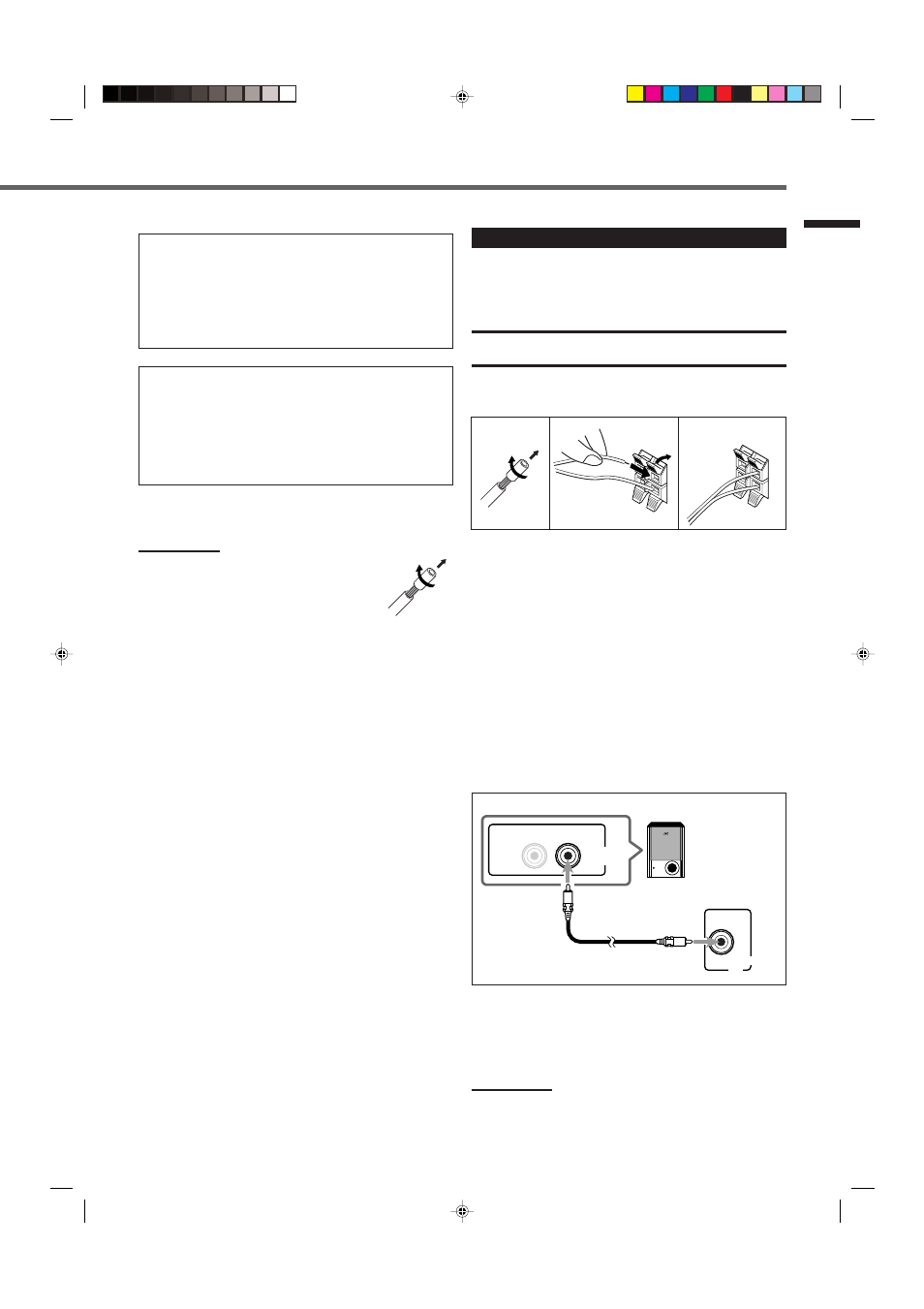

Connecting the front, center, and rear speakers
For each speaker, connect the (+) and (–) terminals on the rear panel
to the (+) and (–) terminals marked on the speakers respectively.
1 Cut, twist and remove the insulation at the end of
each speaker cord (not supplied).
2 Press and hold the clamp of the speaker terminal
(1), then insert the speaker cord (2).
3 Release the finger from the clamp.
Connecting the subwoofer speaker
By connecting a subwoofer, you can enhance the bass or reproduce
the original LFE signals recorded in the digital software.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
• Refer also to the manual supplied with your subwoofer.
Note:
You can place a subwoofer wherever you like since bass sound is
non-directional. Normally place it in front of you.
AM (MW/LW) antenna connection
Connect the AM (MW/LW) loop antenna supplied to the AM
LOOP terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-covered
wire to the AM EXT terminal. Keep the AM (MW/LW) loop
antenna connected.
Notes:
• If the AM (MW/LW) loop antenna wire is covered
with vinyl, remove the vinyl while twisting it as
shown on the right.
• Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
FM antenna connection
Connect the FM antenna supplied to the FM 75 Ω COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω coaxial cable (with a
standard type connector), disconnect the supplied FM antenna.
