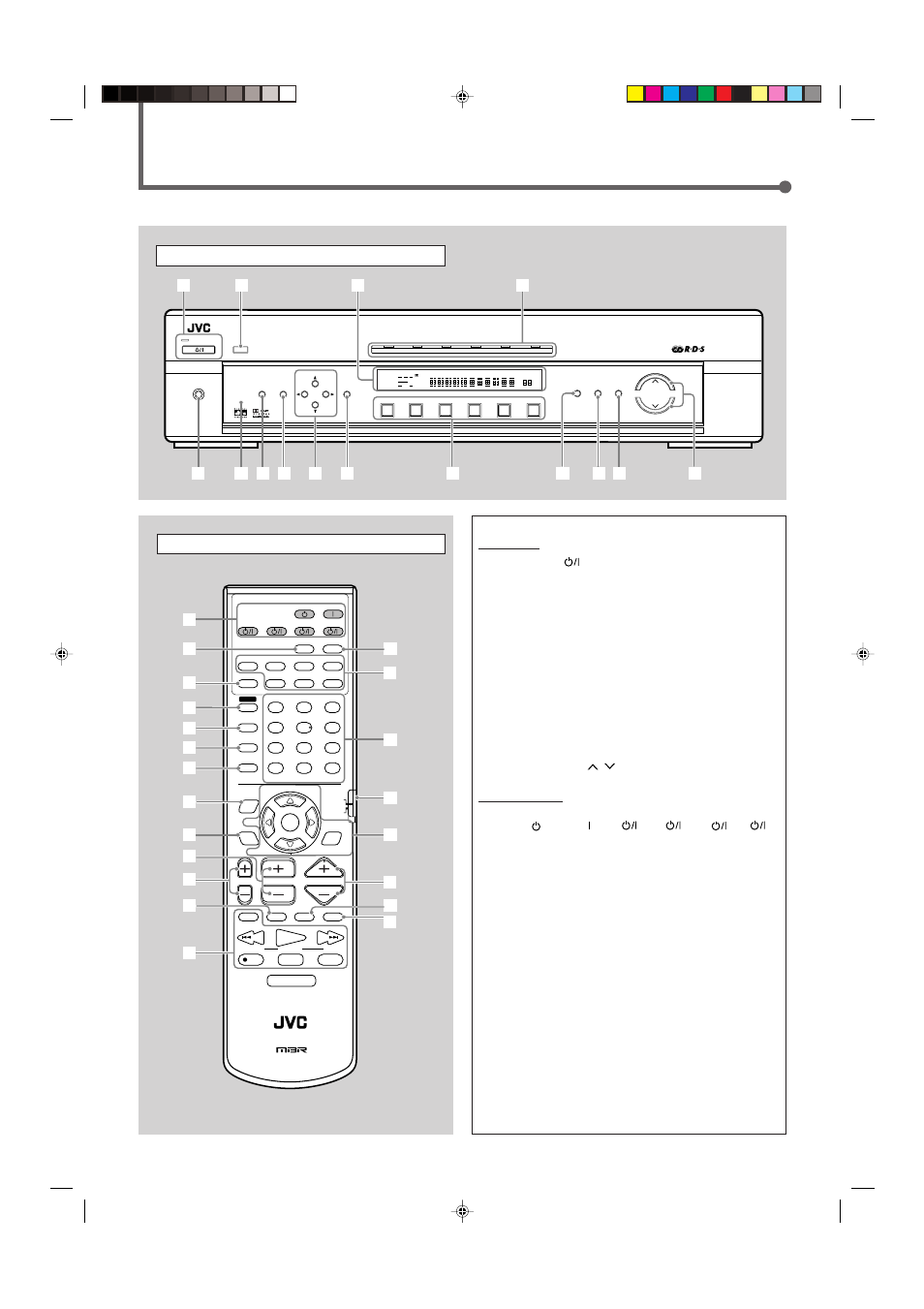

Parts Identification
Front Panel
Remote Control
See pages in the parentheses for details.
ANALOG PL ΙΙ
SUBWFR LFE
SLEEP RDS MODE TA ST TUNED INFO HEWS AUTO MUTING
MH Z KH Z VOL
AUTO
AUTO SR
INPUT ATT
DSP HP
L C R
LS S RS
LPCM DOLBY D
DTS
DVD STB VCR TV TAPE FM/AM
HOME CINEMA CONTROL CENTER
STANDBY/ON
TV DIRECT
MEMORY
CONTROL
ADJUST SETTING
STANDBY
INPUT ANALOG/DIGITAL
INPUT ATT
MASTER VOLUME
SURROUND ON/OFF SURROUND MODE
DVD STB VCR TV TAPE FM/AM
1 2
6 7 8 9 p q e r w 5
3 4
PHONES
t
RM-SRXE111R REMOTE CONTROL
HOME CINEMA CONTROL CENTER
CONTROL
CHANNEL VOLUME TV VOL
TUNING
STOP PAUSE
FF/ /REW
TV/VIDEO VCR DIMMER MUTING
REC
PLAY
DOWN UP
DVD
SLEEP TV DIRECT
DVD STB VCR TV
ANALOG/DIGITAL TAPE FM
BASS + CENTER
TEST BASS – REAR•L
TREBLE + REAR•R
EFFECT TREBLE – SUBWOOFER
RETURN FM MODE
ENTER
RDS
MODE
ON/OFF
AM
1 2 3
4 5 6
7 8 9
10 0 +10
+100
DVD
MENU
VCR TV STB
INPUT
DISPLAY MODE
TA/NEWS/INFO
PTY SEARCH
PTY ( PTY 9
AUDIO
2
8
p
9
w
e
r
1
3
4
5
6
7
q
t
y
u
i
o
;
a
BASS BOOST
DVD MENU
SURROUND
SURROUND
SOUND + –
+ –
+ –
+ –
Front Panel
1 STANDBY/ON button and STANDBY lamp (10)
2 TV DIRECT button (11)
3 Display
4 Source indicators
5 PHONES jack (10)
6 Remote sensor
7 SETTING button (13, 15 – 19)
8 ADJUST button (20 – 22, 36, 37)
9 CONTROL
5 / ∞ / 2 / 3 buttons (13 – 25, 36, 37)
p MEMORY button (24)
q Source selecting buttons (10, 11, 13, 23, 25)
DVD, STB, VCR, TV, TAPE, FM/AM
w INPUT ANALOG/DIGITAL button (13)
INPUT ATT button (20)
e SURROUND ON/OFF button (32, 36, 37)
r SURROUND MODE button (32, 36, 37)
t MASTER VOLUME
/ buttons (10)
Remote Control
1 Standby/on buttons (10, 38, 39)
AUDIO , AUDIO , DVD , STB , VCR , TV
2 SLEEP button (12, 38)
3 ANALOG/DIGITAL INPUT button (13, 38)
4 SOUND button (21, 22, 34, 35, 38)
5 TEST button (33, 34, 38)
6 BASS BOOST button (21, 38)
7 EFFECT button (35, 38)
8 SURROUND ON/OFF button (32 – 35, 38)
9 SURROUND MODE button (32, 33, 35, 38)
p CHANNEL +/– buttons (40 – 42)
q TV VOL +/– buttons (40, 42)
w TV/VIDEO button (40, 42)
e Operating buttons for audio/video components (39 – 42)
r TV DIRECT button (11, 38)
t Source selecting buttons (10, 11, 13, 23, 25, 38 – 42)
DVD, STB, VCR, TV, TAPE, FM, AM
y • 10 keys for selecting preset channels (25, 39, 41, 42)
• 10 keys for adjusting sound (21, 22, 34, 35, 39)
• 10 keys for operating audio/video components (41, 42)
u RDS/DVD MENU selector (26 – 29, 39 – 41)
i Operating buttons for RDS and DVD menu (26 – 29, 39 – 41)
o VOLUME +/– buttons (10, 38)
; DIMMER button (12, 38)
a MUTING button (12, 38)
