13

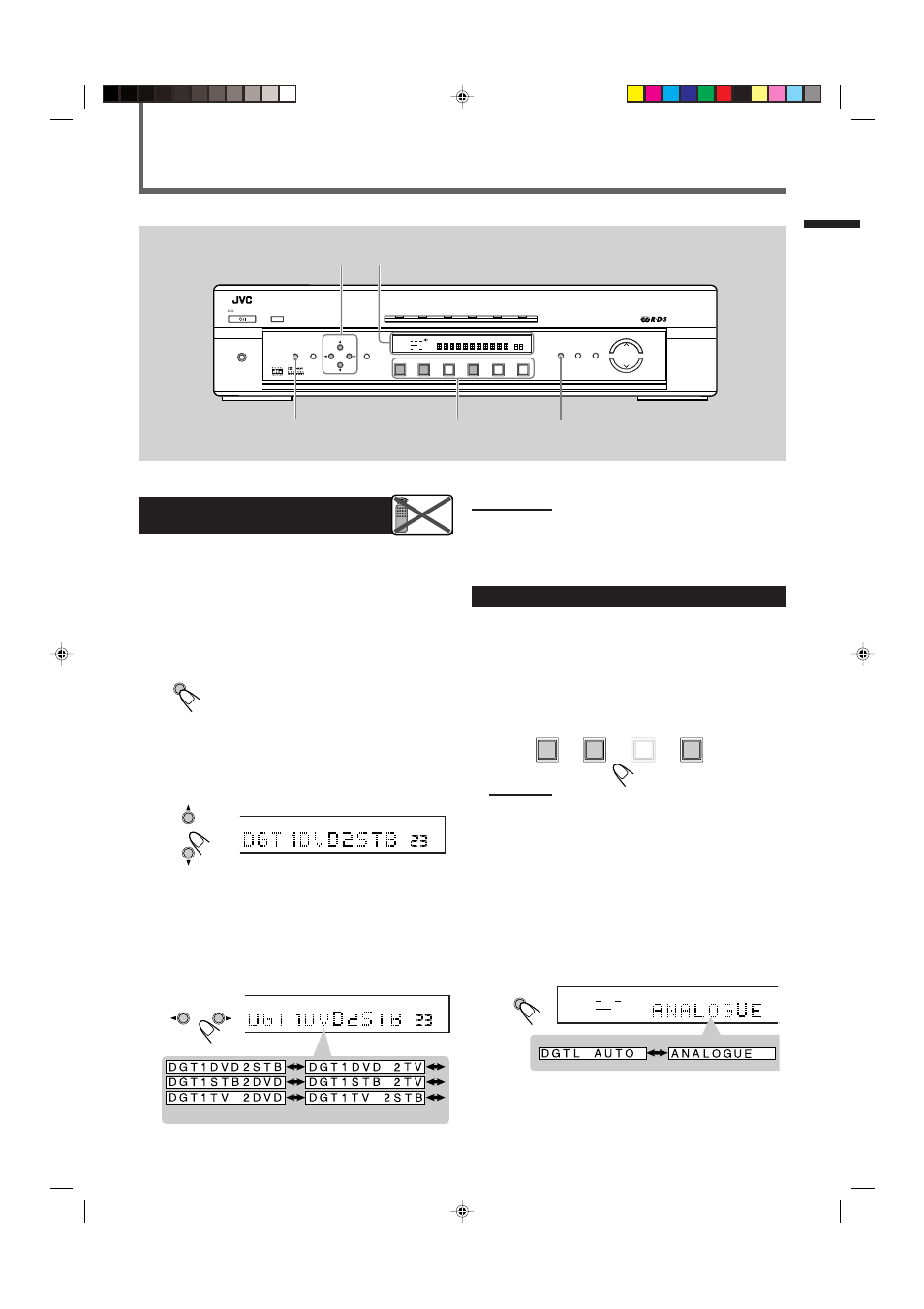

Setting the Digital Input
(DIGITAL IN) Terminals
When you use the digital input terminals, register what components
are connected to which terminals (DIGITAL IN 1/2) so that the
correct source name will appear when you select the digital source.
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step
1 again.
1
Press SETTING.
The CONTROL buttons now work for basic
settings.
2
Press CONTROL
∞ (or 5) repeatedly until
“DGT (Digital)” (with the current setting) *
appears on the display.
* “1DVD2STB” is the initial setting. If you have already
changed setting, another combination will be shown.
3
Press CONTROL
3 (or 2) to select the
appropriate digital terminal setting.
• Each time you press the button, the display changes to show
the following:
Basic Operations / Basic Settings
Note:
When shipped from the factory, the DIGITAL IN terminals have been
set for use with the following components:
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For STB (Set Top Box)
Selecting the Analogue or Digital Input Mode
When you have connected digital source components using both the
analogue connection and the digital connection methods (see page 7),
you need to select the input mode correctly.
1
Press one of the source selecting buttons (DVD,
STB, or TV)
* for which you want to change the
input mode.
Note:
* Among the sources listed above, you can select the digital input
only for the sources which you have selected the digital input
terminals for. (See “Setting the Digital Input (DIGITAL IN)
Terminals”.)
2
Press INPUT ANALOG/DIGITAL (INPUT
ATT)—or ANALOG/DIGITAL INPUT on the
remote control—to select the analogue or digital
input mode.
• Each time you press the button, the input mode alternates
between the analogue input (“ANALOGUE”*) and the digital
input (“DGTL AUTO”).
* “ANALOGUE” is the initial setting.
TO BE CONTINUED TO THE NEXT PAGE
Source selecting buttons
(DVD, STB, TV)
INPUT
ANALOG/DIGITAL
SETTING
Basic Settings
VOL
SETTING
ANALOG PR ΙΙ
SUBWFR LFE
VOL
AUTO SR
INPUT ATT
DSP
L C R
LS S RS
LPCM
DOLBY D
DTS
(back to the beginning)
STB VCR TV DVD
Remote
NOT
STB VCR TV TAPE FM/AM
TV DIRECT
DVD
MEMORY
CONTROL
ADJUST SETTING
STANDBY
INPUT ANALOG/DIGITAL
INPUT ATT
MASTER VOLUME
SURROUND ON/OFF SURROUND MODE
ANALOG PL ΙΙ
SUBWFR LFE
SLEEP MODE TA ST TUNED INFO HEWS AUTO MUTING
MH Z KH Z VOL
AUTO
AUTO SR INPUT ATT
DSP L C R
LS S RS
LPCM DOLBY D DTS
DVD STB VCR TV TAPE FM/AM
HOME CINEMA CONTROL CENTER
STANDBY/ON
PHONES
RDS HP
CONTROL
5/∞/3/2 Display
CONTROL
CONTROL
ANALOG
SUBWFR
L R
DOLBY D DOLBY D
INPUT
ANALOG/DIGITAL
INPUT ATT
