7
FM 75
CO AX IAL
CA UT ION :
SP EA KE R
IM PE DA NC E
8 16
+
–
+
–
+
–
+
–
AM LOOP
AM
EX T
DIG ITAL 2
(STB)
DIG ITAL 1 (DVD) DIGIT AL IN
CENTER SPEAKER
REAR SPEAKERS
RIGHT
LEFT
FRONT SPEAKERS RIGHT
LEFT
OU T
(R EC )
IN (PL AY )
TAPE
SUBW OOFER OUT
AUDIO
VCR
TV
DVD
STB
AV IN/OUT
AV IN
COAXIAL
DIGITAL OUT
A
B
OPTICAL
DIGITAL OUT
C
DVD Player
STANDBY
STANDBY ON
DOLBY D I G I T A L
STB (Set Top Box)
LEFT
RIGHT
AUDIO
TAPE
IN
(PLAY)
OUT
(REC)
OUT IN
LEFT
RIGHT
AUDIO
Cassette Deck
DIGITAL 1
(DVD)
DIGITAL 2
(STB)
DIGITAL IN
AN TENNA
Getting Started
Digital connections
Analogue
connections
TO BE CONTINUED TO THE NEXT PAGE
Illustrations of the input/output terminals
are typical examples.
When you connect other components, refer
also to their manuals since the terminal
names actually printed on the rear vary
among the components.
• When shipped from the factory, the DIGITAL
IN terminals have been set for use with the
following components:
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For STB (Set Top Box)
If you connect other components, change the
digital input (DIGITAL IN) terminal setting
correctly. See “Setting the Digital Input
(DIGITAL IN) Terminals” on page 13.
• Select the digital input mode correctly.
See “Selecting the Analogue or Digital Input
Mode” on page 13.
If you connect a sound-enhancing device such
as a graphic equalizer between the source
components and this unit, the sound output
through this unit may be distorted.

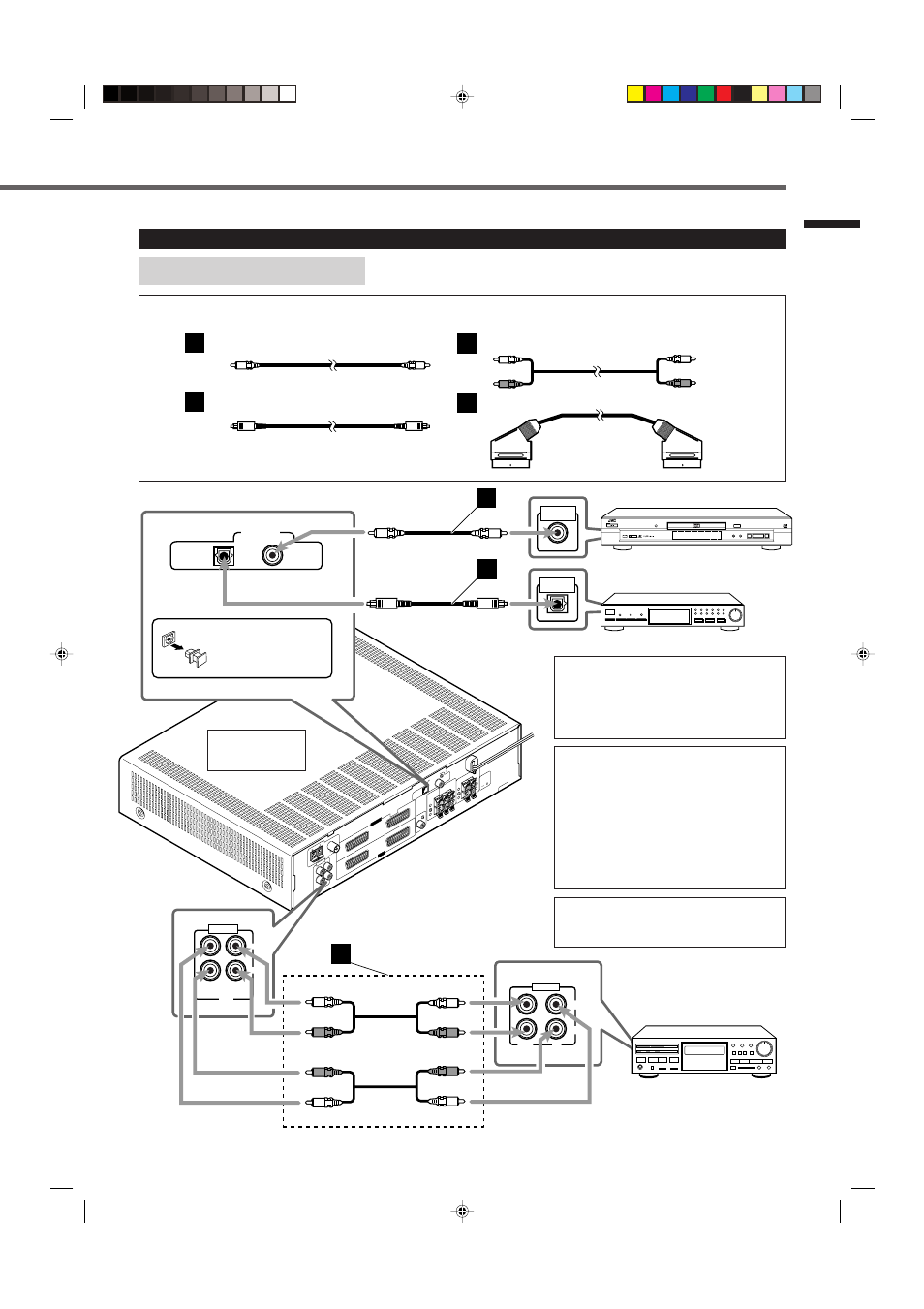

Connecting Audio/Video Components
Digital optical cord (not supplied)
Digital coaxial cord (supplied 1 cable) Audio cord (not supplied)
SCART cable (supplied 1 cable)
Audio cords and optical digital cords are not supplied with this unit. Use the cords supplied for the other components or
purchase them at an audio or electric appliance store.
Turn off all components before connections.
A
B
C
D
RX-E111R/
RX-E112R
Before connecting an
optical digital cord,
unplug the protective
plug.
