8
Getting Started

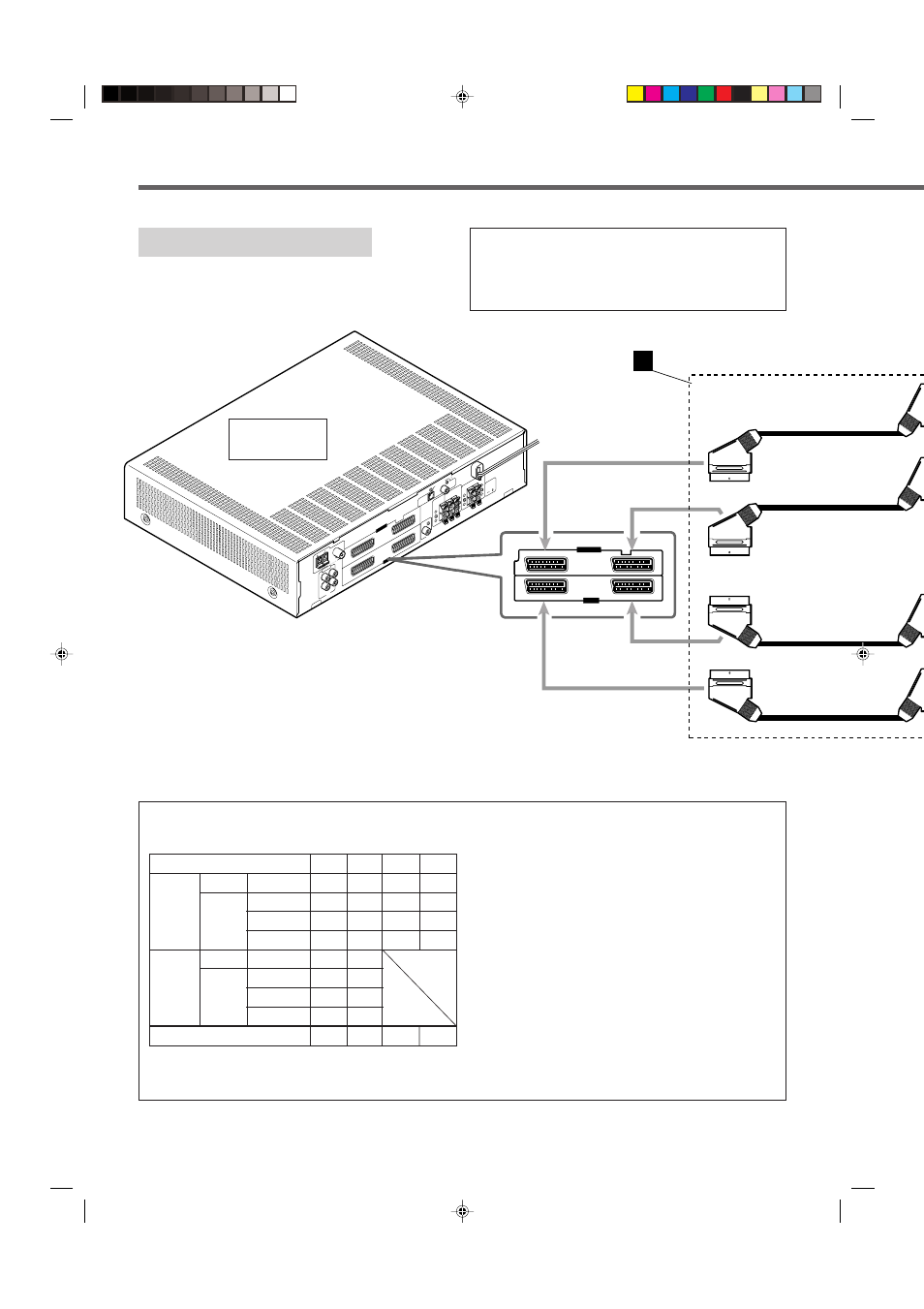

Turn off all components before connections. Illustrations of the input/output terminals below are typical
examples.
When you connect other components, refer also to their
manuals since the terminal names actually printed on the rear
vary among the components.
RX-E111R/
RX-E112R
*1 The signals input from a SCART terminal cannot be output
through the same SCART terminal.
*2 The video format of the output video signals are consistent
with that of the input video signals. For example, if S-video
signals are input to this unit, no signals other than S-video
signals can be output from this unit.
Refer to the manuals supplied with the video components to
check the setting of the input/output video signals.
*3 The signals for T-V LINK function are always going through
the unit.
SCART Terminal Specifications
TV VCR STB DVD
AUDIO L/R ⅜ ⅜ ⅜ ⅜
IN
Composite ⅜ ⅜ ⅜ ⅜
VIDEO S-video − ⅜ ⅜ ⅜
RGB − ⅜ ⅜ ⅜
AUDIO L/R ⅜ * 1
⅜ * 1
OUT
Composite ⅜ * 1 * 2
⅜ * 1 * 2
VIDEO S-video ⅜ * 2
−
RGB ⅜ * 2
−
T-V LINK ⅜ * 3
⅜ * 3
⅜ * 3
⅜ * 3
FM 75
CO AX IAL
CAUTIO
N :
SPEAKER
IMPED ANCE
8 16
+
–
+
–
+
–
+
–
AM LOOP
AM
EXT
DIGIT AL 2
(STB)
DIGIT AL 1
(DVD) DIGIT AL IN
CENTER SPEAKER
REA R S PEAKERS
RIG HT LEF T
FRONT S
PEAK ERS
RIG HT LEFT
OUT (REC)
IN (PLA Y)
TAPE
SUBWOOFER OUT
AUDIO
VCR
TV
DVD
STB
AV IN/OUT
AV IN
D
AV IN/OUT
AV IN
VCR TV
STB DVD
ANTENNA
