300X Series Technical Manual 7610-002-64-22

Issued: 07-26-2006 Revised: N/A

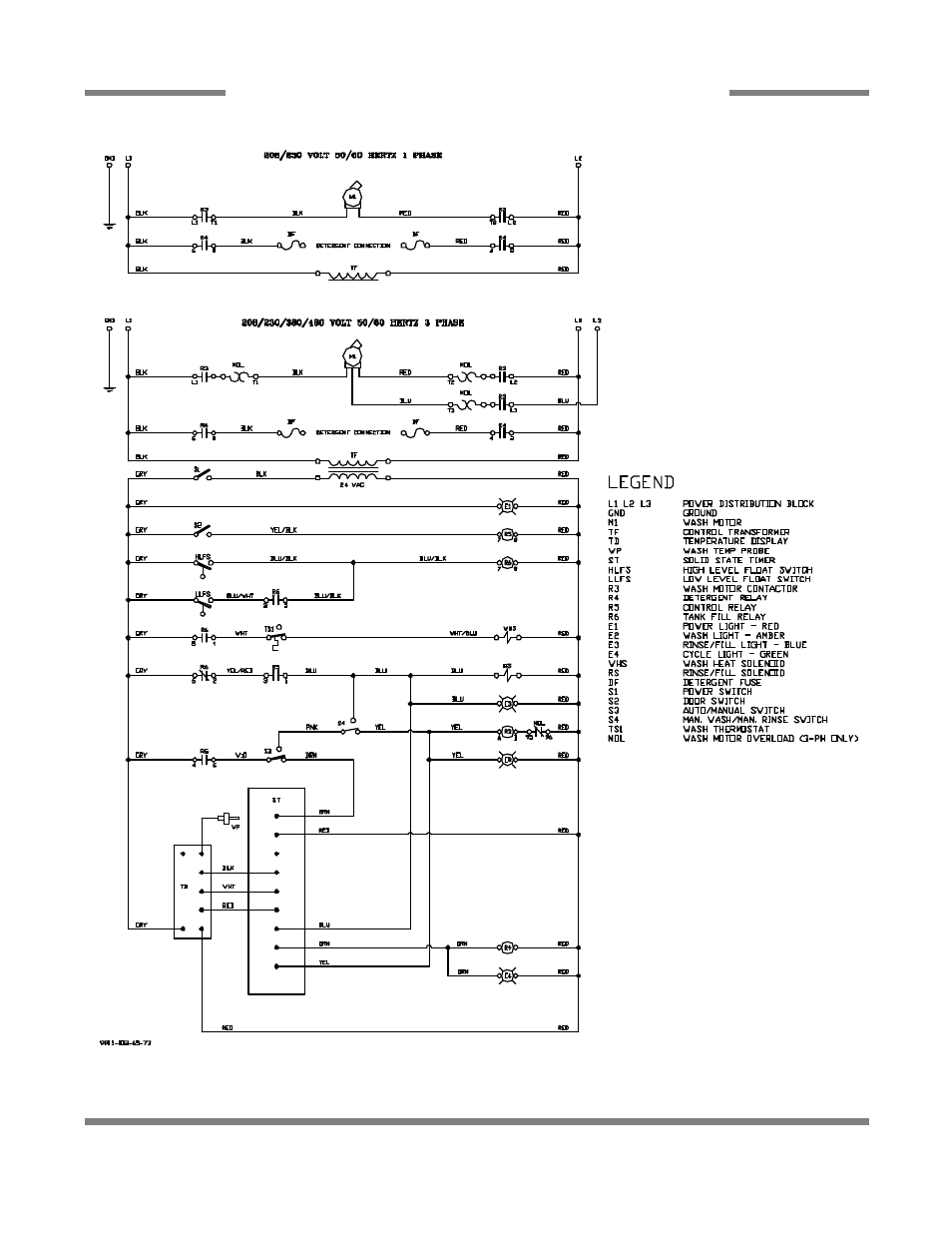

SECTION 7: ELECTRICAL SCHEMATICS

300X/300XN/300XLT 208-230-380-460 VOLT - 50/60 HERTZ - SINGLE & THREE PHASE

64
