Jackson Enodis 300X User Manual

Page 67

background image

300X Series Technical Manual 7610-002-64-22

Issued: 07-26-2006 Revised: N/A

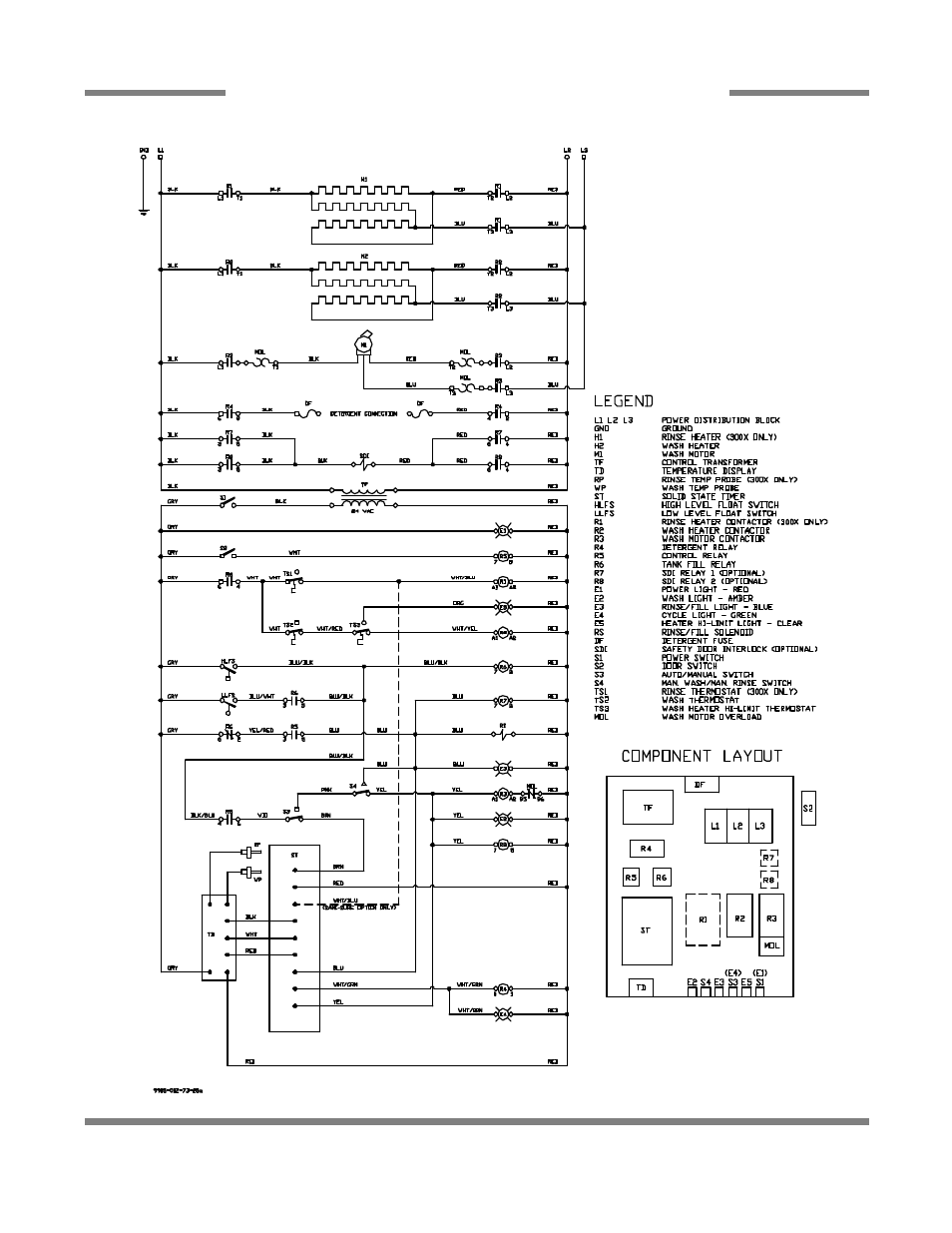

SECTION 7: ELECTRICAL SCHEMATICS

300X/300XN/300XLT 380-440-460 VOLT - 50/60 HERTZ - THREE PHASE

62

This manual is related to the following products:

Enodis 300XN Enodis 300XLT Enodis 300XS
