300X Series Technical Manual 7610-002-64-22

Issued: 07-26-2006 Revised: N/A

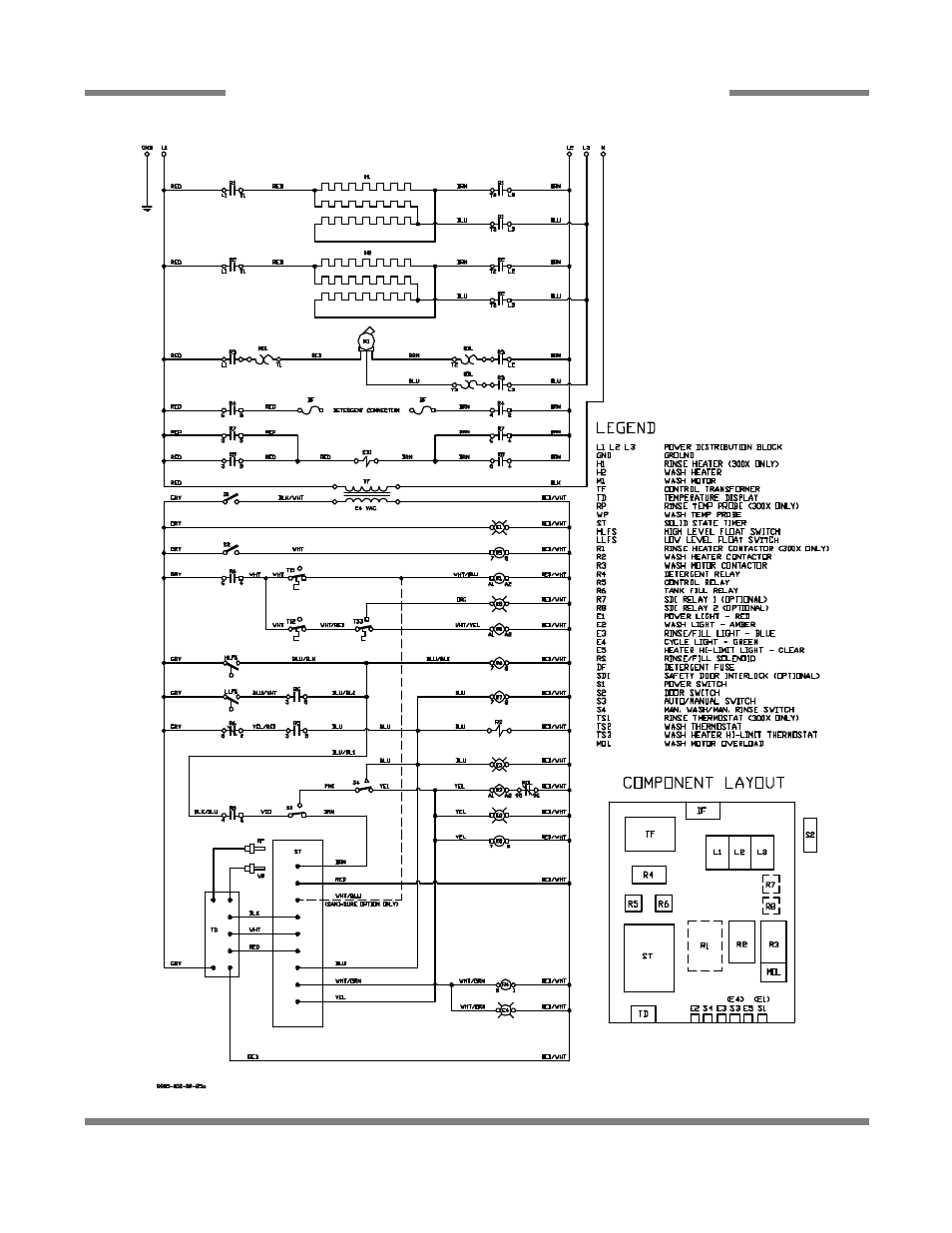

SECTION 7: ELECTRICAL SCHEMATICS

300X/300XN/300XLT 415 VOLT - 50/60 HERTZ - THREE PHASE

63

This manual is related to the following products:

Enodis 300XN Enodis 300XLT Enodis 300XS
