Jackson Enodis 300X - Manual (Page 10)

25 1/4"
4 1/2"
3 3/8"
32"
17 1/2"
1"
C
B
25 1/4"
4 1/2"
4 1/2"
4 7/8"
1"
B
C
17 1/2"
OPENING
76"
B
4 7/8"
13 3/8"
34"
TABLE HEIGHT
56 1/4"
64 3/8"
60 5/8" 61 3/4"
B
12 5/8"
300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

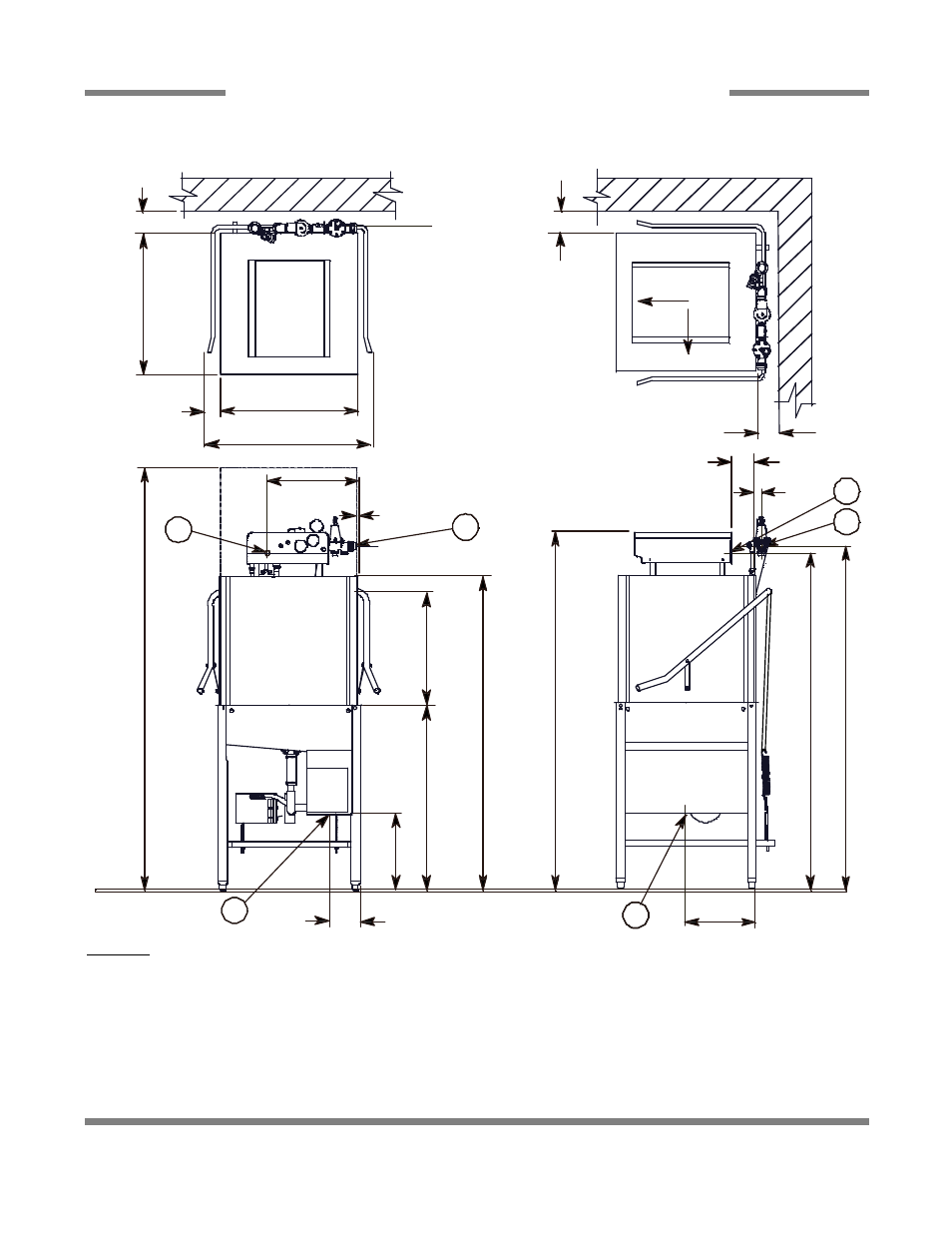

300XN & 300XLT DIMENSIONS
5
LEGEND:
A = Drain (1-1/2” NPT)
B = Water Inlet (1/2” NPT)
C = Electrical Connection
NOTE: All dimensions are in inches unless otherwise specified. All vertical dimensions are adjustable by +/- 1/2” (1.3 cm) due
to the adjustable bullet feet.
