Jackson Enodis 300X - Manual (Page 57)

300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 6: PARTS SECTION

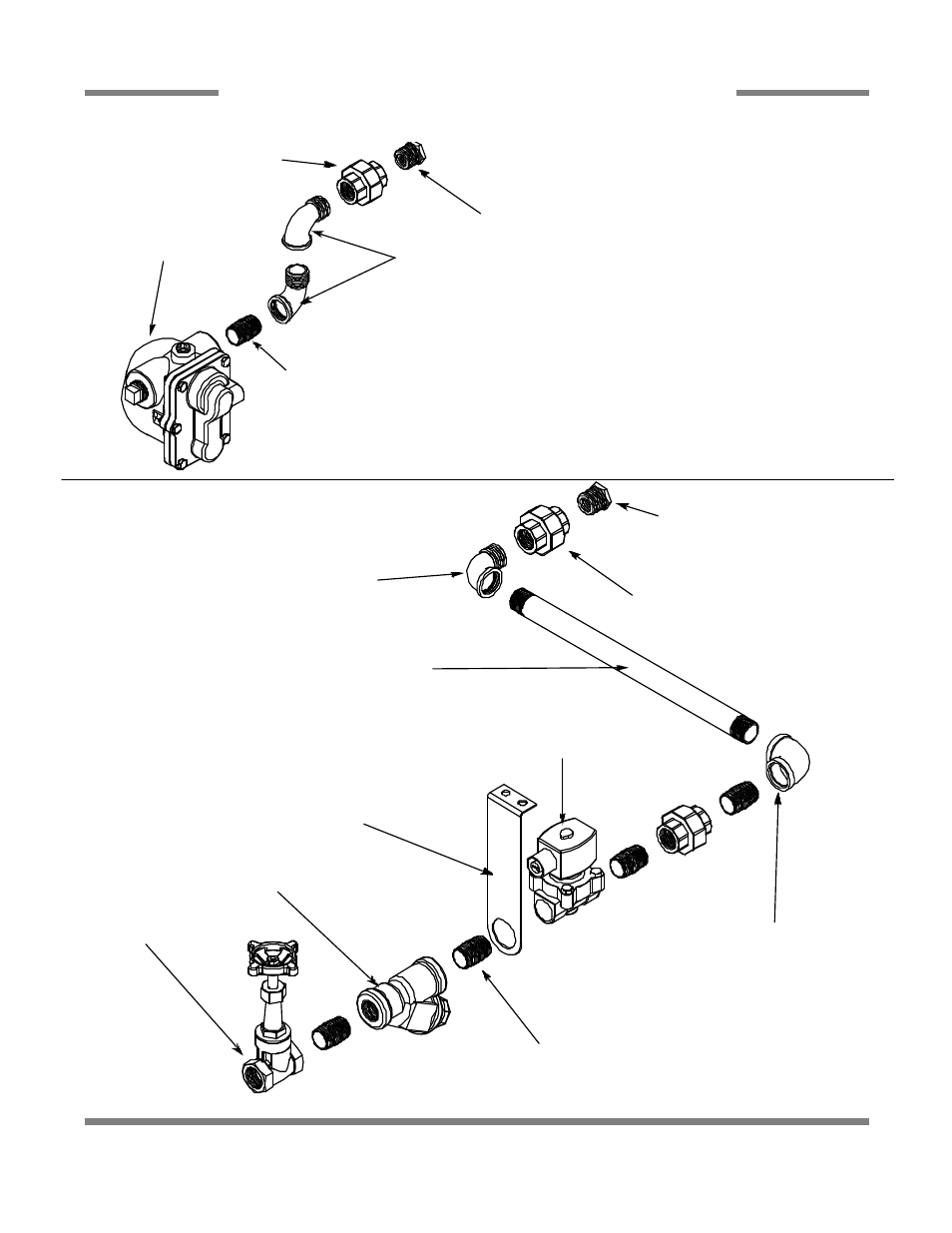

300XS INCOMING STEAM PLUMBING ASSEMBLIES
52
Union, 3/4’’ NPT, Black Iron
04730-912-01-01
Elbow, 3/4” Street
04730-011-87-37
Elbow, 3/4” Street
04730-011-87-37
Steam Trap, 3/4” NPT F&T
06680-500-02-77
Nipple, Close, 3/4’’ NPT, Black Iron
04730-907-01-00
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Bushing, Reducing, 3/4’’ to 1/2’’
04730-911-02-34
Elbow, 90 B 3/4” NPT Black Iron
04730-906-10-34
Union, 3/4’’ NPT, Black Iron
2 per assembly
04730-912-01-00
3/4” NPT Black Iron Pipe
05700-002-20-83
Gate Valve, 3/4” NPT
04820-100-19-00
Bracket, Steam Plumbing Support
05700-002-01-63
Y-Strainer, 3/4” NPT Black Iron
04730-217-01-32
Solenoid Valve, Steam Plumbing, 220V
04820-100-26-34
Nipple, Close, 3/4’’ NPT, Black Iron
4 per Assembly
04730-907-01-00
To order this complete assembly, use part number:
05700-002-01-55
To order this complete assembly, use part number:
05700-002-64-95
