300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 6: PARTS SECTION

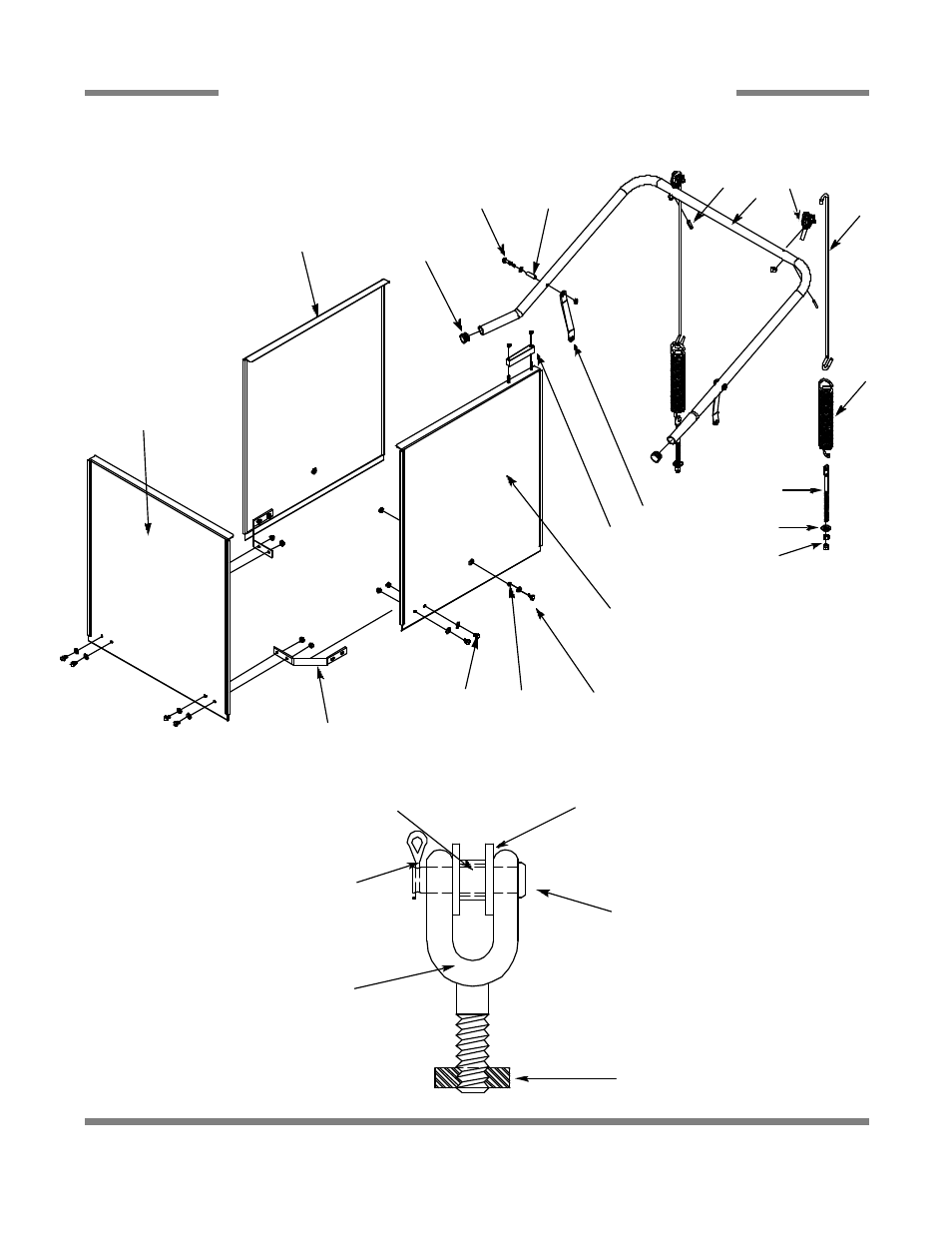

CANTILEVER ARM/DOOR ASSEMBLIES
36
3
5
2
1
6
9
15, 16
17, 18
19, 11, 12 20 19, 11, 21
22
23, 18
7
8
4
24, 18
14
13 10, 11, 12
Washer, Nylon
05311-369-03-00
Yoke
05700-000-75-78
Nut, 3/8"-16 S/S Hex Locking
05310-256-04-00
Clevis Pin
05315-700-01-00
Cotter Pin 3/32" x 3/4"
05315-207-01-00
Bushing
03120-100-03-00
