300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS

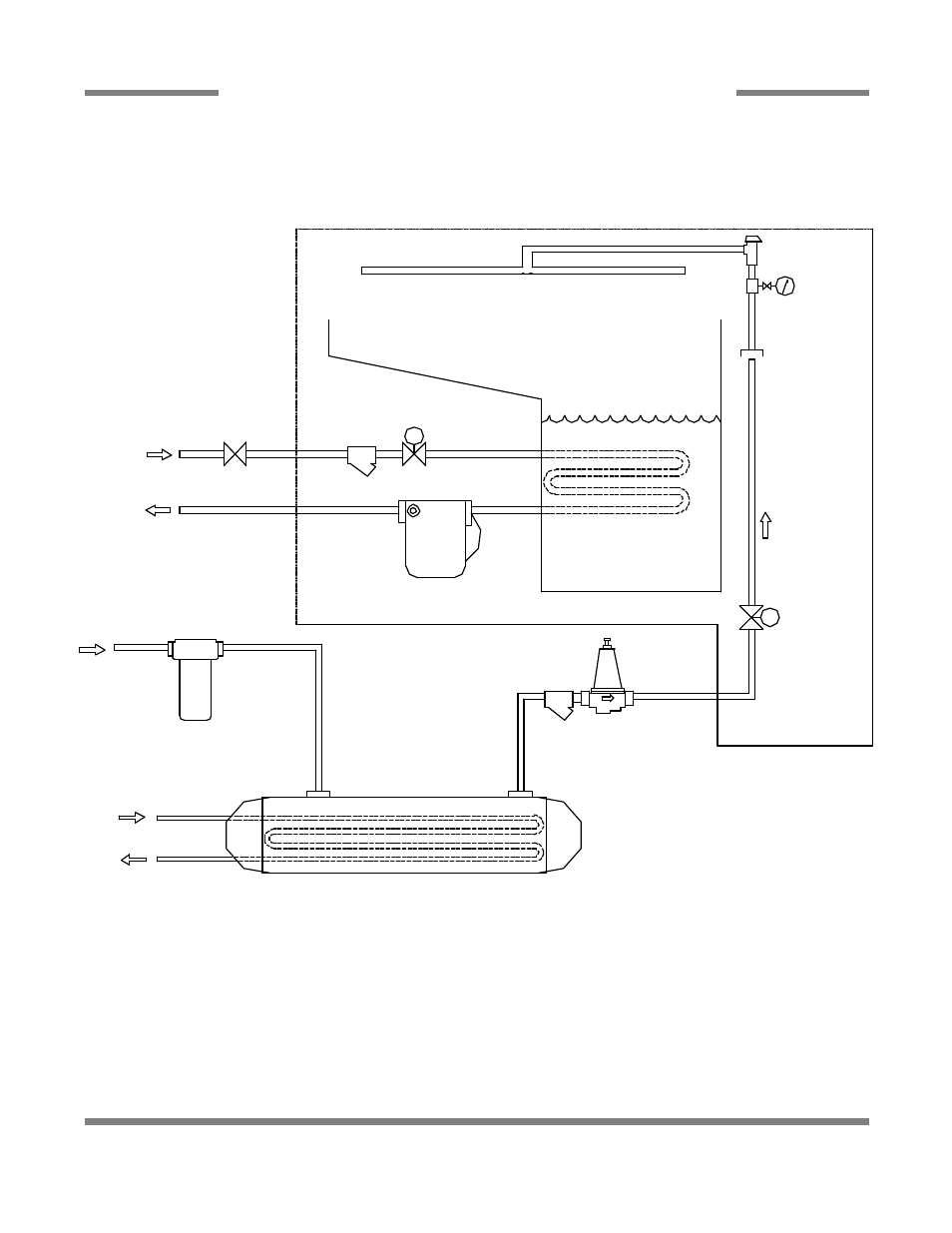

300XS SYSTEM FLOW DIAGRAM
12
S
S
STEAM
TRAP
STEAM COILS
VACUUM
BREAKER
PRESSURE
GAUGE
RINSE
SOLENOID
VALVE
STEAM
SOLENOID
VALVE
Y-STRAINER
MANUAL
SHUTOFF
VALVE
PRESSURE
REGULATING
VALVE
Y-STRAINER
EXTERNAL STEAM BOOSTER
BUILDING
STEAM
SUPPLY
BUILDING
STEAM
RETURN
WATER TREATMENT
CARTRIDGE (IF
INSTALLED)
BUILDING
WATER
SUPPLY
BUILDING
STEAM
SUPPLY
BUILDING
STEAM
RETURN
All items found within the dotted region are found
within the footprint of the machine.
Steam plumbing should be assembled and connected
to the steam booster in accordance with the steam
booster manufacturer’s instructions and applicable
codes.
