SECTION 6: PARTS SECTION

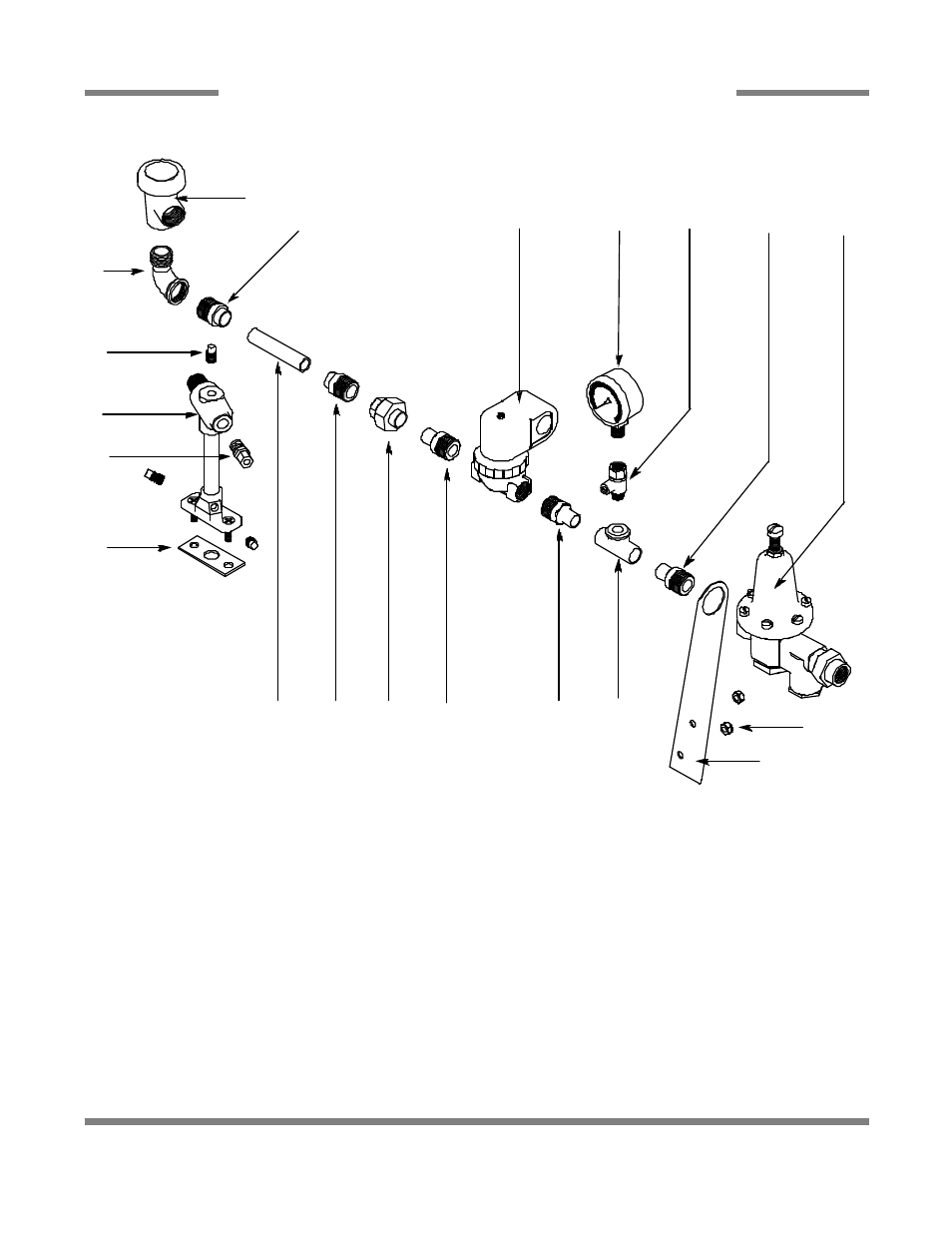

300XN & 300XS INCOMING PLUMBING ASSEMBLY
50
LITEM QTY DESCRIPTION Mfg. No.
1 1 Vacuum Breaker, 1/2” 04820-003-06-13
2 1 Elbow, 1/2" NPT, Brass, Street 04730-206-08-00
3 2 Adapter, 1/2" Male 04730-401-03-01
4 1 Tube, Copper, 1/2" x 3” Long 05700-001-05-21
5 1 Union, 1/2" NPT, Brass 04730-412-05-01
6 1 Adapter, 1/2” MNPT x 1/2” FTG 04730-011-59-53
7 1 Valve, Solenoid, 1/2" NPT 24V 04810-100-59-00
8 1 Tee, Brass, 1/2" NPT x 1/2" NPT x 1/4" NPT 04730-411-25-01
9 1 Gauge, Pressure, 0-100 PSI 06685-111-88-34
10 1 Valve, Ball, 1/4" NPT 04810-011-72-67
11 1 Water Pressure Regulator, 1/2" NPT 04820-100-04-07
12 2 Locknut, 1/4"-20 with Nylon Insert 05310-374-01-00
13 1 Bracket, Plumbing Support 05700-002-64-28
14 3 Plug, 1/8” NPT 04730-209-07-37
16 1 Union, 1/4” 05700-001-16-52
15 1 Rinse Injector 05700-002-63-03
17 1 Gasket, Rinse 05330-111-42-81
2
14
15
16
4 3 5 6 6 8
12
13
6 11 7
1
3
17
9 10
