300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 6: PARTS SECTION

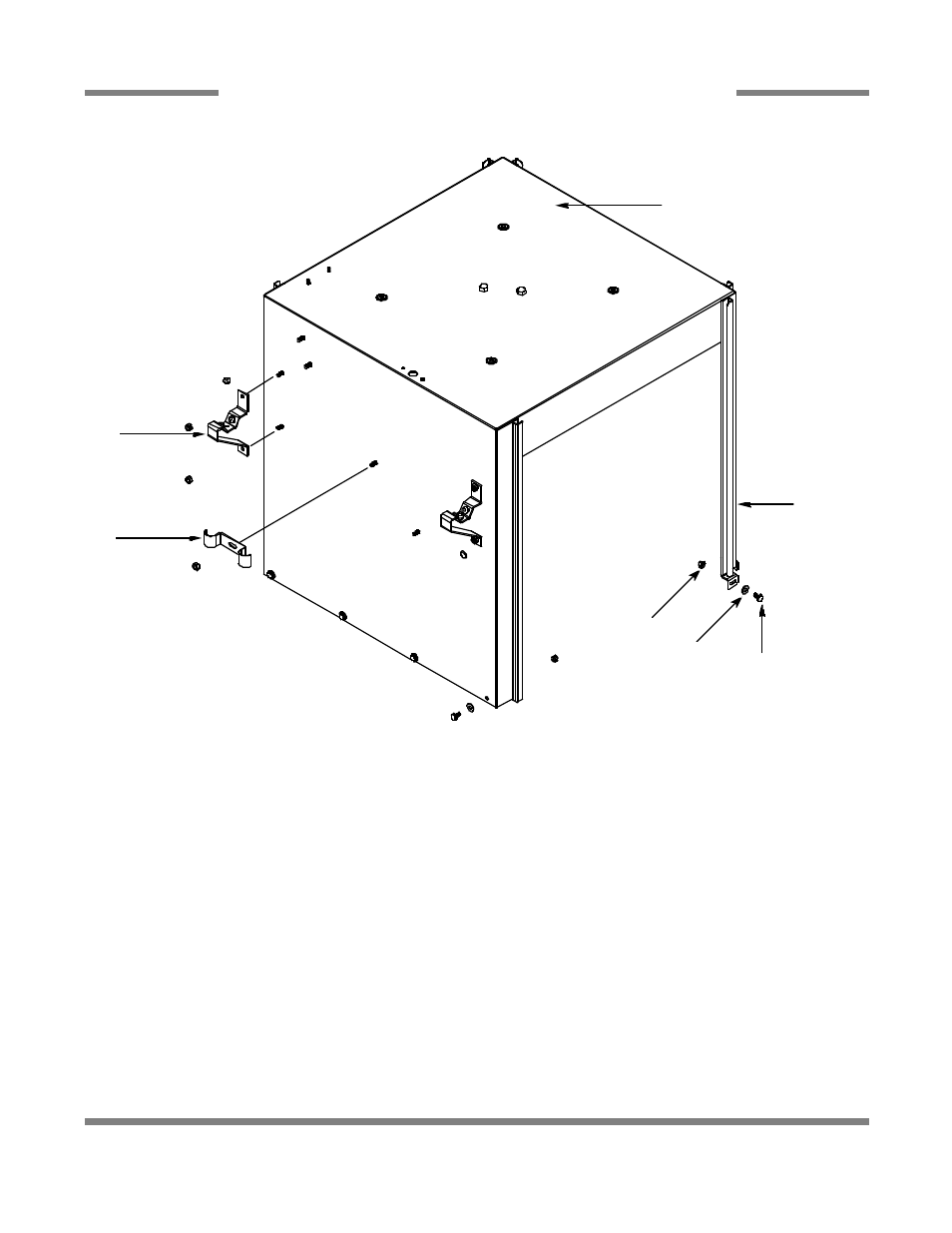

HOOD ASSEMBLY
35
ITEM QTY DESCRIPTION Mfg. No.
1 1 Hood, Single Piece Weldment 05700-002-58-08
2 2 Bracket, Cantilever Support 05700-031-88-00
3 6 Wear Button .50 Dia. 05700-011-88-01
4 1 Clamp, Double 05700-002-23-89
5 8 Bolt, 1/4”-20 x 1/2” S/S Hex Head 05305-274-02-00
6 8 Washer, 1/4” I.D. S/S 05311-174-01-00
7 14 Locknut, 1/4”-20 S/S Hex with Nylon Insert 05310-374-01-00
8 2 Support, Hood Bolted On 05700-002-72-89
1
4
2, 3
5
7
8
6
