300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 6: PARTS SECTION

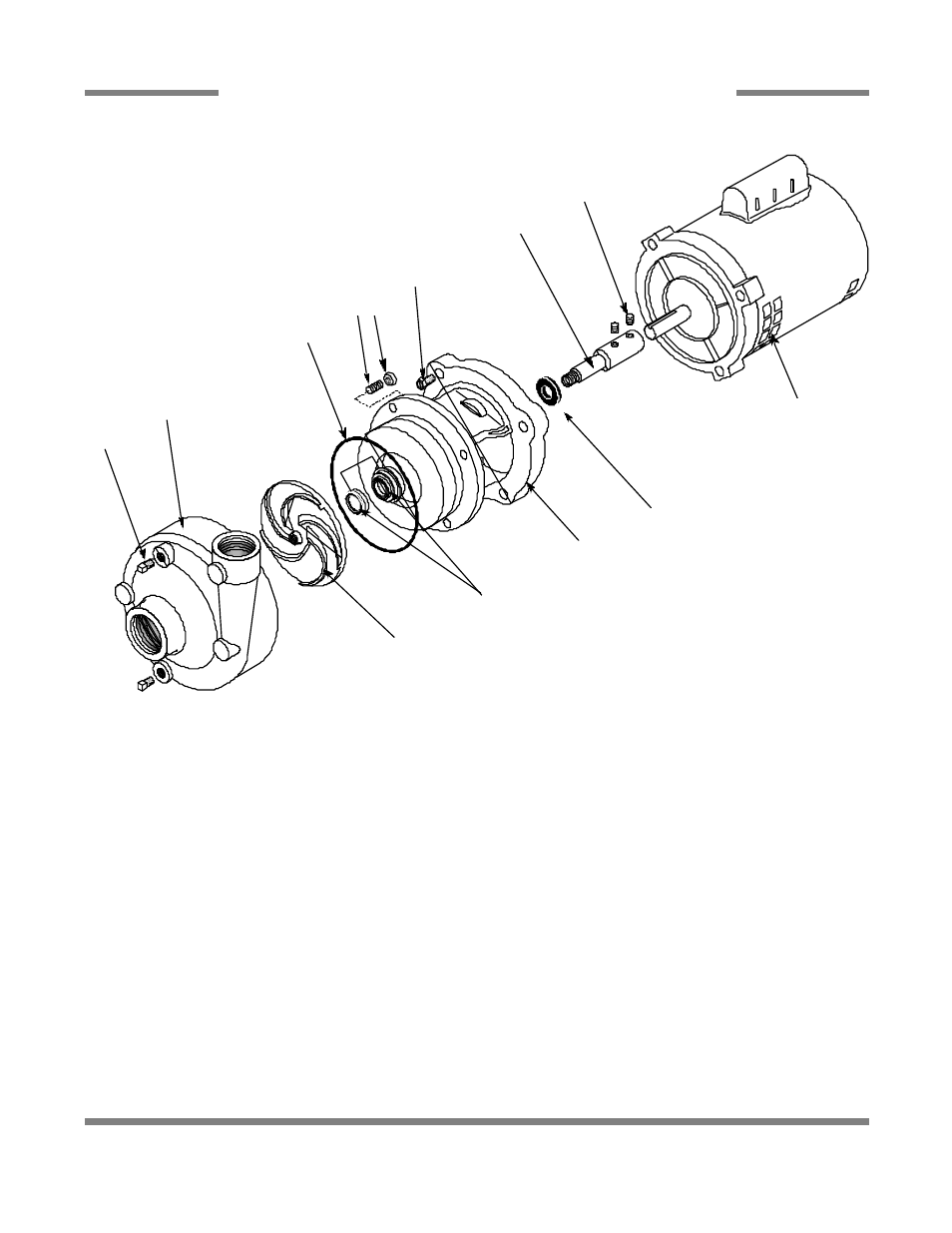

WASH PUMP EXPLODED VIEW
45
ITEM
QTY
DESCRIPTION
Mfg. No.
1
2
Pipe Plug, 1/4” NPT, Brass
04730-209-01-00
2
1
Volute (only available as an assembly)
N/A
3
1
Impeller, Stainless
05700-002-06-19
4
1
O-ring, Housing Seal
N/A
4
1
Flat Gasket
05330-002-00-31
5
1
Pump Seal
05330-002-06-21
6
4
Stud, Socket Head 3/8”-16 x 1 1/2”
N/A
7
4
Nut, Hex, 3/8”-16 S/S
N/A
8
4
Cap Screw, 3/8”-16 x 1-1/4”, S/S
N/A
9
1
Bracket, Motor to Pump
N/A
10
1
Slinger, Pump Shaft
N/A
11
1
Shaft Adapter/Connector
N/A
12
2
Allen Head Setscrew, 1/4”-20 x 1/4”
N/A
1
2
3
5
*4
6** 7
8
9
10
11
12
* Previous models used a flat gas-
ket. O-ring seal can be replaced
with flat gasket. Flat gasket must be
replaced with flat gasket only.
** Apply red Loc-Tite adhesive to
threads before installation into
volute housing. Tighten using 3/16”
allen wrench.
Replacement motors are avail-
able for purchase. Contact
Jackson directly to ensure that
you order the correct motor for
your model.
