SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS

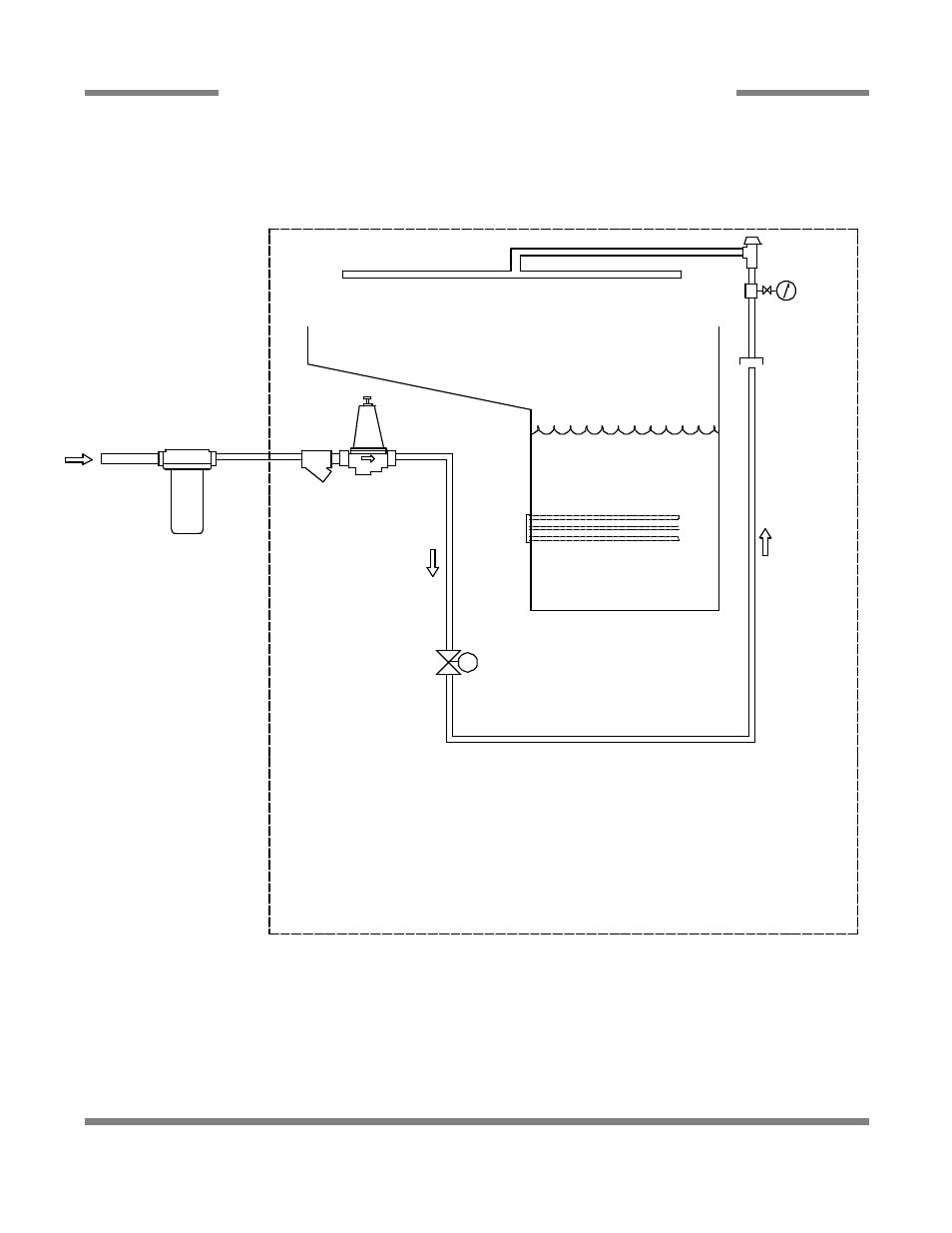

300XN/XLT SYSTEM FLOW DIAGRAM
11
S
RINSE ARM
VACUUM
BREAKER
PRESSURE
GAUGE
RINSE
SOLENOID
VALVE
WASH TANK HEATER
PRESSURE
REGULATING
VALVE
Y-STRAINER
WATER TREATMENT
CARTRIDGE IF
INSTALLED
FROM BUILDING
WATER SUPPLY
