300X Series Technical Manual 7610-002-64-22
Issued: 07-26-2006 Revised: N/A
SECTION 6: PARTS SECTION

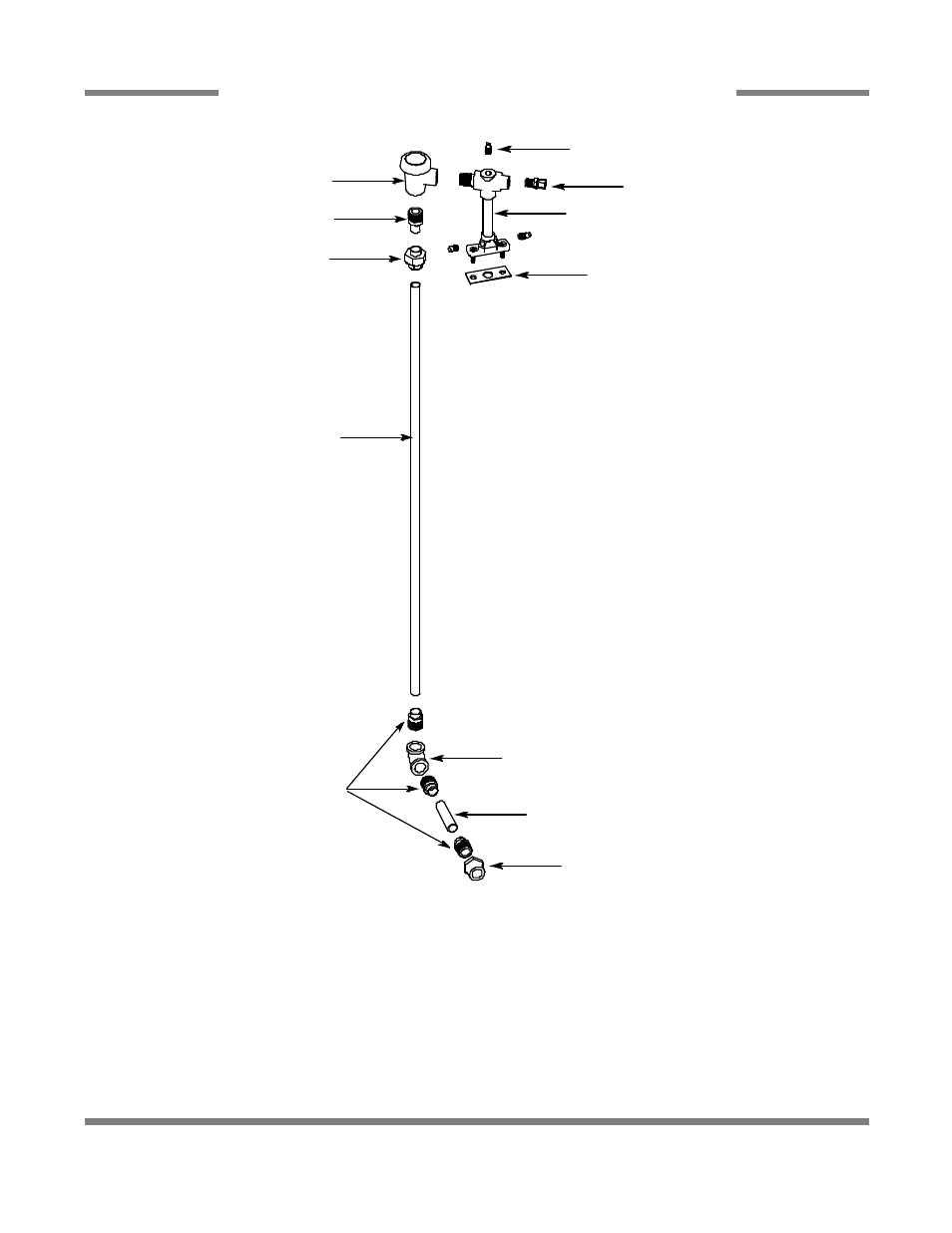

OUTLET PLUMBING
49
ITEM QTY DESCRIPTION Mfg. No.
1 1 Vacuum Breaker, 1/2” 04820-003-06-13
2 1 Adapter, 1/2” MNPT x 1/2” FTG 04730-011-59-53
3 1 Union, 1/2" NPT, Brass 04730-412-05-01
4 3 Plug, 1/8” NPT 04730-209-07-37
5 1 Union, 1/4” 05700-001-16-52
6 1 Rinse Injector 05700-002-63-03
7 1 Gasket, Rinse 05330-111-42-81
8 1 Tube, Copper, 1/2" x 32 3/4" Long 05700-002-62-29
9 3 Adapter, 1/2" Male 04730-401-03-01
10 1 Elbow, 1/2" NPT, 90 B, Brass 04730-011-42-96
11 1 Tube, Copper, 1/2" x 2 3/4" Long 05700-002-62-29
12 1 Bushing, Hex 3/4” 04730-002-56-27
1
4
6
5
7
10
11
12
2
3
8
9
