Page 50

SECTION 7—ARMS

Part No 1026793

Adjusting T-Arm Transfer Assists and/or Side Guards

NOTE: For this procedure, refer to FIGURE 7.10.

1. Remove the T-arm from the wheelchair. Refer to Installing/Removing T-Arms on

2. Remove the two (2) socket screws that secure the side guard to the bottom clamp.

NOTE: Adjusting the side guards will directly affect the position of the transfer assist.

3. Perform one (1) of the following:

• Small Side Guards - Move the bottom clamp up one (1) of two (2) mounting

positions in the side guard.

• Large Side Guards - Move the bottom clamp up one (1) of three (3) mounting

positions in the side guard.

4. Re-secure the side guard to the bottom clamp with the two (2) socket screws. Torque

to 80-90 in./lbs.

5. Install the T-arm onto the wheelchair. Refer to Installing/Removing T-Arms on

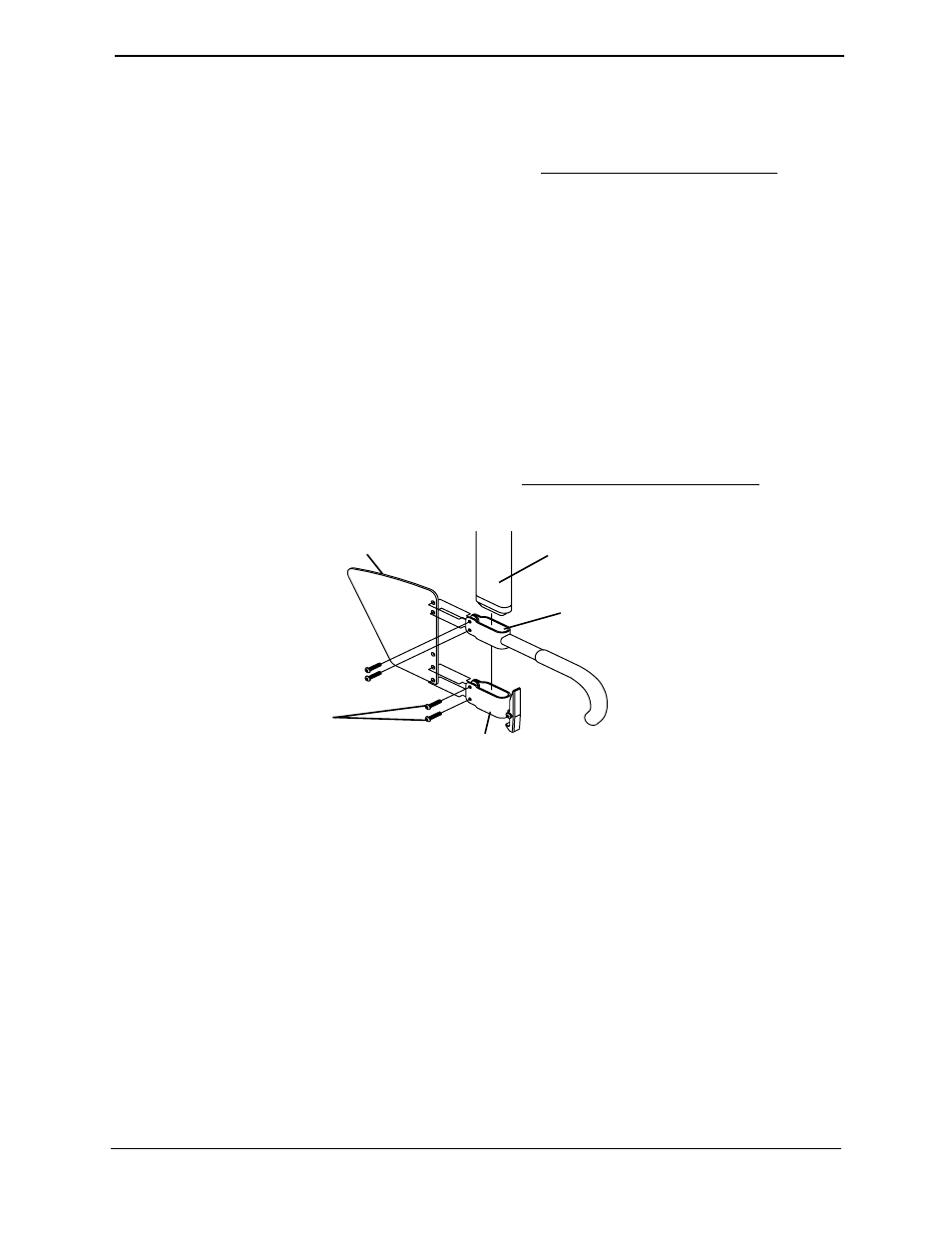

FIGURE 7.10 Adjusting T-Arm Transfer Assists and/or Side Guards

Transfer Assist

Slide Guard

T-Arm

Socket

Bottom Clamp
