SECTION 7—ARMS
Part No 1026793
43

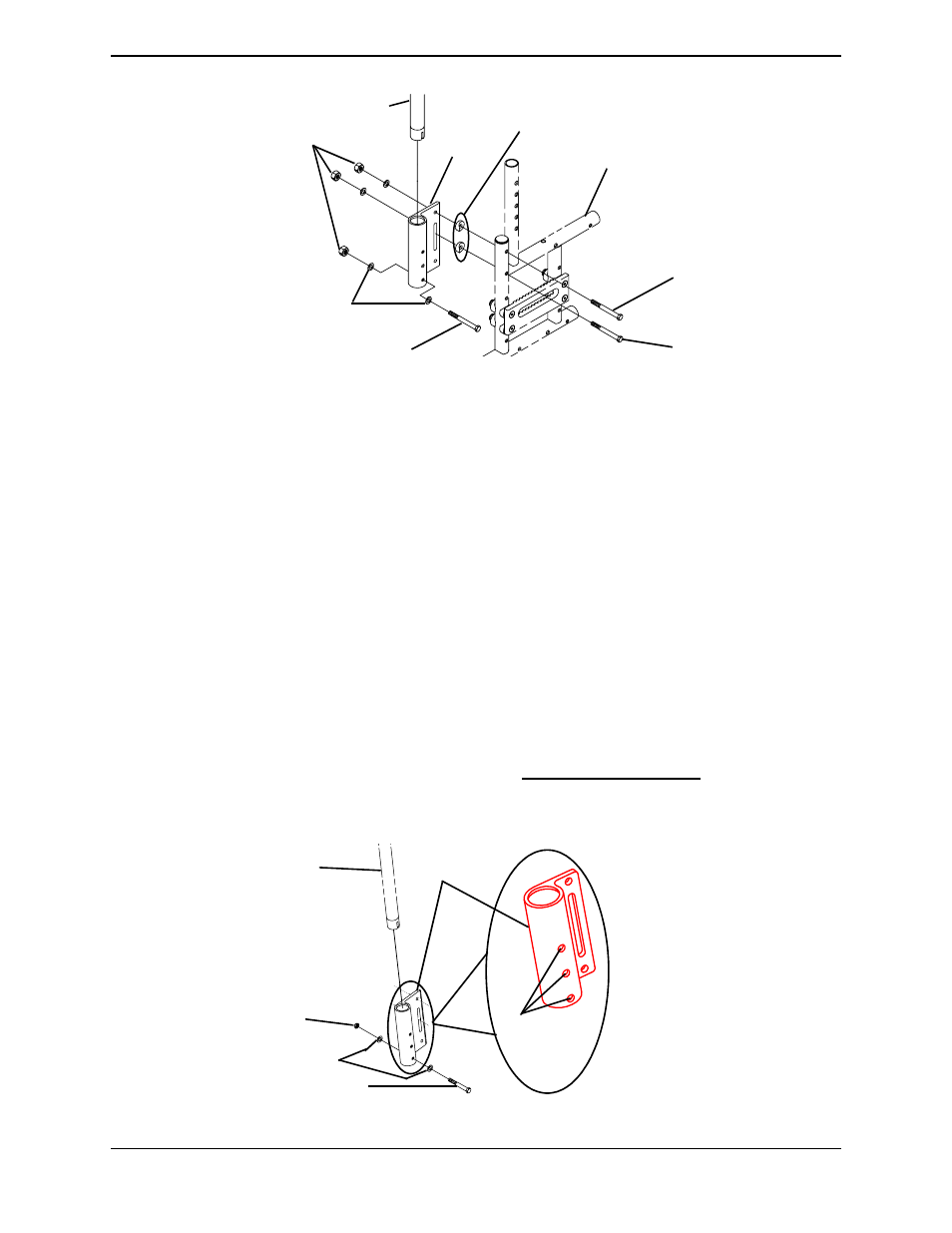

FIGURE 7.1 Installing the Half Arm
Adjusting Half Arm Height
NOTE: For this procedure, refer to FIGURE 7.2.
1. Remove the half arm from the arm socket.
2. Remove the hex screw, two (2) washers and locknut mounted in the arm socket that
determine the half arm height.
3. Reposition hex screw and one (1) washer to one (1) of three (3) positions in the arm
socket depending on the desired height.
4. Retighten the hex screw and washer to the arm socket with the remaining washer and
locknut.
5. Reinstall the half arm into the arm socket.
6. Repeat STEPS 1-5 for the opposite side, if necessary.
NOTE: If desired height is still not obtainable, refer to Installing the Half Arm on page 42, to
reposition the arm socket on the wheelchair with the top hex screw in the top mounting hole of the
arm socket and the bottom hex screw in the slot of the arm socket.
FIGURE 7.2 Adjusting Half Arm Height
Half Arm
Arm
Socket
Coved
Washers
Locknuts
Washers
Wheelchair Frame
Hex Screw
TOP Hex
Screw
BOTTOM
Hex Screw
Half
Arm
Arm Socket
Hex Screw
Locknut
Washer
Three (3)
Mounting
Positions
