SECTION 6—SEAT
Part No 1026793 39 Xtra™
Replacing Seat Upholstery
NOTE: For this procedure, refer to FIGURE 6.2.
1. Remove the seat cushion, if necessary,
from the wheelchair.
2. Remove the phillips screws that secure
the existing seat upholstery to the seat
frame.
NOTE: The number of phillips screws will vary
depending on the depth of the wheelchair.
3. Remove the existing seat upholstery.
4. Install the new seat upholstery by
reversing STEPS 1-3.
5. If necessary, reinstall the seat cushion
onto the wheelchair.

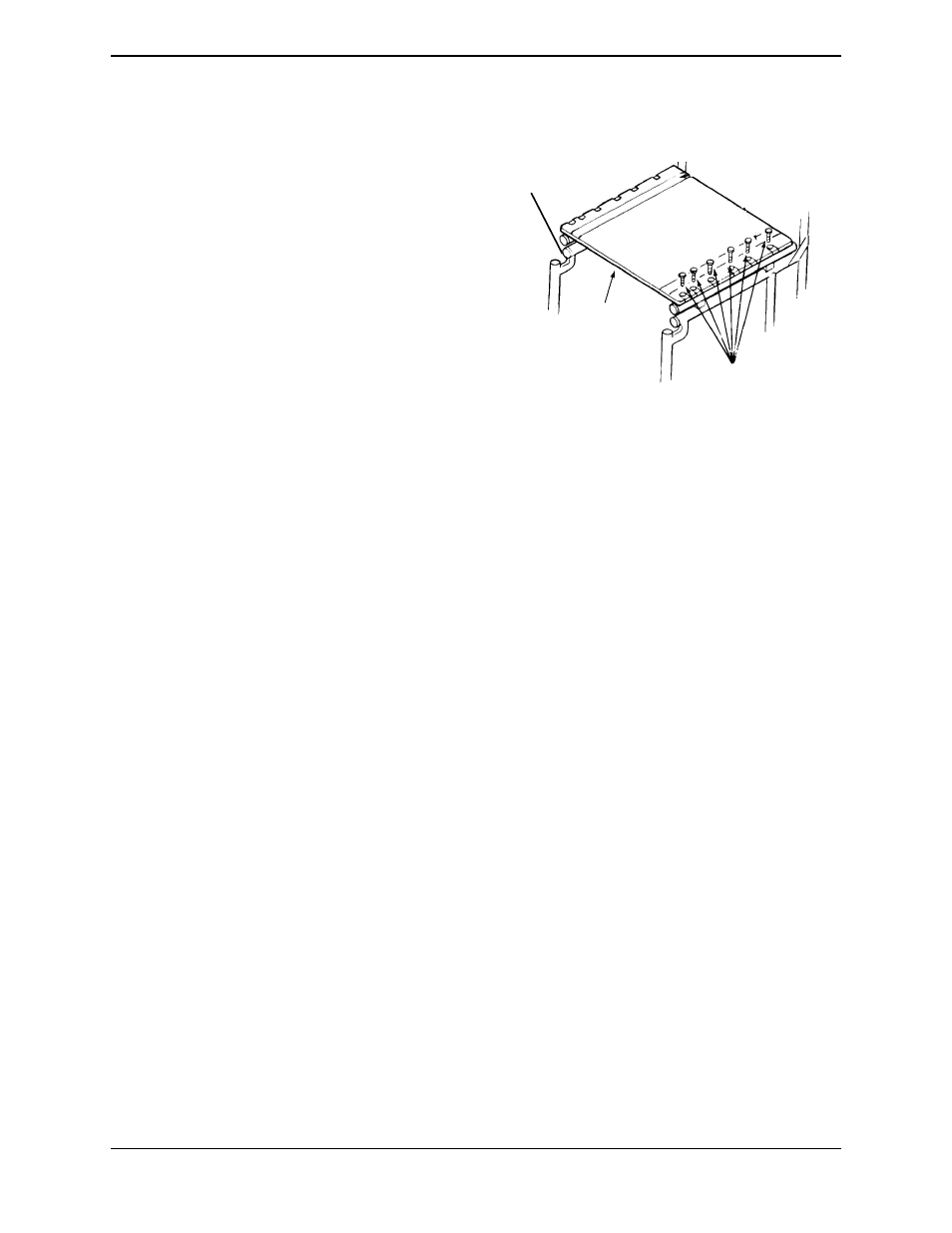

FIGURE 6.2 Replacing Seat Upholstery
Installing/Removing Seat Positioning Strap
NOTE: For this procedure, refer to FIGURE 6.3.
1. Remove seat cushion from wheelchair, if necessary.
2. Remove the REARMOST mounting screws that secure the seat upholstery to the seat
rail as shown in FIGURE 6.3.
3. Grasp the rear edge of the seat upholstery and lift up to expose the rearmost mounting
holes in seat rail.
4. Do one (1) of the following:
a. To install the seat positioning strap, proceed to STEP 5.
b. Remove the existing seat positioning strap from the wheelchair.
5. Secure the two (2) halves of the new seat positioning strap together.
6. Position one (1) end of the new seat positioning strap between the seat upholstery and
the seat rail.
7. Align the mounting holes on the seat upholstery, seat rail, and one (1) end of the new
seat positioning strap.
8. Secure the new seat positioning straps and seat upholstery to the seat rail with the two
(2) mounting screws. Torque to 25-30 in./lbs.
NOTE: Ensure strap is oriented properly and not twisted when installing.
9. Repeat STEPS 6-8 for opposite side of the seat positioning strap.
10. Reinstall seat cushion onto wheelchair, if necessary.
Seat Frame
Seat
Upholstery
Phillips Screws
