SECTION 7—ARMS
Part No 1026793 47 Xtra™
• Tighten - Tightening the set screws on the outside T-arm post will make it harder
to move the inside T-arm post up and down.
• Loosen - Loosening the set screws on the outside T-arm post will make it easier to
move the inside T-arm post up and down.
3. Lock the T-arm by flipping the T-arm release lever towards the front of the wheelchair.

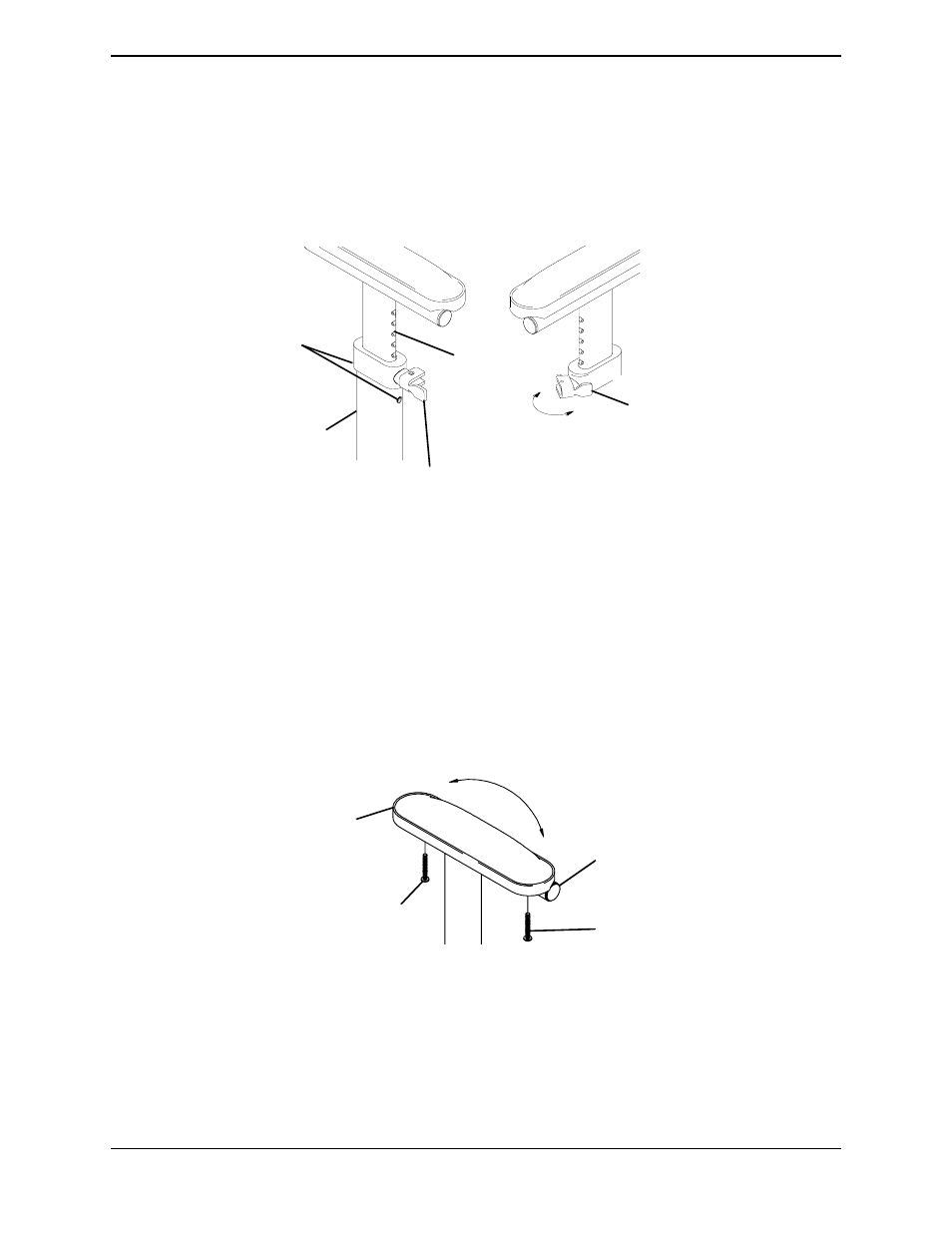

FIGURE 7.6 Adjusting T-Arm Height
Adjusting T-Arm Width
NOTE: For this procedure, refer to FIGURE 7.7.
1. Remove the two (2) phillips screws that secure the arm pad to the arm tube.
2. Turn the arm pad around and reposition the arm pad on the arm tube.
3. Re-secure the arm pad to the arm tube with the two (2) phillips screws. Tighten
securely.
4. Repeat for the opposite side, if necessary.
FIGURE 7.7 Adjusting T-Arm Width
T-Arm Release Lever -
Unlocked Position
Set Screws
Outside T-Arm Post
T-Arm Release Lever - Locked Position
Inside T-Arm
Post
Phillips
Arm Pad
Phillips Screw
Arm Tube
