SECTION 7—ARMS
Part No 1026793 49 Xtra™
Adjusting T-Arm Sockets
NOTE: For this procedure, refer to FIGURE 7.9.
1. Remove the rear wheels from the wheelchair, if necessary. Refer to Removing/
Installing Rear Wheels on page 51.
2. Loosen, but do not remove the four (4) hex screws and washers that secure T-arm
socket to T- arm clamp.
NOTE: The T-arm socket will disassemble if the four (4) hex screws and washers are removed.
3. Slide the T-arm into the T-arm socket until the locking lever is in the slot in the T-arm
socket and an audible "click" is heard.
4. Squeeze the T-arm socket the T-arm clamp together until the socket is flush with the
T-arm.
5. While holding the T-arm socket and the T-arm clamp together, tighten the four (4) hex
screws and washers. Torque to 80-90 in./lbs.
6. Press in on the locking lever and lift the T-arm straight up and out of the T-arm socket.
7. Repeat STEPS 3-6, if necessary until the T-arm slides in the T-arm socket as desired.
8. If necessary, install rear wheels. Refer to Removing/Installing Rear Wheels on page 51.

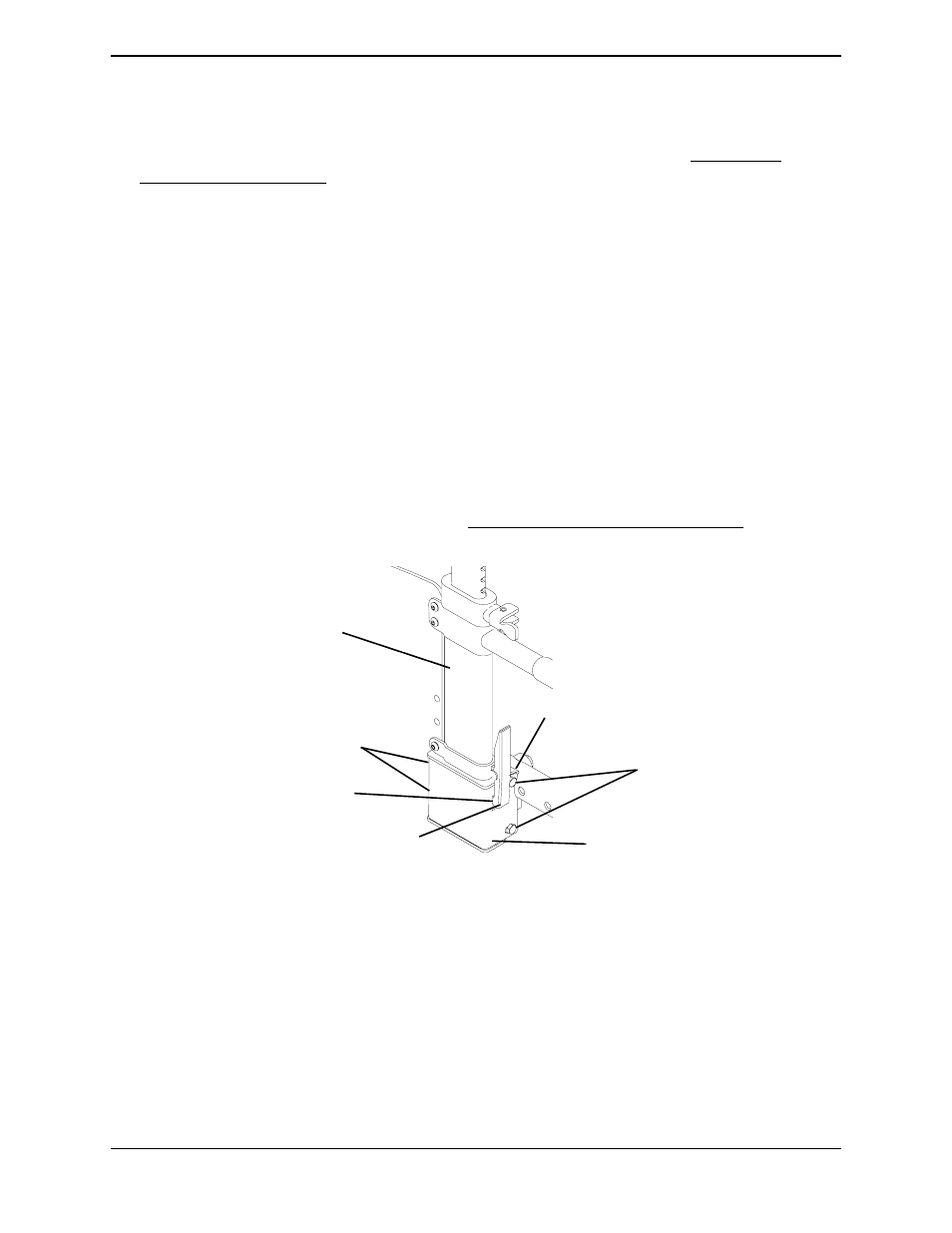

FIGURE 7.9 Adjusting T-Arm Sockets
Locking Lever
T-Arm Clamp
Hex Screws and Washer
T-Arm
Slot
T-Arm Socket
Hex Screws and
Washers
