Tilt link and front support bracket – Invacare ESS-PTO User Manual
Page 16

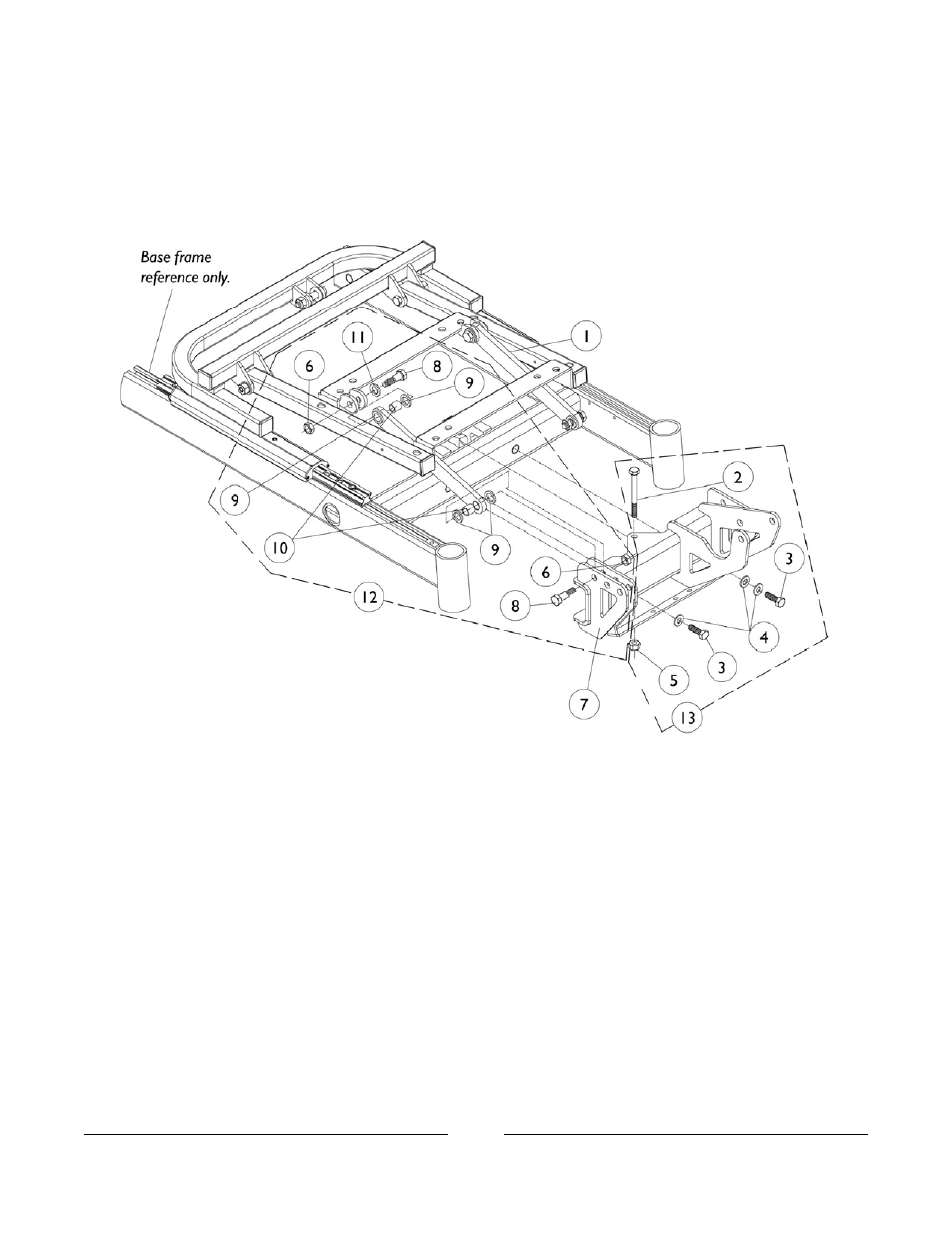

Tilt Link and Front Support Bracket
NOTE: The front actuator support bracket for a power elevating seat is located under the seat plate
assembly page.
NOTE: Tilt link mounting hardware is the same for a power tilt only and a power elevating seat.
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 01-038
